- 25 -

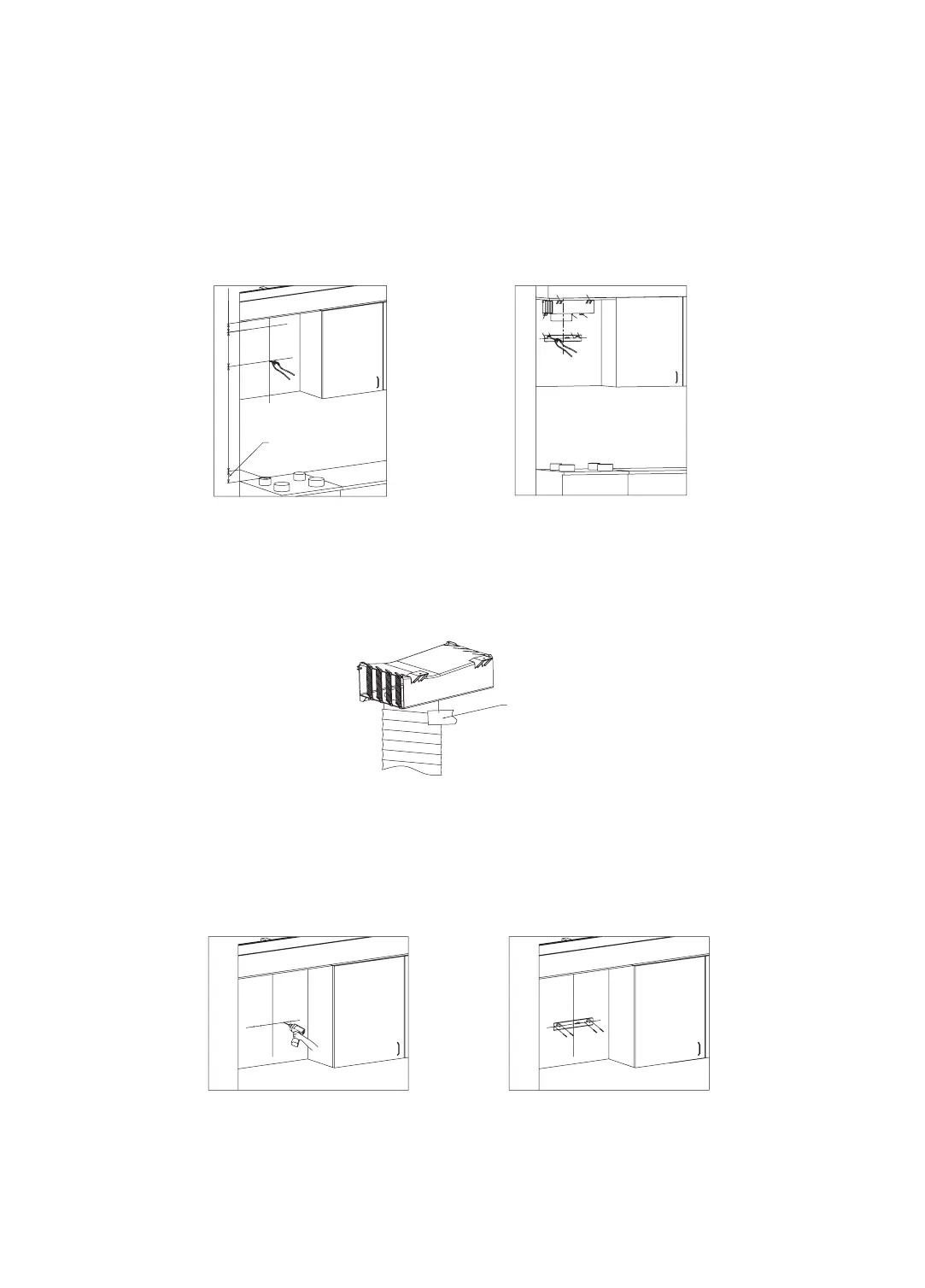

3. Conrm the position used to x the hook of main body and wind-guide box: rst, draw a vertical center
line at the center point where the range hood to be installed, then take the supporting surface of the
cooking utensils on the stove as the reference point, accurately determine the installation position of
the hook of main body and wind-guide box on the solid wall, and make a punch mark.
The hook size of the main body is 1132mm-1182mm from the supporting surface of cooking utensils
on the stove to the bolt hole of the hook.
The size of the wind-guide box: the top surface of the wind-guide box shall be installed close to the
ceiling, the screw hole at the lower end of the wind-guide box shall be 118mm from the ceiling, and
the screw hole from the screw hole of hook of main body to the screw hole at the lower end of the
wind-guide box shall be ensured to be within the range of 211mm-341mm;
Distance from the
supporting surface of
cooking utensils on the
stove to the countertop
118
①② ③④
a
b
c
ed
211~341
1132~1182
Note: If ceramic tile, marble or glass and other decorative plates are found to protrude from the
mounting surface of the hook, please refer to Point 13 of “Installation Precautions” in P17 for
operation.
4. Fix the exhaust duct on the wind-guide box with sealing tape;
Foil tape
5. Fix the hook of main body:
1) Ceramic tile (marble) at the drilling mark: drill φ 8mm hole at the drilling mark with electric drill,
then embed the ceramic tile expansion tube (5.3 × 32mm), x the hook with the hook screw (ST4.2
× 36mm), and make sure the hook is level with a level bar.
2) Gypsum board at the drilling mark: screw the gypsum board expansion tube (4 × 40mm) directly
into the wall surface with a screwdriver at the drilling mark, then x the hook with the hook screw
(ST4.2 × 36mm), and use a spirit level to make sure the hook is level.
Note: After cleaning with strong acid/alkali detergent or dish washing powder, it may cause the change
of color of the front lter screen, but it does not affect the use.
