B
OUTSIDE BACK EXHAUST
(Horizontal Duct)
INSTALLATION OVERVIEW

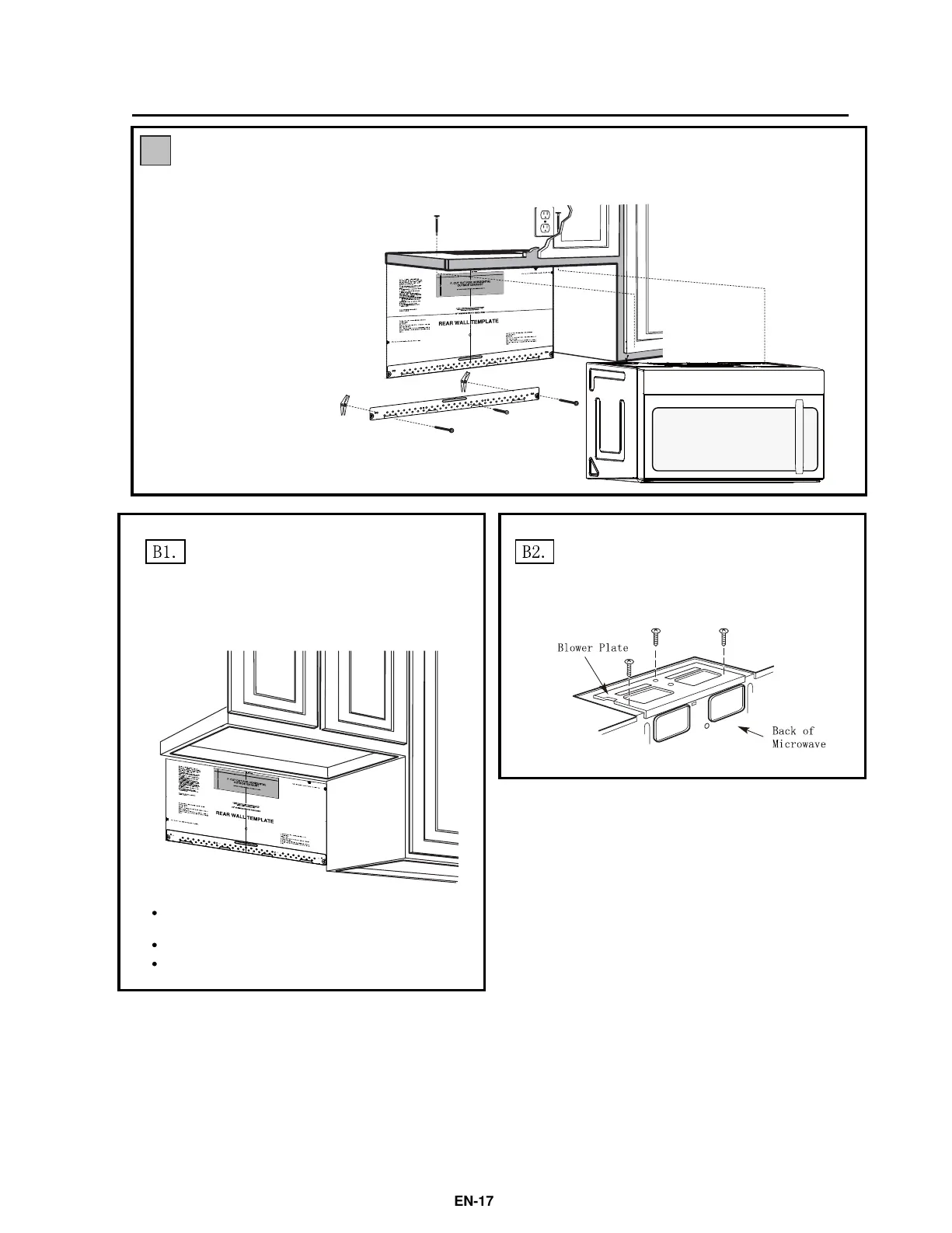

B1. Prepare Rear Wall
B2. Remove Blower Plate
B3. Attach Mounting Plate to Wall
B4. Prepare Top Cabinet
B5. Adjust Blower
B6. Mount the Microwave Oven
IMPORTANT NOTES
• Make sure the screws for the
blower motor and blower plate
are securely tightened when they
are reinstalled. This will help pre-
vent excessive vibration.
•Make sure the motor wiring has
been properly routed and se-
cured and that the wires are not
pinched.
PREPARING THE REAR WALL
FOR OUTSIDE BACK EXHAUST
You need to cut an opening in the rear wall
for outside exhaust.
REMOVE BLOWER PLATE
Remove and save the screw that holds the blower
plate to the microwave. Lift off the blower plate.
Read the instructions on the REAR WALL TEMPLATE.
Tape it to the rear wall.
Cut the opening, following the instructions of the
REAR WALL TEMPLATE.
EN-17
