32 FZR4P, FZR5P and FZR5PLP-T Undercounter Freezers

Controller Replacement

1. Open the door using the keypad lock and prop the door open,

so it doesn’t close during the battery installation. Reference the

keypad lock instructions in the service manual on page 11.

2. Turn power switch to the OFF position or unplug the unit from

the power supply.

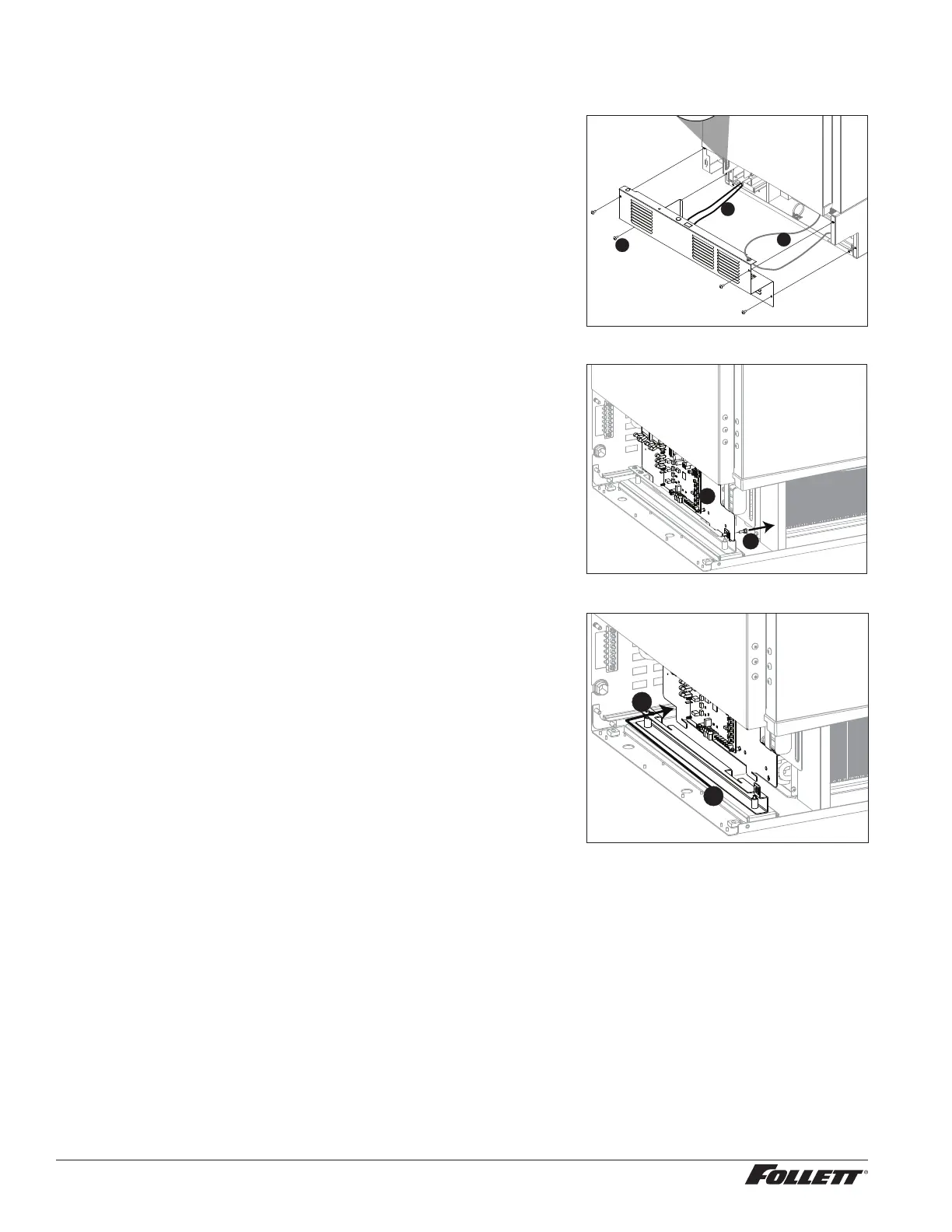

3. Remove the four screws (Fig. 48.1) on the kick panel at the

bottom of the unit.

4. Remove the kick panel and slide the panel to the right of the

freezer.

Note: Take care when removing, some wires are connected to the

kick panel (Fig. 48.2).

Fig. 48

1

2

2

3

5. Find the control module on the left-hand side of the unit, just to

the left of the condenser.

6. Remove the thumb nut (Fig. 49.1) on the bottom front of the

control module (Fig.49.2).

Fig. 49

7. Using the handle at the front of the control module, push the

control module back (Fig. 50.1) until the stop is felt.

8. Tilt the top of the module to the right to free the top of the

module from the restraining screw.

9. Slide the module to the right (Fig. 50.2) to free the module

bottom clips from the channel and pull module forward.

Fig. 50

1

2

1

2
