STANDARD NICHE WIDTH
MINIMUM NICHE WIDTH WITH
PORTAL
S899: 900 (35 1/2”) S899: 903 (35 3/8”)
S749: 750 (29 5/8”) S749: 753 (29 3/4”)
S599: 600 (23 3/4”) S599: 603 (23 7/8”)

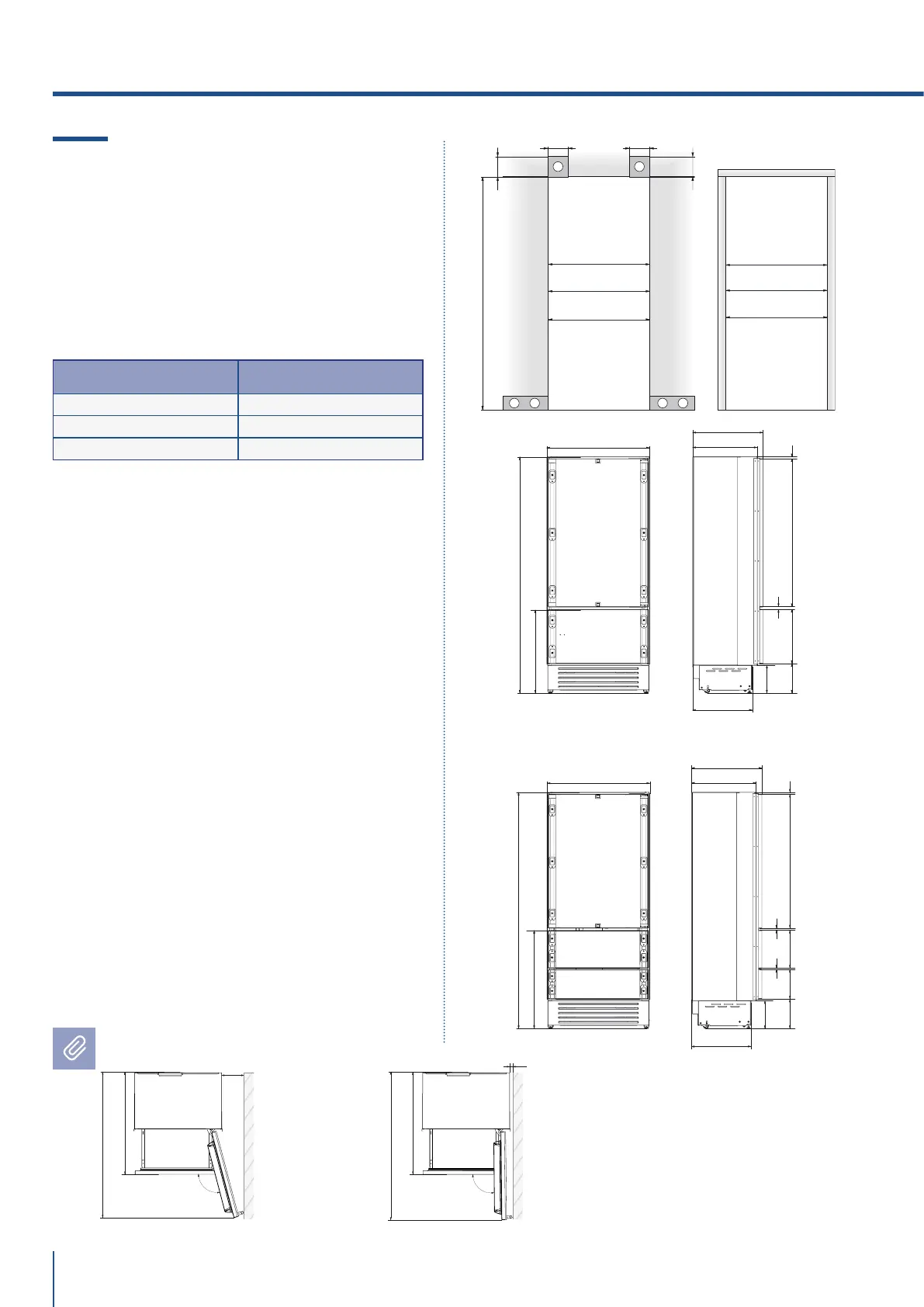

2.2 Installation niche features:
Integrated Series, 1T - 0T - 0H
Models
A - area to be left clear for the anti-tipping brackets
E - area to be left clear for the power supply cable
W - and water supply hose
Minimum Niche Height
2064 mm (81 1/4”)
Minimum Niche Depth
650 mm (25 5/8”)
Door Swing Clearance
S899: 1485 mm (58 1/2”)
S749: 1335 mm (52 5/8”)
S599: 1185 mm (46 5/8”)
Door Opening Angle
105°
Width
*
S899: 899 mm (35 3/8”)
S749: 749 mm (29 1/2”)
S599: 599 mm (23 5/8”)
Height
2050 mm (80 3/4”) + 25 mm (1”)
Depth with door (without panel)
610 mm (24”)
Minimum distance from the wall (hinge side)
with door at 105° and 90°, with 18mm (3/4”)
panel and handle h=58mm (2 1/4”).
S899: 220 mm (8 5/8”)
S749: 185 mm (7 1/4”)
S599: 150 mm (5 1/2”)
Dimensions in parentheses are in inches.
2. TECHNICAL REQUIREMENTS
105°
992 (39”)
560 (22”)
610 (24”)
S899: 899 (35 ⅜”)
S749: 749 (29 ½”)
S599: 599 (23 ⅝”)
10 (⅜”)
S899: 220 (8 ⅝”)
S749: 185 (7 ¼”)
S599: 150 (5 ½”)
90°
992 (39”)
S899: 1485 (58 ½”)
S749: 1335 (52 ⅝”)
S599: 1185 (46 ⅝”)
15 (¼”)
S899: 1485 (58 ½”)
S749: 1335 (52 ⅝”)
S599: 1185 (46 ⅝”)
105
°
992 (39”)
S749: 185 (7 ¼”)
90
°
992 (39”)
S749: 1335 (52 ⅝”)
15 (¼”)
S749: 1335 (52 ⅝”)
610 (24”)
560 (22”)
1293 (50 ⅞” )
474
(18 ⅝”)
231 (9
⅛”
) +
25 (1”)
517 (20 ⅜”)
248 (9
¾”
)
+ 25 (1”)
20 (¾”)
15 (⅝”)
721 (28 ⅜”) +25 (1”)
2050 (80 ¾”) +25 (1”)
1T/0T
*
2050 (80 ¾”) +25 (1”)
846 (33 ¼”) +25 (1”)
0H
*
610 (24”)
560 (22”)
517 (20 ⅜”)
231 (9
⅛”
) +
25 (1”)
248 (9
¾”
)
+ 25 (1”)
15 (⅝”)
20 (¾”)10 (⅜”)
1168(46”)
330
(13”)
259
(10
¼”
)
min 2064 (81 ¼”)
A A
E W E W
140 (5 ½”)140 (5 ½”)
100 (4”)
100 (4”)
S899: 900 (35 ½”)
S599: 600 (23 ¾”)
S749: 750 (29 ⅝”)
S899: 903 (35 ⅝”)
S599: 603 (23 ¾”)
S749: 753 (29 ¾”)
min 2064 (81 ¼”)
A A
E W E W
140 (5 ½”)140 (5 ½”)
100 (4”)
100 (4”)
S899: 900 (35 ½”)
min 2064 (81 ¼”)
A A
E W E W
140 (5 ½”)140 (5 ½”)
100 (4”)
100 (4”)
S749: 750 (29 ⅝”)
min 2064 (81 ¼”)
A A
E W E W
140 (5 ½”)140 (5 ½”)
100 (4”)
100 (4”)
S599: 600 (23 ¾”)
