72

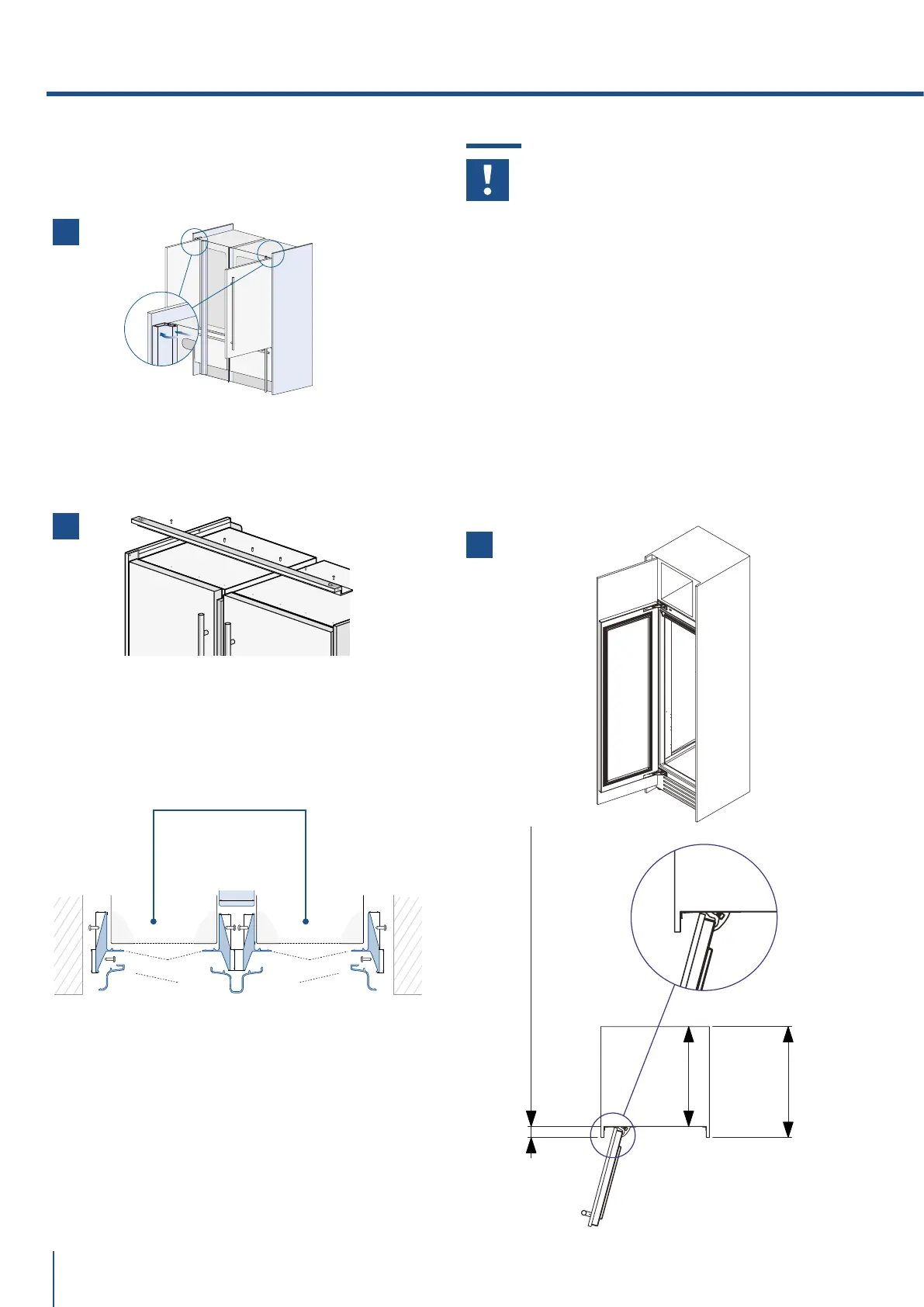

> Attach the aluminum cover [ 6 ] to each side pro-
file, pressing onto them until they ‘click’ together.
> Mount the top panel [ 7 ] on top of the unit, using
the screws provided with the kit.
> Adjust the height of the unit with the leveling feet
and the back wheels.
Side panels and central profile mounting
A - Side connection profile in PVC.
B - Aluminum cover frame
C - Central covering frame in aluminum
5.4 Maximum cabinet depth over
“Integrated” refrigerator with
single door panel
It is possible that the design of the kitchen and,
in particular, of the niche where the “Integrated”
refrigerator is going to be fitted includes a cabinet
right above the refrigerator itself that must be
closed with the same panel mounted on the
Integrated refrigerator door.”
In this case, the total depth of the cabinet without
the door (above the refrigerator) must not exceed
the total depth of the refrigerator itself [ 1 ].
This will allow the panel attached to the refrigerator
door to open correctly without interference during
its rotation up to 105°.
1
5. INSTALLATION
Appliance
585 (23”)
650 (25 ⅝”)
47 (1 ⅞”) + front panel thickness
B
B
AA
C
6,5 (¼”)
6,5 (¼”)6,5 (¼”)
6,5 (¼”)
20 (¾”)
20 (¾”)
18 (¾”)
13 (½”)
6
7
