Side and central profiles mounting:
A - Side connection profile in PVC.
B - Aluminum cover frame
C - Central covering frame in aluminum
5.3 Free-standing installation
two or more appliances
Required accessories to be ordered separately:
> Central Connection Kit (KCC)
> Freestanding Kit
Aluminium profiles can be used to close the spaces
between the appliance and adjacent structures.

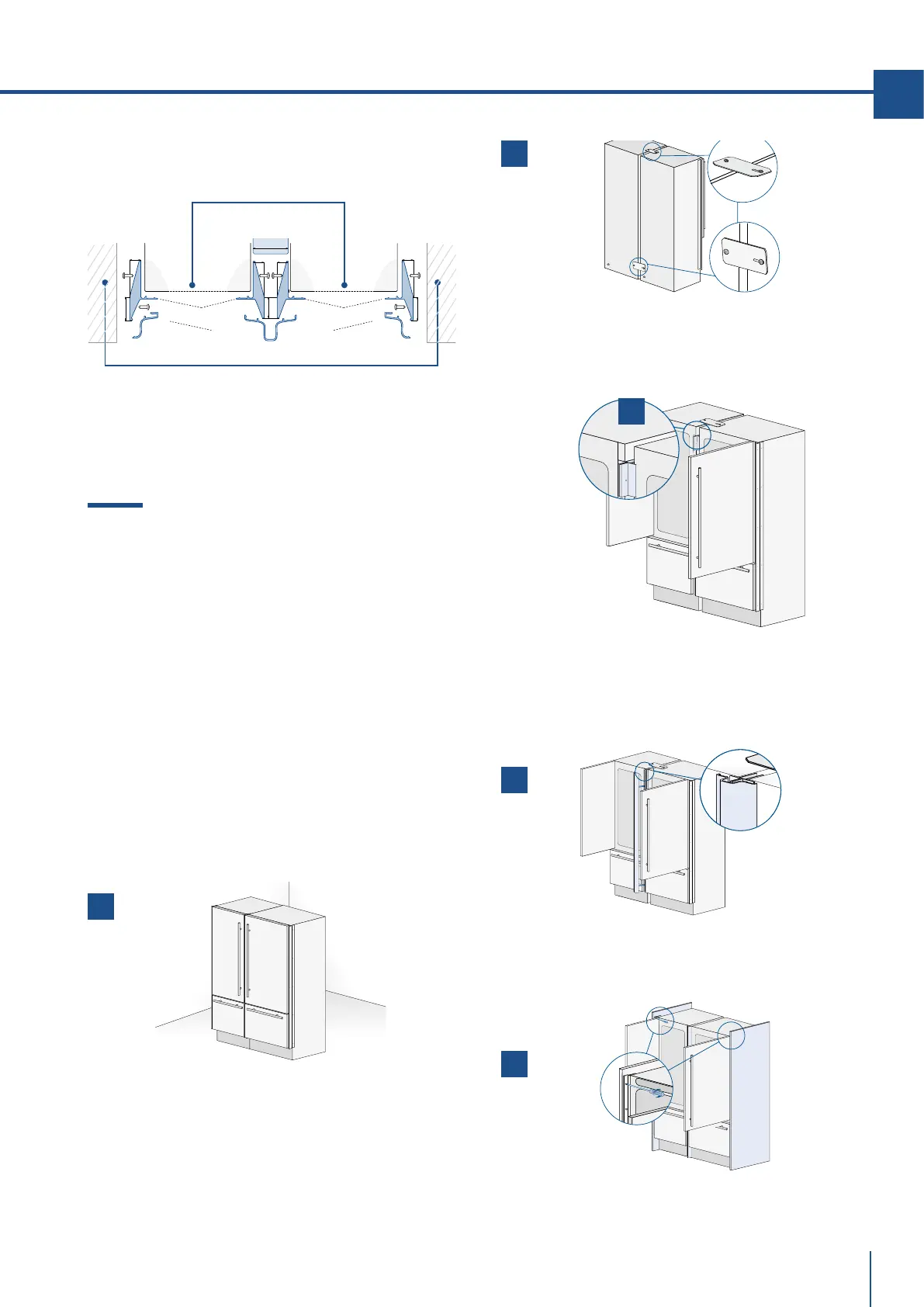

Operate as follows:
> Position the appliances in front of the installation
area, leaving enough space to operate at their back.
> Peel o the self adhesive protection and apply the
insulated anticondensation panel to the side of one
appliance [ 1 ].
> Move at the back of the appliances to mount the
joining brackets: fix one side of the top and lower
brackets to one of the appliances and subsequently
to the other [ 2 ].
> Place the two units side by side and join them at
the front attaching the two profi les with the supplied
screws [ 3 ].
> Finish o by mounting the central cover frame
onto the central profiles, by pushing it until a click
is heard [ 4 ].
> Attach the side panels to the unit, mounting them
on the side profiles [ 6 ]
Appliance
Wall or furniture
B
B
AA
C
6,5 (¼”)
6,5 (¼”)6,5 (¼”)
6,5 (¼”)
20 (¾”)
20 (¾”)
18 (¾”)
13 (½”)
5
4
2
1
3
