Festo — PDAD — 2022-02i
Assembly
17
Multi-way distributor after rotating
1
2

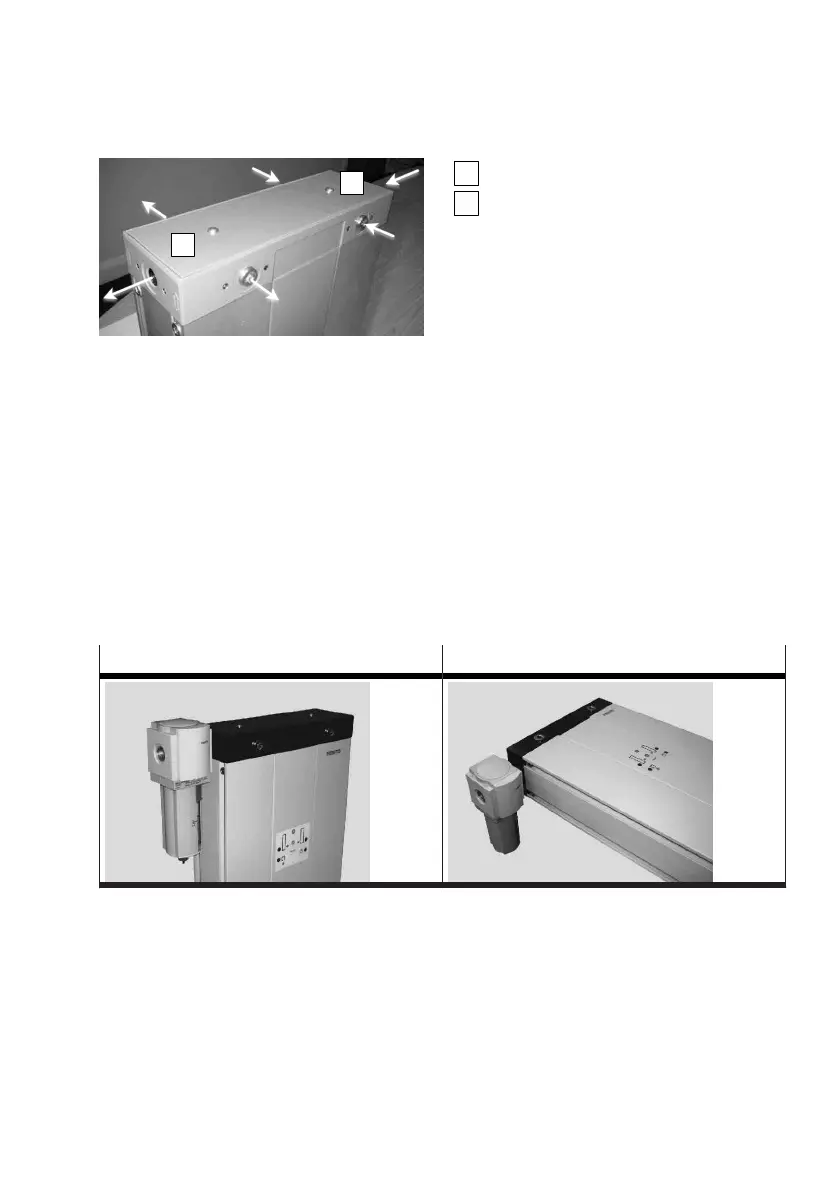

Fig. 6: Position of the connections after rotating
the multi-way distributor
1
Inlet
2
Outlet
5.2 Assembly
5.2.1 Mount micro filter
The included MS6-LFM micro filter must be installed at the input of the dryer to protect the drying
agent from contaminated compressed air. In the delivery status the three input ports are on the left
side of the dryer. If the input is required on the right side, the multi-way distributor in the cover of the
dryer must be rotated
è
5.1 Ports for input and output.
Note on mounting position
The micro filter MS6-LFM must always be installed in a vertical position regardless of the mounting
position of the dryer (± 5°). There must be sufficient space under the filter bowl (≥ 100 mm). If installed
in a horizontal position, the dryer must be supported with suitable material.
Vertical Horizontal
Tab. 10: Permitted mounting positions
