Festo — PDAD — 2022-02i
Installation
23

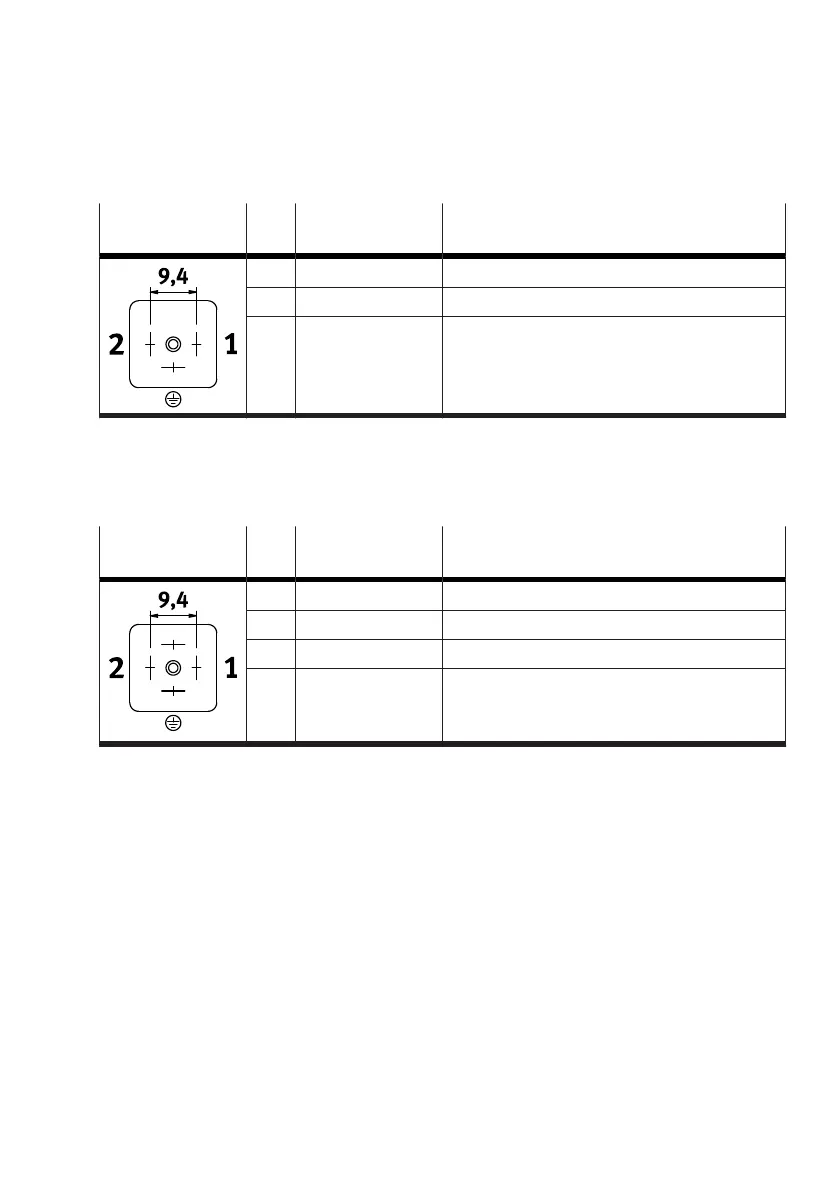

Top power connection, alternating current (AC)
The top plug on the device allows AC power to be supplied.
Voltage range: 100 … 240 V AC
Power supply plug
on the device
Pin Function Description
1 Phase Mains supply phase
2 N Mains supply neutral conductor
PE Not connected. The device is double insulated and therefore
does not require earthing (protection class II).
Tab. 16: Alternating current (AC) power connection on the device
Lower power connection, direct current (DC)
The lower plug on the device allows direct current to be supplied.
Voltage range: 12 … 24 V DC
Power supply plug
on the device
Pin Function Description
1 + 24 V DC Positive potential power supply 12 … 24 V DC
2 0 V Reference potential for the power supply
3 – reserved, do not connect
PE n. c. Not connected.
The device is double insulated and therefore
does not require earthing (protection class II).
Tab. 17: Power connection for direct current (DC) on the device
