Festo — PDAD — 2022-02i

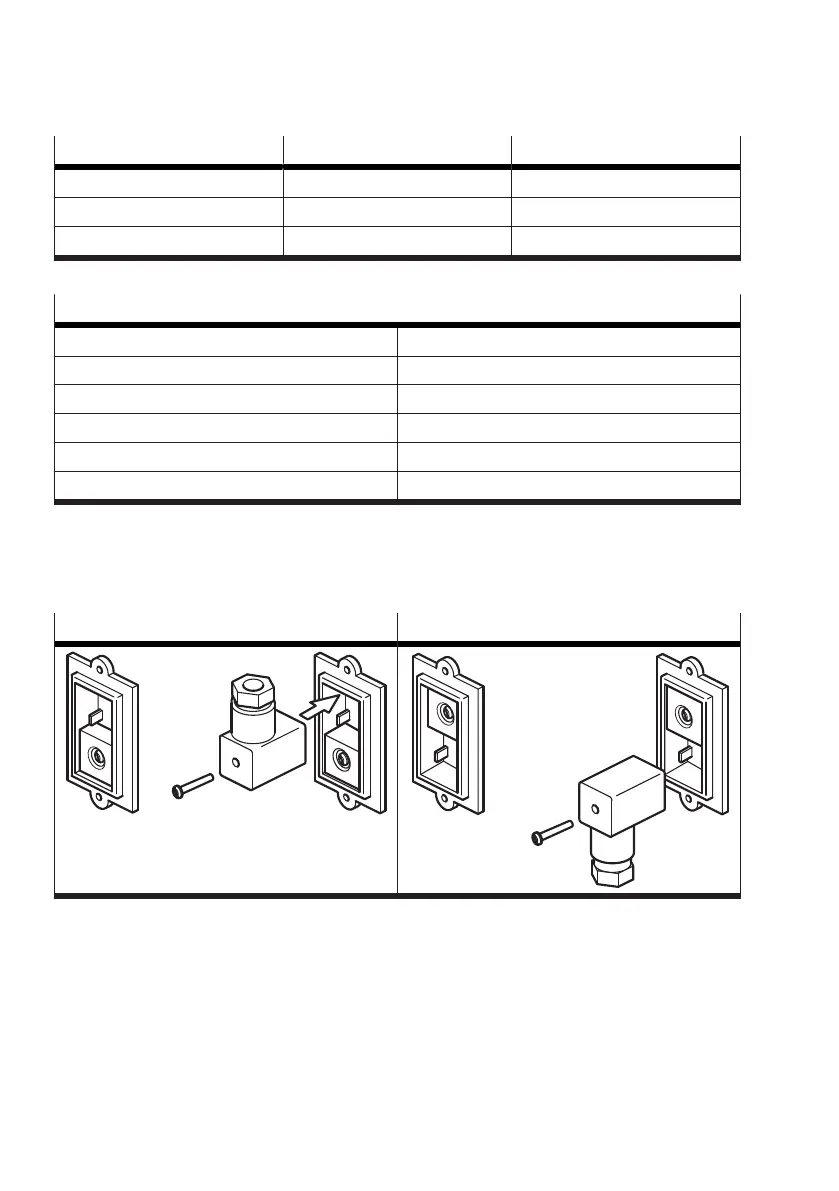

Installation
Characteristics AC power supply socket DC power supply socket
Identification (flag) 110-230 V AC 2-24 V DC
Colour black grey
Number of contacts 3 4
Tab. 13: Characteristics of the power supply socket
Requirement for the connecting cable
Number of cores 2
Approved cable diameter 6 … 8 mm
Cable shield unshielded
Min. cable cross section 0.75 mm²
Max. conductor cross section 18 AWG
Max. length 3 metres
Tab. 14: Requirement for the connecting cable
Selecting the right power connection
Only one power source may be connected. The unused power connection must be closed with the
cover.
Alternating current (AC) power connection Power connection for direct current (DC)
Tab. 15: Alternate power connections (use only one connection at a time)
The connection for the supply voltage on the PDAD-100 is located under the rear covering.
