6
Festo — EPCE-TB — 2023-11d
Product overview
5.2.1 Product design
1 2 3 4
5
6
7
8

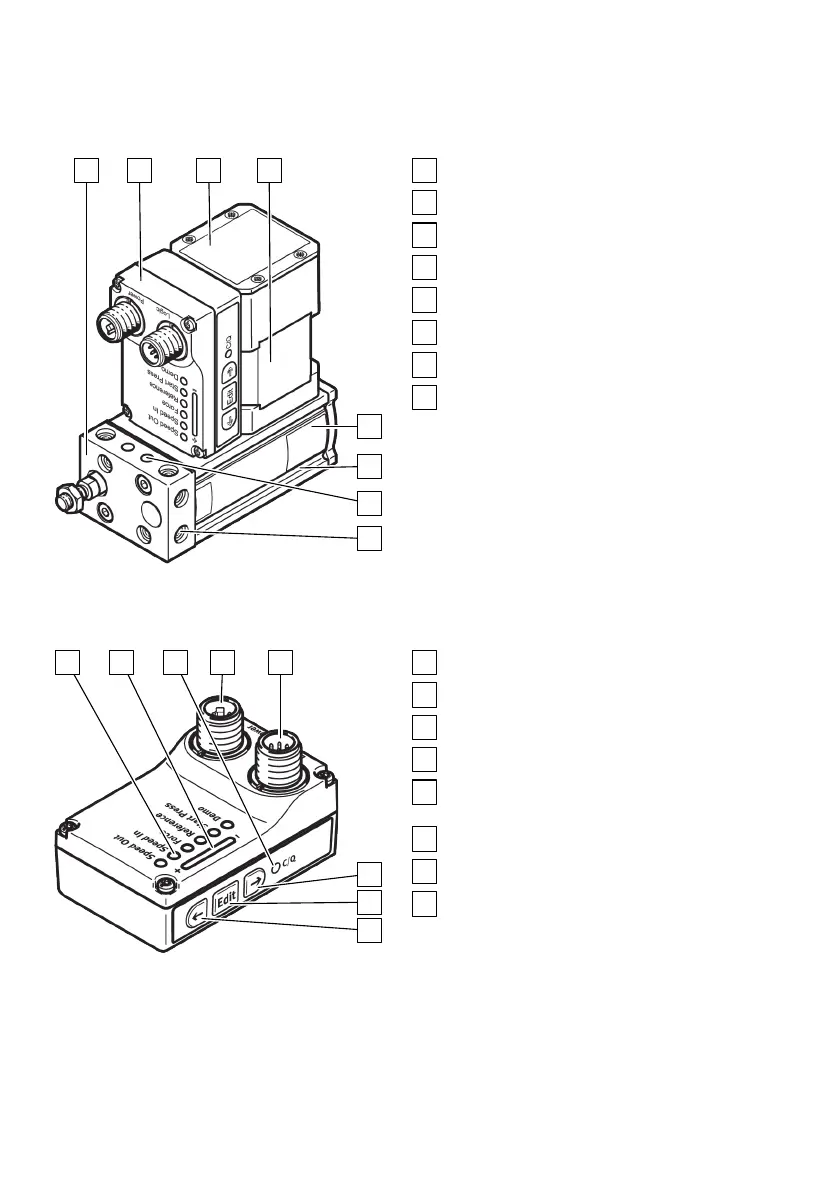

Fig. 2: Product design EPCE-TB, example
EPCE-...-MF
1
Electric cylinder unit EPCE-TB
2
Controller housing
3
Warning symbol "Attention! Hot surface"
4
Integrated drive EMCS-ST
5
Product labelling
6
Slot for profile mounting
7
Through-hole for direct fastening
8
Thread and centre hole for direct fastening
Electrical connections, display elements and HMI control elements
1 2 3 4 5
6
7
8
Fig. 3: Electrical connections, display elements
and HMI control elements
1
LED display menu (Speed Out, ..., Demo)
2
LED parameter display
3
LED C/Q
4
Load voltage connection [Power]
5
Logic voltage connection and digital I/O or
IO-Link connections [Logic]
6
Pushbutton actuator (right arrow)
7
Pushbutton actuator (Edit)
8
Pushbutton actuator (left arrow)
5.3
Function
The electric cylinder unit converts the rotary motion of the mounted motor into a linear motion of
the piston rod. The toothed belt drive converts the torque of the motor into a feed force. The linear
movement of the piston rod is guided by the guide in the blanking plate.
