Festo — EPCE-TB — 2023-11d

Assembly

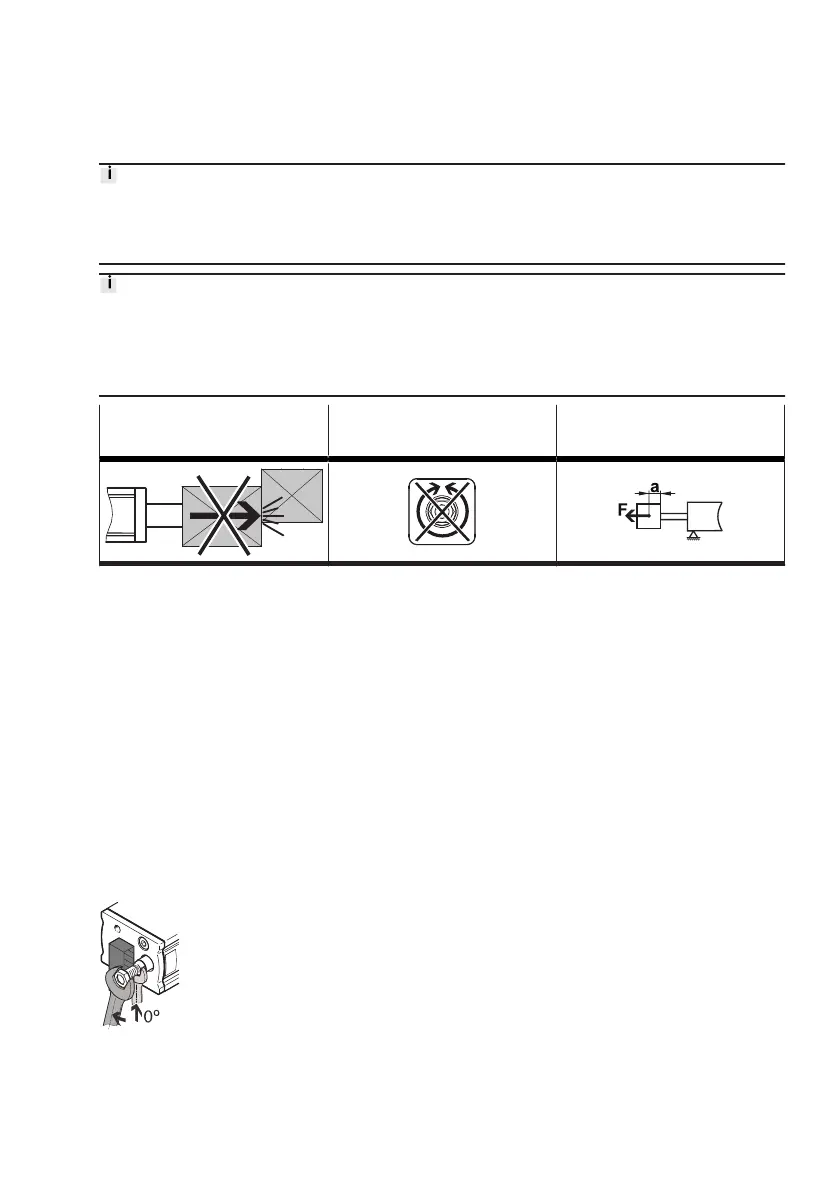

7.4 Mounting the attachment component

Torque on the Piston Rod

During commissioning and operation, the piston rod may only be operated without torque.

If external torques occur, an external guide must be used.

Mounting the attachment component on the piston rod

When mounting the attachment component do not exceed the max. torque of the piston rod. The max.

torque of the piston rod may only be used for a short time during mounting

Tab. 6 Information on

attachment components.

Collision-free Torque-free Centre of gravity and tilting

moment

Tab. 4: Requirement for attachment component

Requirement

–

No collision in the range of motion of the attachment component with mounting components.

–

No transverse load or torque on the piston rod.

Absorb external forces and torques via an external guide.

– Position of the centre of gravity and tilting moment (forceF parallel to the axis of movement) of the

attachment component centred and close to the piston rod (short lever arma).

1. Select accessories

www.festo.com/catalogue.

Screw the lock nut onto the male thread of the piston rod or attachment component.

Rotate or place the attachment component on the piston rod.

4. Tighten lock nut.

The tightening torque must not act on the piston rod. Counterhold with a suitable tool on the

spanner flat of the piston rod.

Observe maximum tightening torque. The piston rod must not be turned.

Fig. 4: Torque-free mounting
