8
Festo — EPCE-TB — 2023-11d
Assembly
Profile mounting
EAHF-L2
Direct fastening
EPCE, standard EPCE-...-MB/-MD/-MF, Multimount
Mounting via profile
groove
Mounting via thread Mounting via thread Mounting via through-
hole

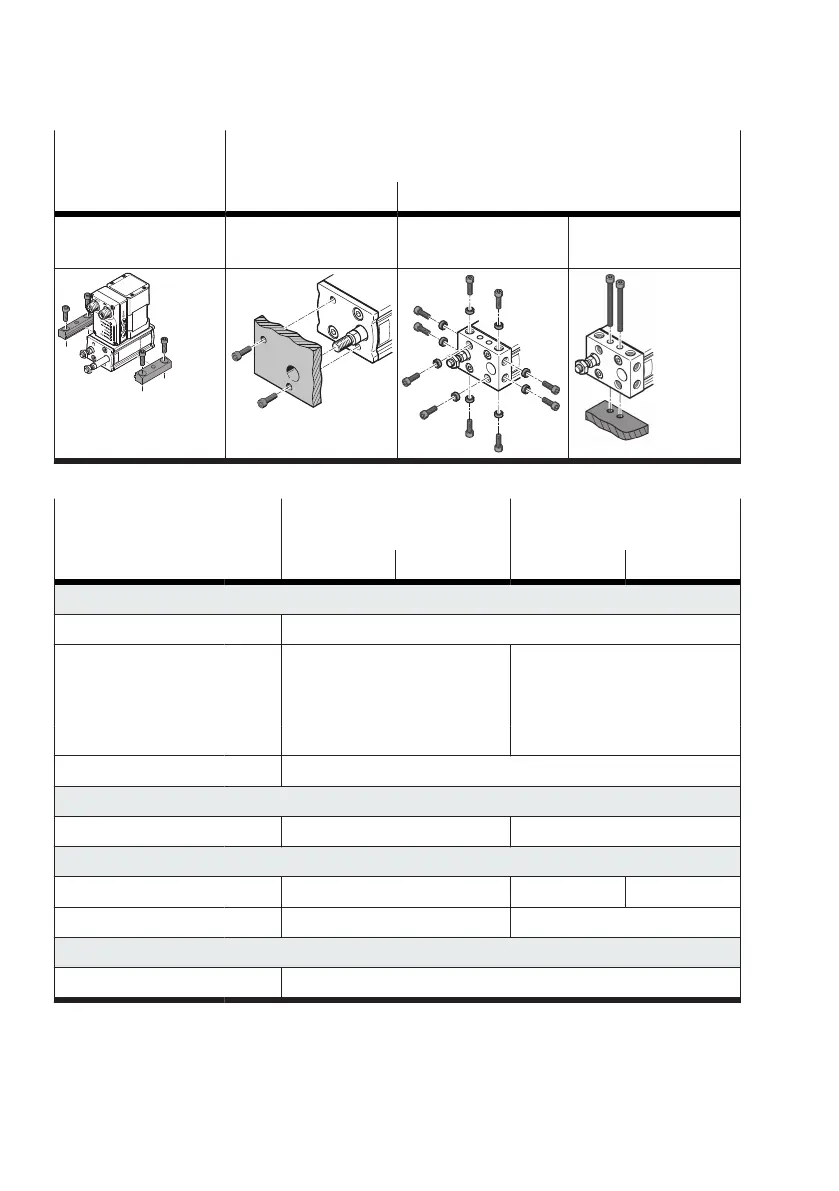

Tab. 2: Overview of mounting components
EPCE, standard EPCE-...-MB/-MD/-MF,
Multimount
Size 45 60 45 60
Direct fastening via thread
Screw M4
Max. screw-in
deptht
max
[mm]
front, rear 15 14
top, bottom, left, right – 8
Max. tightening torque [Nm] 2.9
Centring (bore tolerance H7)
Centring sleeve [mm] – Æ7
Direct fastening via through-hole
Hole length [mm] – 34.6 38.6
Hole diameter [mm] – 4.5
Profile mounting EAHF-L2
Screw Instruction manual
è
www.festo.com/sp
Tab. 3: Information on mounting attachments
