Festo — ELGS-BS — 2023-11e
Installation
9

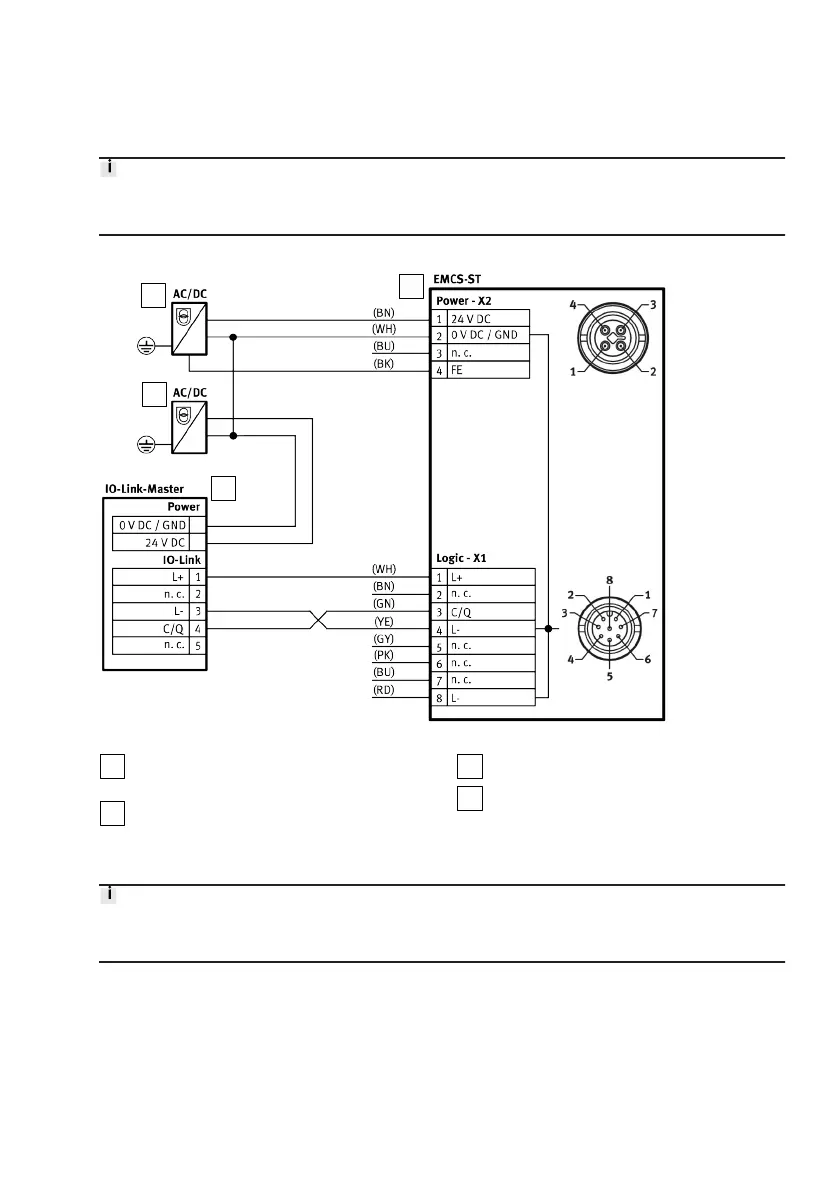

Wiring diagram: IO-Link operation
Current consumption of IO-Link power supply [Logic]
An input current at pin 1 (L+) of 100...150mA is required for operation.
Connecting IO-Link directly to the master
1
3
4
2
Fig. 6: Wiring diagram: IO-Link operation
1
PELV fixed power supply for the load
voltage supply
2
PELV fixed power supply for the logic power
supply
3
Integrated drive EMCS-ST
4
IO-Link master with IO-Link interface, port
class A
Connecting IO-Link IO-Link to the master via adapter NEFC
Adapter NEFC up to production date 2021
Adapters NEFC up to production date 2021 can only be used for IO-Link masters with port class A.
