Festo — ELGS-BS — 2023-11e

Malfunctions

11 Malfunctions

Acknowledge error

With error acknowledgment, active error messages are deleted from the diagnostic memory if the

cause of the error was remedied before acknowledgment.

Errors can be acknowledged via the following interfaces:

–

Restart:

– Logic voltage L

, Power OFF/ON [Logic, Pin 1]

–

HMI:

–

Press and hold for3s

– DIO, digital inputs:

– DI1 "Mov

" and DI2 "Mov

Out

" =1 [Logic, Pin 5/6]

–

IO-Link, device data:

– 0x0107.0 Quit Error =true

– IO-Link, process data:

–

0x0029.3 Quit Error =true

– 0x0029.1 and 0x0029.2 =true, 0x0029.5 =any

Diagnostic messages and fault clearance

"Information, Warnings and Errors" diagnostic messages are displayed by the C/Q LED and menu and

parameters LED displays.

Errors are reported to the controller as follows:

–

DIO operation: output signals DO1 and DO2 = 1 [Logic, Pin 2/3]

–

IO-Link operation: ProcessDataInput state "In" (0x0028.1) and state "Out" (0x0028.2) = true

The first error that occurred is always displayed.

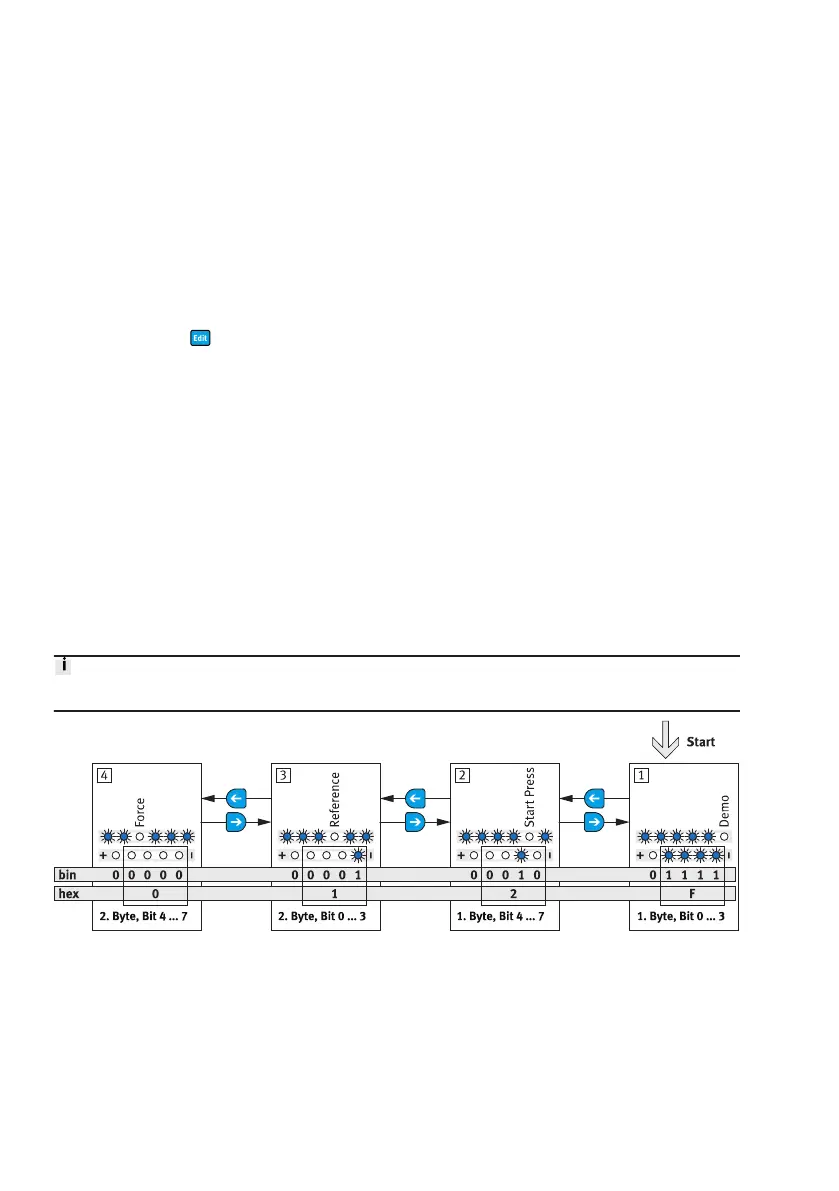

Fig. 9: Display of diagnostic messages (example)
