Mode of operation

The 3-position enabling switch can be in one of three different switch positions:

Switch setting Function 3-position enabling

switch

Switch contact

1 Neutral position not actuated Off (opened)

2 Enabling is actuated On (closed)

3 Panic is pressed Off (opened)

Tab. 8 Mode of operation of the 3-position enabling switch

Normal actuation

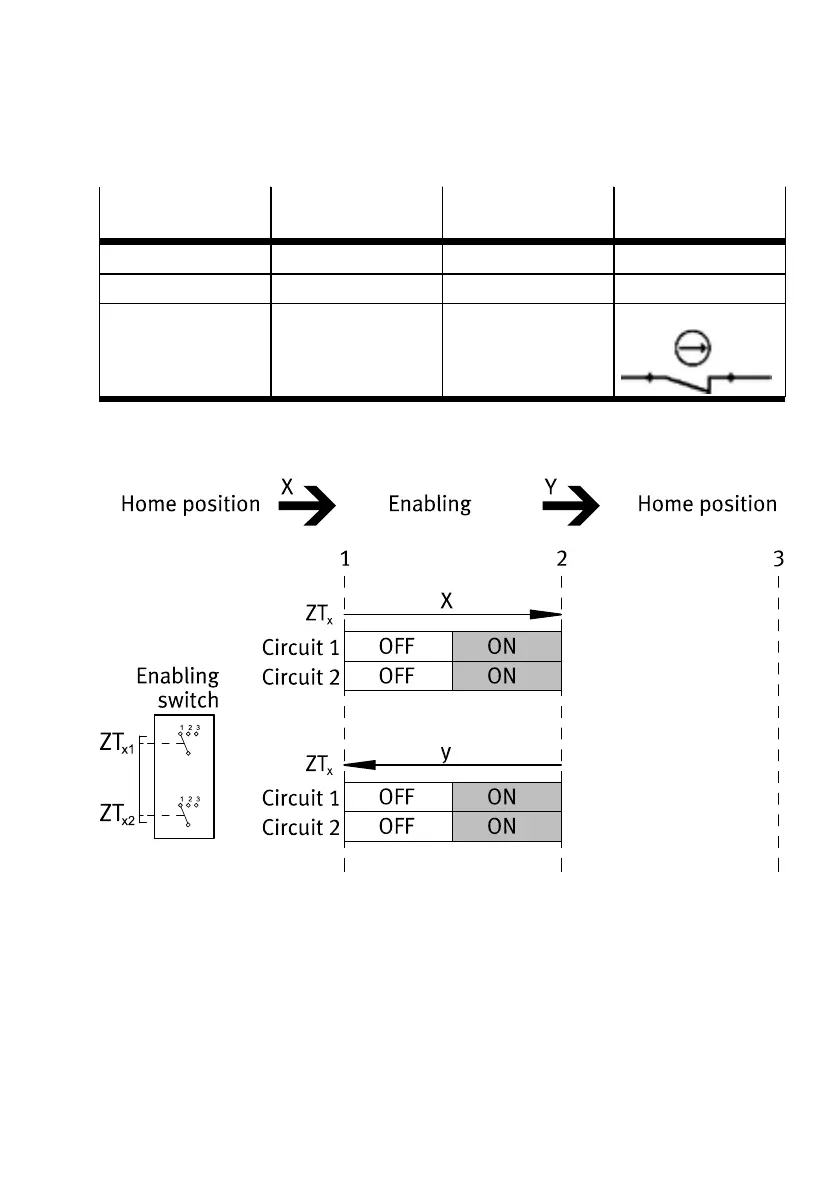

Fig. 5 Switching path diagram for normal actuation

Product overview

17Festo — CDSA-D3-RV — 2020-08
