10

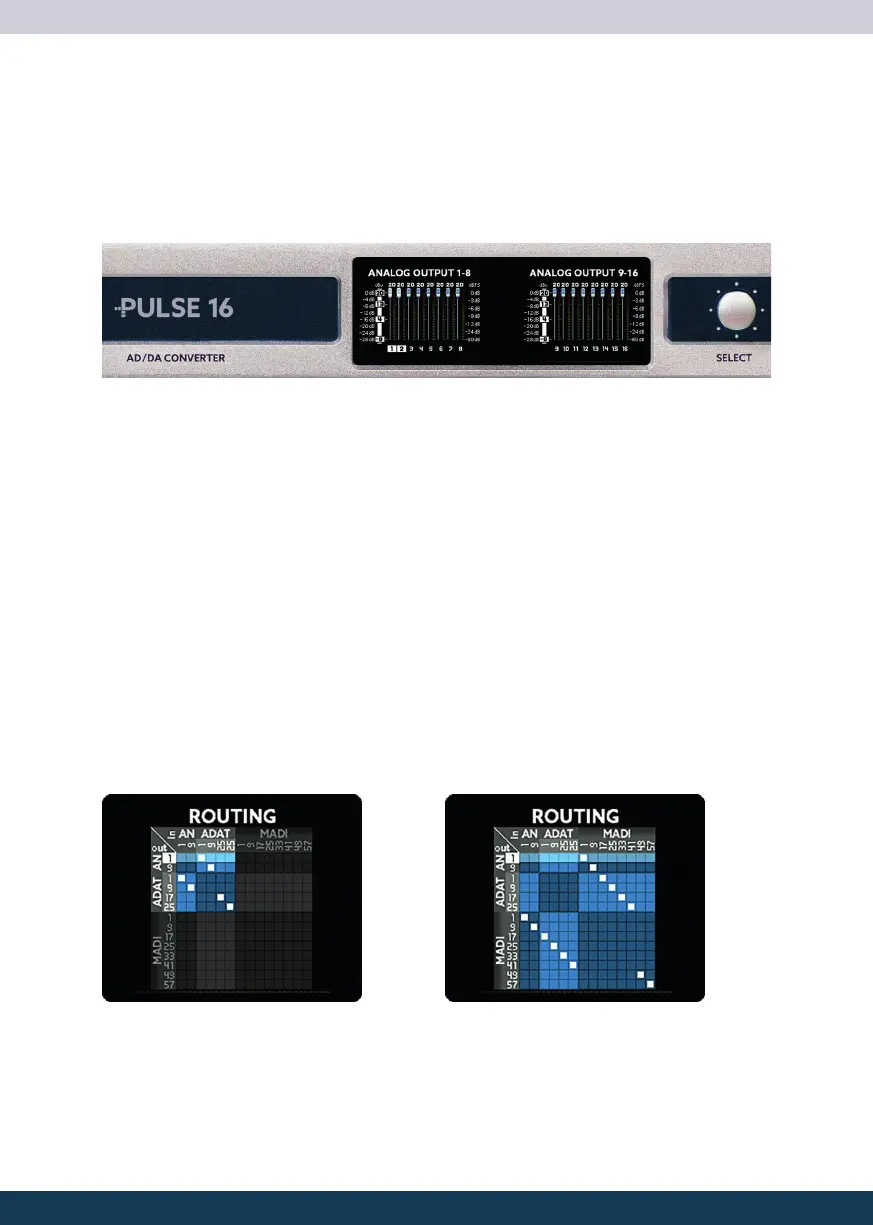

Main Menu – LEVELS
The LEVELS screen is similar to the GAINS screen described before. Same as with the
inputs also the outputs can be adjusted in 1dB steps between -8dBu to +20dBu.
The dB scale on the right side shows the resolution of the metering levels.
This scale does not show the level value of the fader!
The number above the fader shows the maximum level in dBu, which the output is able
to give out. When the fader is set to 20 like shown in the picture above, the output of a
digital signal with 0dBFS will be +20dBu on the analog output.
Main Menu – ROUTING
The PULSE16 offers an intuitive routing matrix. This matrix is shown as a grid inside the
ROUTING menu. The inputs are shown in the columns, while the rows represent the
outputs. A solid square between these lines indicates a connection. The routing is done
in channel blocks of eight channels.
Routing Screen Pulse16 Routing Screen Pulse16 MX
