13
Main Menu – SETUP
In the SETUP menu the following settings can be done:

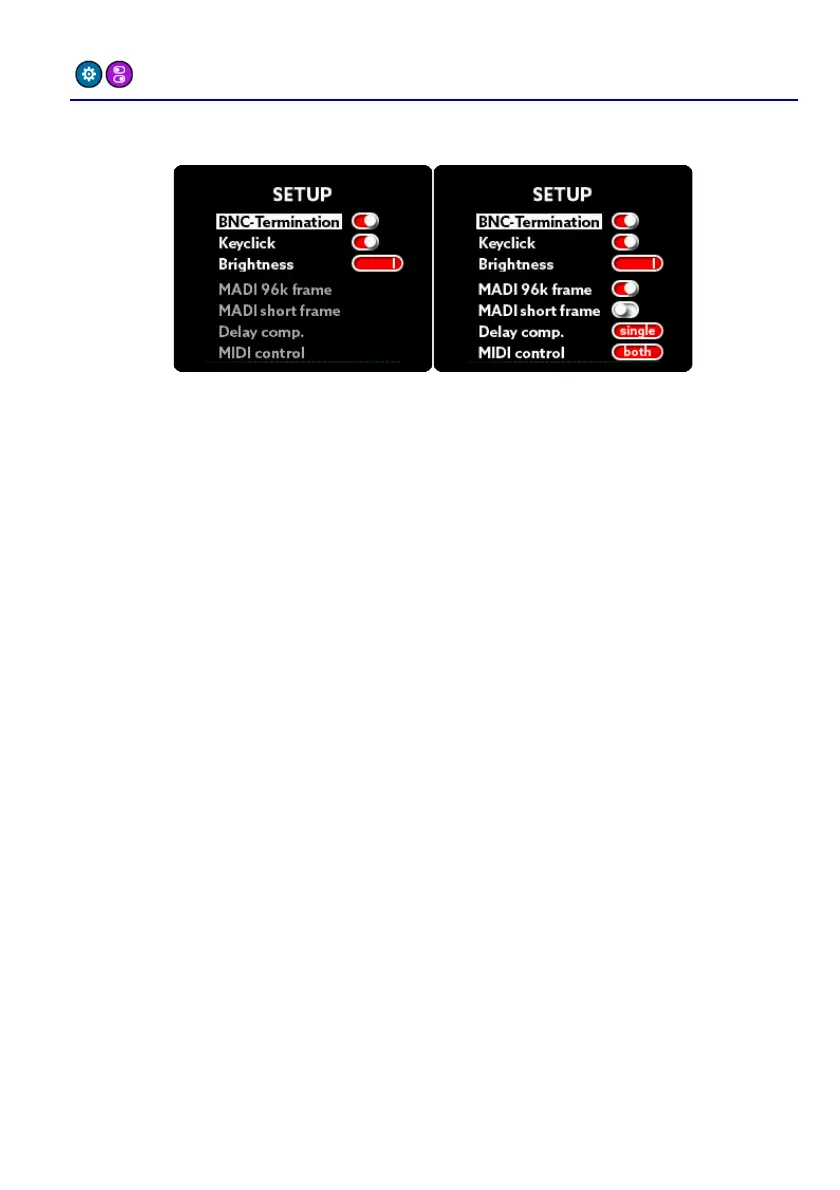

Setup Screen PULSE16 (left) and PULSE16 MX (right)
BNC Termination
The PULSE16 wordclock is terminated internally by default with a 75 ohms
resistor. When daisy-chaining the wordclock of several units, you should
leave this option set to ON. If you’re using T-connectors for connecting
several units, set this option to OFF.
Keyclick
Let’s you switch the Keyclick sound on or off.
Brightness
Here you can set the brightness of the displays. In case the PULSE16 is not
operated the display will be dimmed after some seconds.
MADI 96k frame (MX or MADI option only)
When using the SMUX/2 mode, there exist two transmission standards for
MADI:
• 48k frame: Transmission is identical to the SMUX/1 mode, except
two channels are grouped to one channel, resulting in 32 channels.
• 96k frame: Instead of grouping channels, the channels are sent
directly, but using a shorter packet consisting of 32 channels.
