14

ENGLISH

ASPIRLIGHT HV

4 ELECTRICAL CONNECTIONS

4.1 GENERAL

- Before starting any operation to perform the electrical connection make sure that the unit is not electrically

powered

- Perform the necessary electrical connections referring exclusively to the wiring diagram attached to this manual.

- Install a suitable cut-off and breaker device exclusively serving the unit.

- it is essential for the unit to be efficiently earthed. The manufacturer will not be held liable whatsoever for the

failure to comply;

- Check that the electrical components chosen for installation (main switch, breakers, cable size and terminals)

are suitable for the

electrical power of the installed unit and that they take into account the start-up currents of the compressor in

addition to the maximum achievable load. I

The relative data is stated on the attached wiring diagram and on the unit’s rating plate

- It is forbidden to enter the unit with electrical cables except where specified in this file.

- Use duly-sized electrical cables and conductors that comply with the regulations in force in the various countries.

- Strictly avoid feeding through the electrical cables so that they are directly touching pipes or parts inside the unit

- After the first moments of operation, check the tightness of the power supply terminal screws

Table for power supply line sizing

Code AP20050 AP20052

Maximum absorbed current 0.8 A 1.2 A

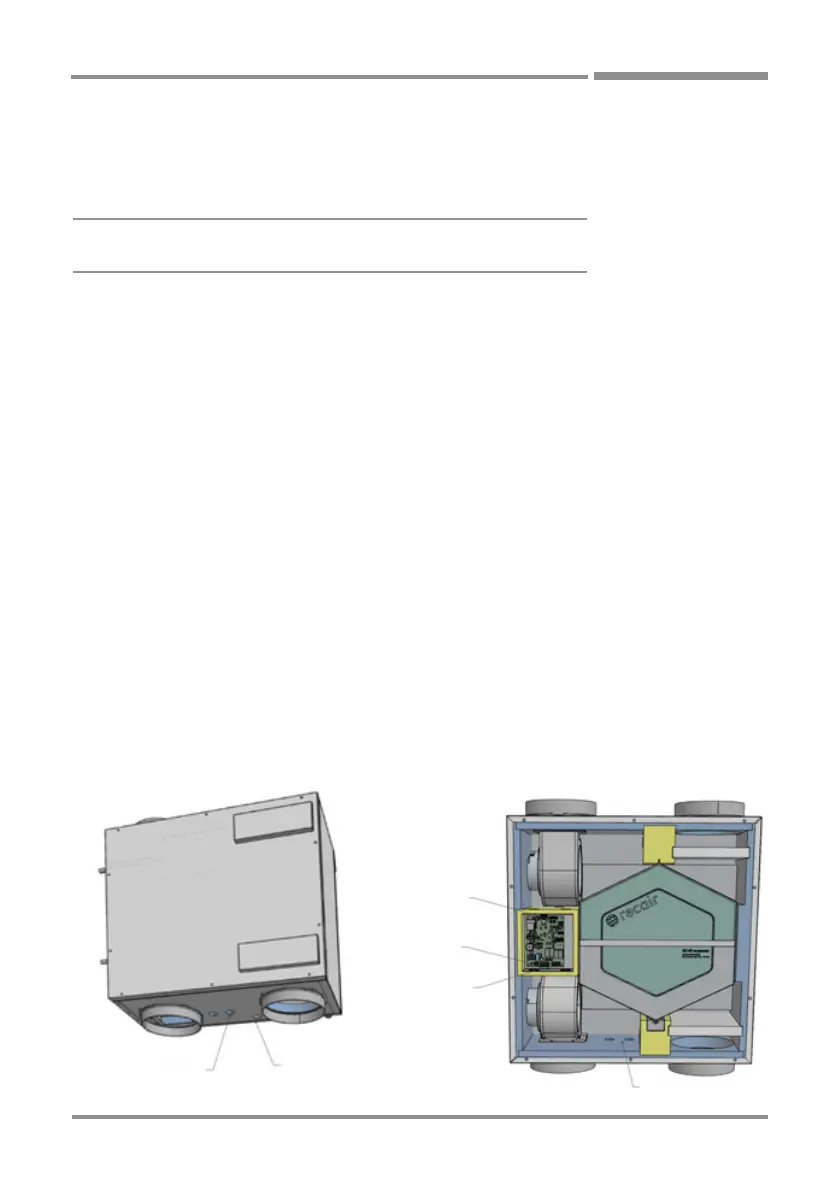

FOR THE ELECTRICAL CONNECTION:

Remove the screws from the front panel and take the front panel down;

Use the two cable glands on the bottom side of the unit to enter with electrical cables inside the unit;

Use electrical cables with double insulation in the passage through to the electrical box;

Enter the electrical box with the cables and set up the electrical connections;

Make sure that the cables do not touch the fan impellers;

ELECTRICAL

CABLE INPUT

REMOTE DISPLAY

CONNECTION

POWER SUPPLY

CONNECTION

UNIT CABLE

INPUT

ELECTRICAL BOX

CABLE INPUT

CONDENSATION

DISCHARGE
