5.4 COLLEGAMENTO SCARICO CONDENSA
Sul fondo dell'unità ci sono due raccordi di drenaggio.
In caso di montaggio a pavimento e soffitto utilizzare il più basso
In caso di montaggio a parete, utilizzare la connessione posta contro la parete.

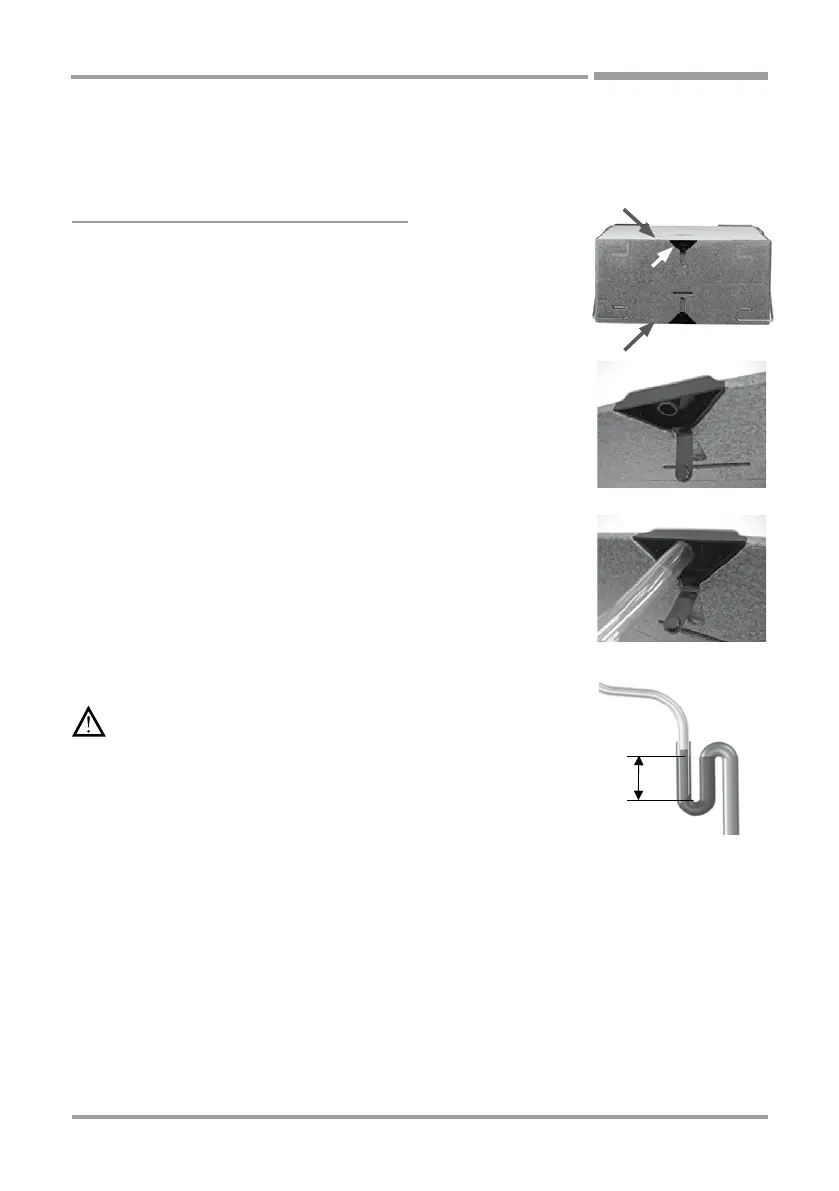

5.6 Condensate Drain Connection
On the bottom of the unit there are two drain connec-
tions. In case of floor and ceiling mounting use the lowest
connection. In case of wall mounting, use the connection
at the wall side.
A) Open the drain connection
Open the plastic stitched tongue for the drain connection.
B) Install the flexible hose
Put the flexible hose on the connection.
C)
B)
Put the flexible hose into the condensate trap.
IMPORTANT!
- Be sure that there is at least 50 mm water level in
the trap
- Be sure that the condensate water could not be
blocked by a to sharp bend in the flexible hose.
- Be sure that the flexible hose has been installed
downwards.
IMPORTANT!
- Please ensure that whichever connection is not
used is sealed off.
16
211.0107 Advance 226-0047 A4 Installer ENGELS.indd 16 14-02-11 15:39
5.6 Condensate Drain Connection
On the bottom of the unit there are two drain connec-
tions. In case of floor and ceiling mounting use the lowest
connection. In case of wall mounting, use the connection
at the wall side.
A) Open the drain connection
Open the plastic stitched tongue for the drain connection.
B) Install the flexible hose
Put the flexible hose on the connection.
C)
B)
Put the flexible hose into the condensate trap.
IMPORTANT!
- Be sure that there is at least 50 mm water level in
the trap
- Be sure that the condensate water could not be
blocked by a to sharp bend in the flexible hose.
- Be sure that the flexible hose has been installed
downwards.
IMPORTANT!
- Please ensure that whichever connection is not
used is sealed off.
16
211.0107 Advance 226-0047 A4 Installer ENGELS.indd 16 14-02-11 15:39
A) aprire la connessione di scarico
B) Montare il tubo flessibile
Inserire il tubo flessibile nella connessione.
Inserire il tubo flessibile nel sifone di scarico condensa.
IMPORTANTE!
- Assicurarsi che vi sia almeno 50 mm di livello dell'acqua
- Assicurarsi che l'acqua di condensa non potrebbe essere bloccata da una
curva a gomito nel tubo flessibile.
- Assicurarsi che il tubo flessibile è stato installato verso il basso.
