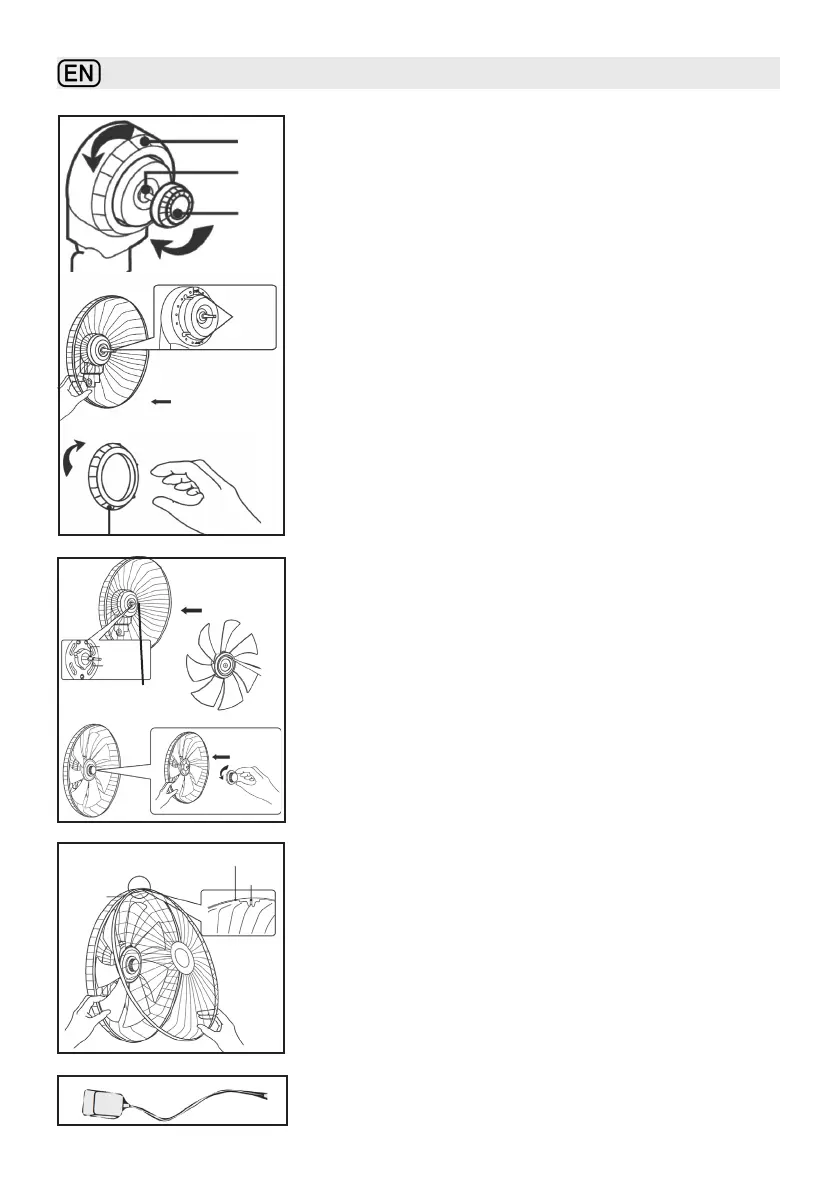

Assembly
32
A
B
C
D
E
F
G
H
I
Rear grille:
• Fix the motor shaft (A) with one hand, and rotate
out the blade knob (B) in clockwise direction with
the other hand. After that, rotate the grille knob (C)
in a counterclockwise direction.
• Aim the hole on the rear grille at the locating pole
(D) of the motor cover, push it backwards to make
sure the locating pole comes out of the hole.
• Hold the rear grille with one hand, and rotate the
grille knob (E) into the motor cover in clockwise
direction with the other hand to make rear grille to
be xed on the motor cover.
Blade:
• Aim the blade shaft hole at the motor shaft (F) and
then push it to the blocking ring.
• Hold the blade with hand, and then rotate the
blade knob (G) into the motor shaft in an counter-
clockwise direction until it’s tightened.
Front grille:
• Twist o screws on the grille ring (I) and then keep
them well.
• Form the front grille and the rear grille to an angle,
push the transparent plastic pins from the grille
ring latch (H) through the grill and tighten the
screw again.
Insert the plug of adaptor into the power socket of rear
case.
