13
Installation Instructions

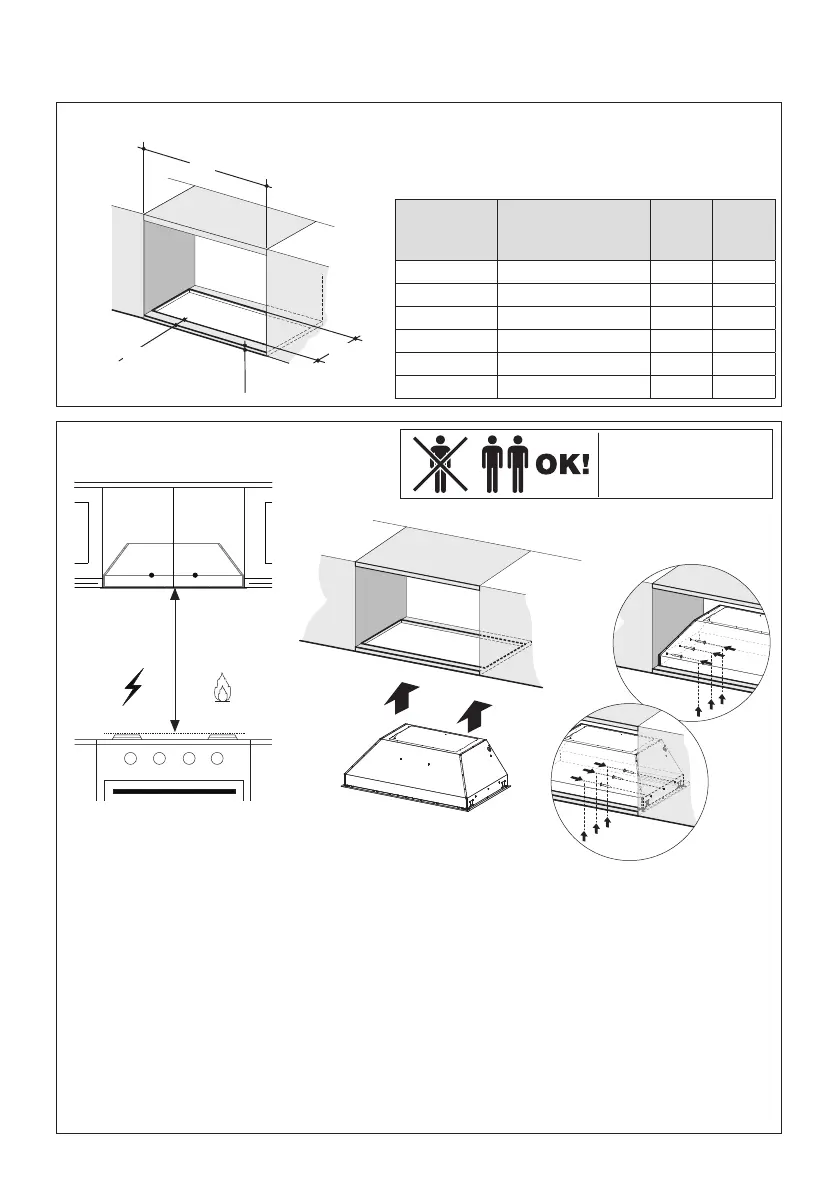

SECURING INSERT HOOD WITHOUT SIDE MOUNT CLIPS
Outside
Hood
Dimension
Model # X Y
30" x 19" INPL3019SSNB-B 28-5/8" 19-7/8"
36" x 19" INPL3619SSNB-B 34-3/4" 19-7/8"
36" x 22" INPL3622SSNB-B 34-3/4" 22-7/8"
42" x 19" INPL4219SSNB-B 40-3/4" 19-7/8"
48" x 19" INPL4819SSNB-B 46-3/4" 19-7/8"
48" x 22" INPL4822SSNB-B 46-3/4" 22-7/8"
Y
Min. 3/4
"
X
Min.13/16
"
X
Y
Min.13/16
"
Min. 3/4
"
2a
Cut out the opening in the underside of the
cabinet as shown in Figure 2a.
2b
It is recommend that the Insert Hood is supported by a 3/4" wood base.
Minimum cabinet opening height-16". However height may vary to allow for ducting.
Install the Insert Hood into the cabinet opening.
Insert Hood attaches on the short side of the cabinet using screws (purchased separately).
From inside Insert Hood as shown in Figure B and C, secure the Insert Hood with three
screws into wood support /cabinet framing.
Next from underneath the Insert Hood Place the four plastic stoppers (10) as shown in
Figure B.
Min. 24" Min. 30"
Two people may be
required for installation.
a
b
c
