12
Y
Min. 3/4
"
X
Min.13/16
"
X
Y
Min.13/16
"
Min. 3/4
"
1a

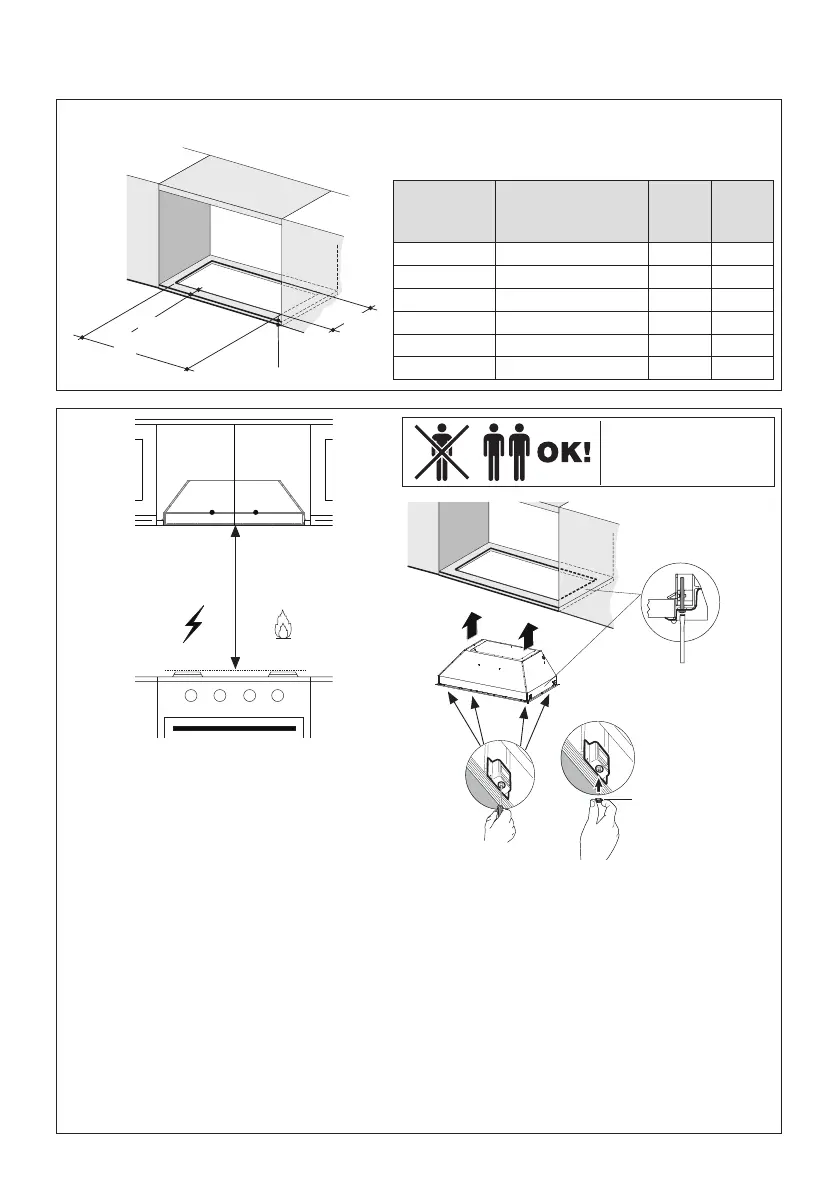

Cut out the opening in the underside of the
cabinet as shown in Figure 1a.
Installation Instructions
SECURING INSERT HOOD WITH SIDE MOUNT CLIPS
1b
It is recommend that the Insert Hood is supported by a 3/4" wood base to insure Side Mount
Clip alignment.
Minimum cabinet opening height-16". However height may vary to allow for ducting.
Install the Insert Hood into the cabinet opening, and fully engage the four spring-loaded Side
Mount Clips onto the cabinet wood base.
Next from underneath the Insert as shown in Figure A, locate the screw in each of the Side
Mount Clips.
To lock the Insert Hood into position, tighten the screw for each of four Side Mount Clips.
Next from underneath the Insert Hood Place the four plastic stoppers (10) as shown in Figure B.
Outside
Hood
Dimension
Model # X Y
30" x 19" INPL3019SSNB-B 28-5/8" 19-7/8"
36" x 19" INPL3619SSNB-B 34-3/4" 19-7/8"
36" x 22" INPL3622SSNB-B 34-3/4" 22-7/8"
42" x 19" INPL4219SSNB-B 40-3/4" 19-7/8"
48" x 19" INPL4819SSNB-B 46-3/4" 19-7/8"
48" x 22" INPL4822SSNB-B 46-3/4" 22-7/8"
Two people may be
required for installation.
2x
2x
A
B
10
Min. 24" Min. 30"
