20

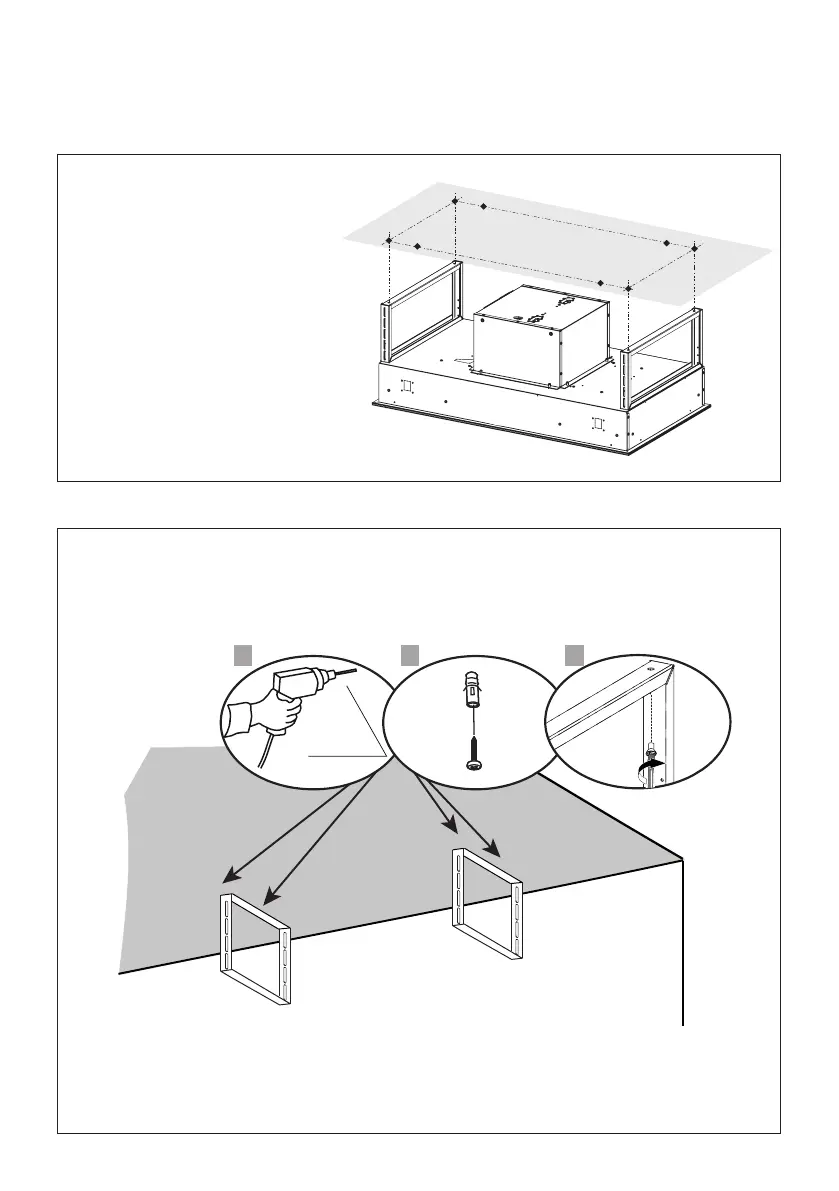

See below for a detailed image on
drilling the holes onto the fastening
surface (inside ceiling or soft) that
will then be used to mount the bracket
xtures.
The fasteners used must be compatible
with the 5/16" hole and are purchased
separately.
Ceiling Mark
Bracket Installation on Ceiling
7.a
OPTION A - HOOD INSTALLATION BEFORE THE SOFFIT IS COMPLETED
Use external holes created with drilling template for location of the ceiling fasteners (purchased separately).
Use wall plugs or other securing hardware in conjunction with the ceiling fasteners (purchased separately).
(1) Use a 5/16" Drill Bit to make these external hole.
(2) Use wall plugs if appropriate or other securing hardware in conjunction with the ceiling fasteners (purchased
separately).
(3) Use appropriate screws or other securing hardware in conjunction with the ceiling fasteners (purchased
separately) to attach the brackets.
7.b
Use this installation if you have access from above to install the range hood
´
[
³
´
1 2 3
