TLI Pro 201 • Panel Features 10
TLI Pro 201 Front Panel Features
A
A
AB
B
BC
C
CD
D
D
SIGNAL
INPUTOUTPUT
HDCP
TLI Pro 201
R MENU

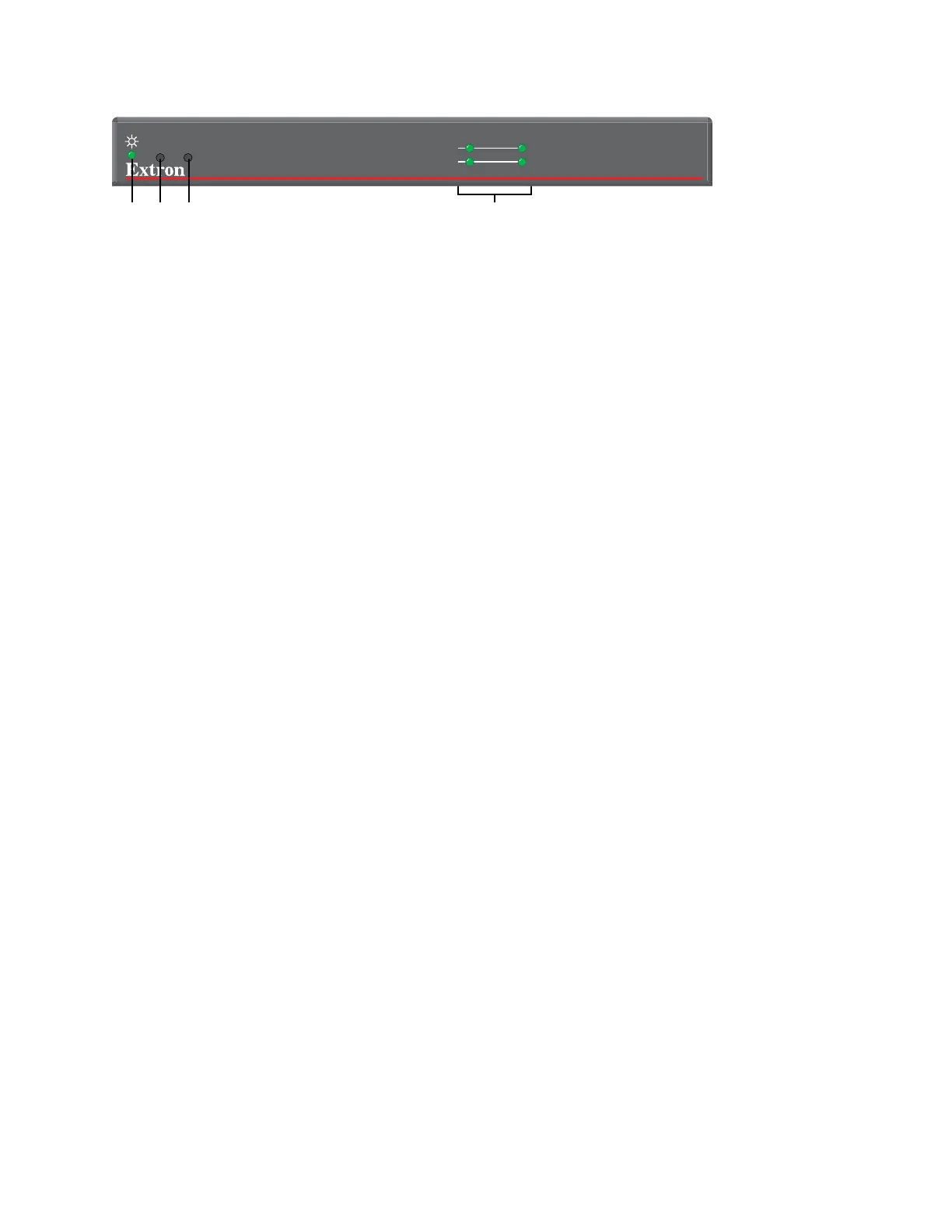

Figure 5. TLI Pro 201 Plus Front Panel
A
Power LED — Indicates the power status and the reset status of the unit.
B
Reset button (recessed) — Allows the unit to be reset in any of three different modes. It also allows the user
to toggle between enabling and disabling the DHCP client (see Reset Modes on page 35).
C
Menu button (recessed) — Opens the Setup Menu (see page 11) and Calibration Screen (see page 22) for
the interface:
Setup Menu
1. Press the button briefly (less than 3 seconds) to open the internal menu screens.
2. Press the button briefly for a second time to exit the setup menu.
Calibration Screen
1. Press and hold the button (3 seconds or more) to open the Calibration screen.
2. Follow the on-screen instructions to calibrate the touchpanel.
3. Complete the calibration process or press the button briefly (less than 2 seconds) for a second time to
exit the Calibration screen.
D
Status LEDs —
• Both the SIGNAL LEDs light green when a video signal is detected and are unlit when no signal is
detected.
• The OUTPUT SIGNAL LED blinks amber when the video output is muted (when the sleep or display timer
expires).
• Both the HDCP LEDs light green when HDCP content is detected and are unlit when HDCP content is not
detected.
gure 5
