TLI Pro 201 • Panel Features 7
An Extron IPL Pro Series or IPL Pro xi Series control processor must also be connected to the same network
domain as the TLI Pro 201. See the www.extron.com for a list of suggested models.
The network port has two LEDs. The green Link LED lights steadily to indicate that the TLI Pro 201 is
connected correctly to a network. The amber Activity LED blinks to indicate that data is being passed to or
from the TLI Pro 201.
Connecting Power
ATTENTION:
• Do not connect the power supply before reading the ATTENTION on page 8.
• Veuillez lire la partie « mises en garde » page 8, avant de mettre sous tension les écrans tactiles.
Extron recommends the Extron PI 130 power injector (see figure 3). Your power injector may look different.
1. Use an Ethernet cable to connect the LAN/PoE+ port of the interface to the power output of the 802.3at,
class 4 compliant PoE+ power injector.
This cable carries network information from the switch or router to the power supply input.
2. Connect the network input of the power injector to a network switch or router.
This cable carries the network information and power from the power supply to the interface.
3. Connect the IEC power cord to a convenient 100 VAC to 240 VAC, 50-60 Hz power source.
To network switchTo TLI Pro 201
LAN + PWR OUT
PI 130
LAN
100-240V ~ ,50-60Hz
0.8A MAX
PWR

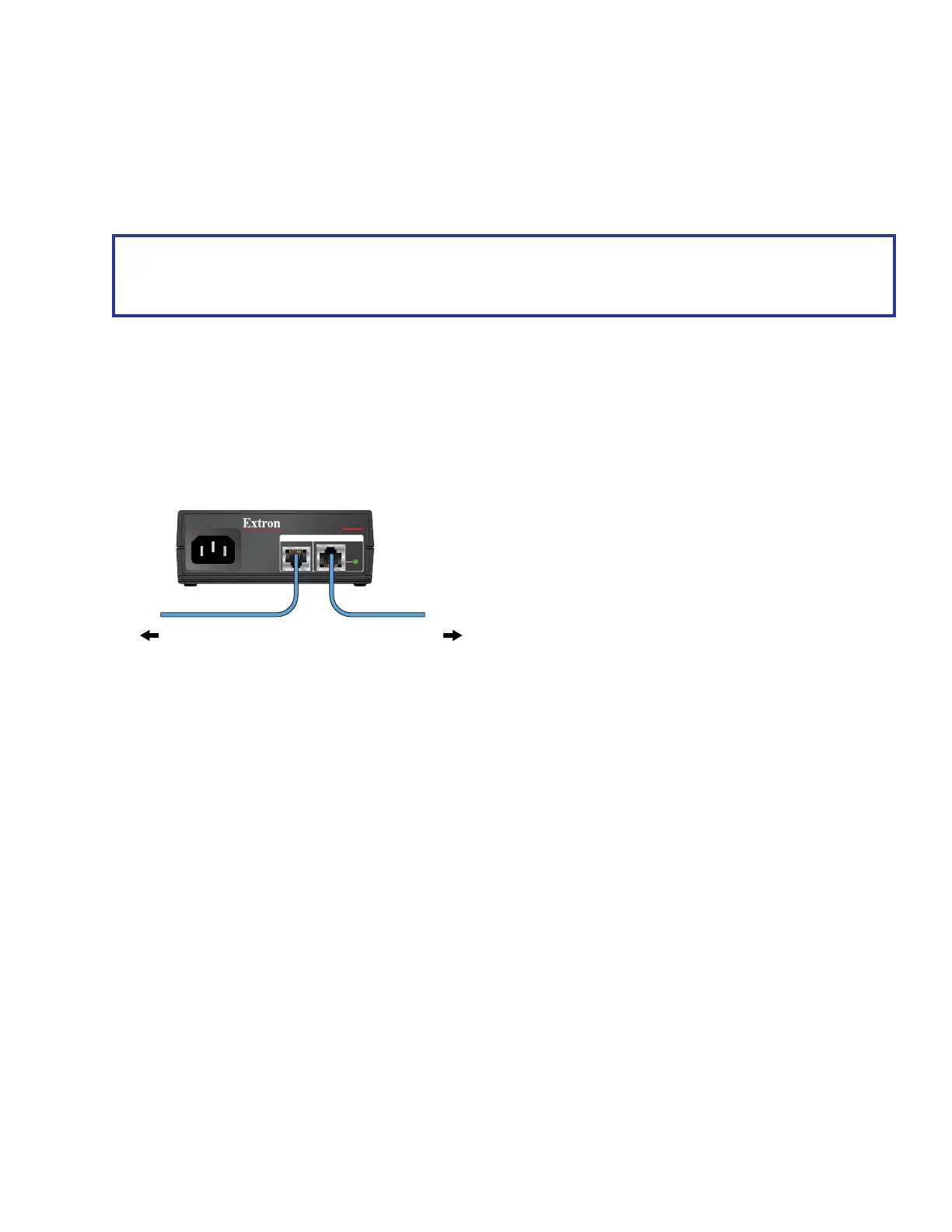

Figure 3. Connecting the Power Injector
Alternatively, use an Ethernet cable to connect the LAN/PoE+ port of the interface to a PoE+ switch.
