TLI Pro 201 • Panel Features 5
Panel Features
This section describes:
• TLI Pro 201 Rear Panel Features and Connections
• TLI Pro 201 Front Panel Features
TLI Pro 201 Rear Panel Features and Connections
A
A
AB
B
BC
C
CD
D
D
DEVICE LAN/PoE
+
OUTPUTINPUT

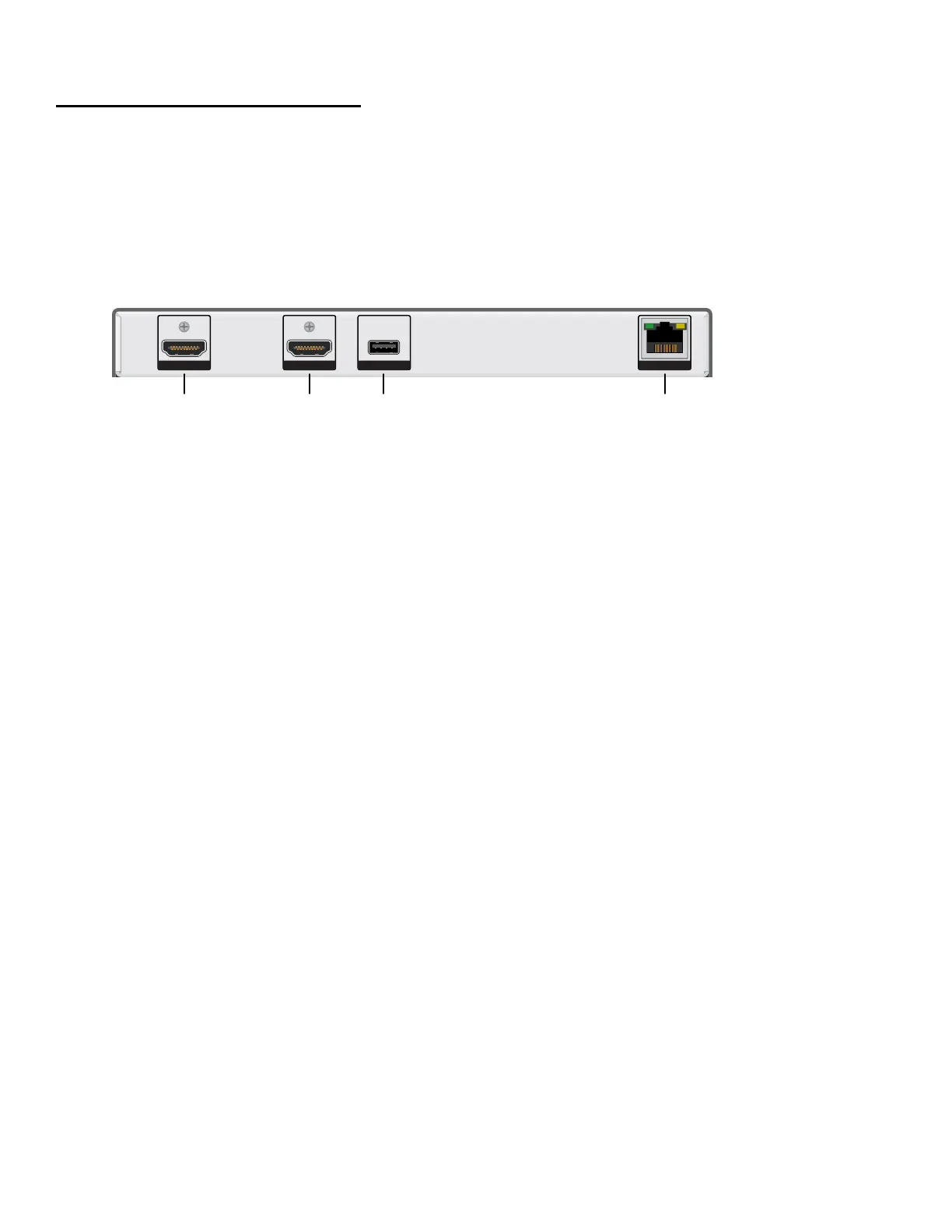

Figure 2. TLI Pro 201 Rear Panel
A
HDMI Input
B
HDMI Output
C
USB Port on page 6
D
LAN/PoE+ Port on page 6
A
HDMI Input — Plug the cable from the input source device into this HDMI type A port. Use the provided
LockIt HDMI lacing bracket to secure the HDMI connector (see Securing the HDMI Connector on page 9).
B
HDMI Output — Connect this HDMI type A port to a third-party touch display. Use the provided LockIt HDMI
lacing bracket to secure the HDMI connector (see Securing the HDMI Connector).
See the TLI Pro 201 Output Screen Resolutions table on page 6 for a full list of video output screen
resolutions supported by the TLI Pro 201.
For the TLI Pro 201 to work with your touchscreen display, you must have the correct embedded Human
Interface Device (HID) module loaded onto the TLI Pro 201 (see HID Modules on page 9).
gure 2
