RCP 101 EU and RCP 101 MK • Setup Guide (Continued)
Step 3: Mount the Remote Control Plate
These button plates can be installed directly into the
wall using a standard 1-gang European junction box
(RCP 101 EU) or MK wall frame for United Kingdom
junction boxes (RCP 101 MK). The RCP 101 EU can
also be mounted in a cable raceway (see next page).
NOTES:
• The electrical wall box is not provided and
must be purchased separately.
• Install the electrical wall box by following
the instructions provided by the
manufacturer.
• Use the metal bracket provided with
RCP 101 unit.

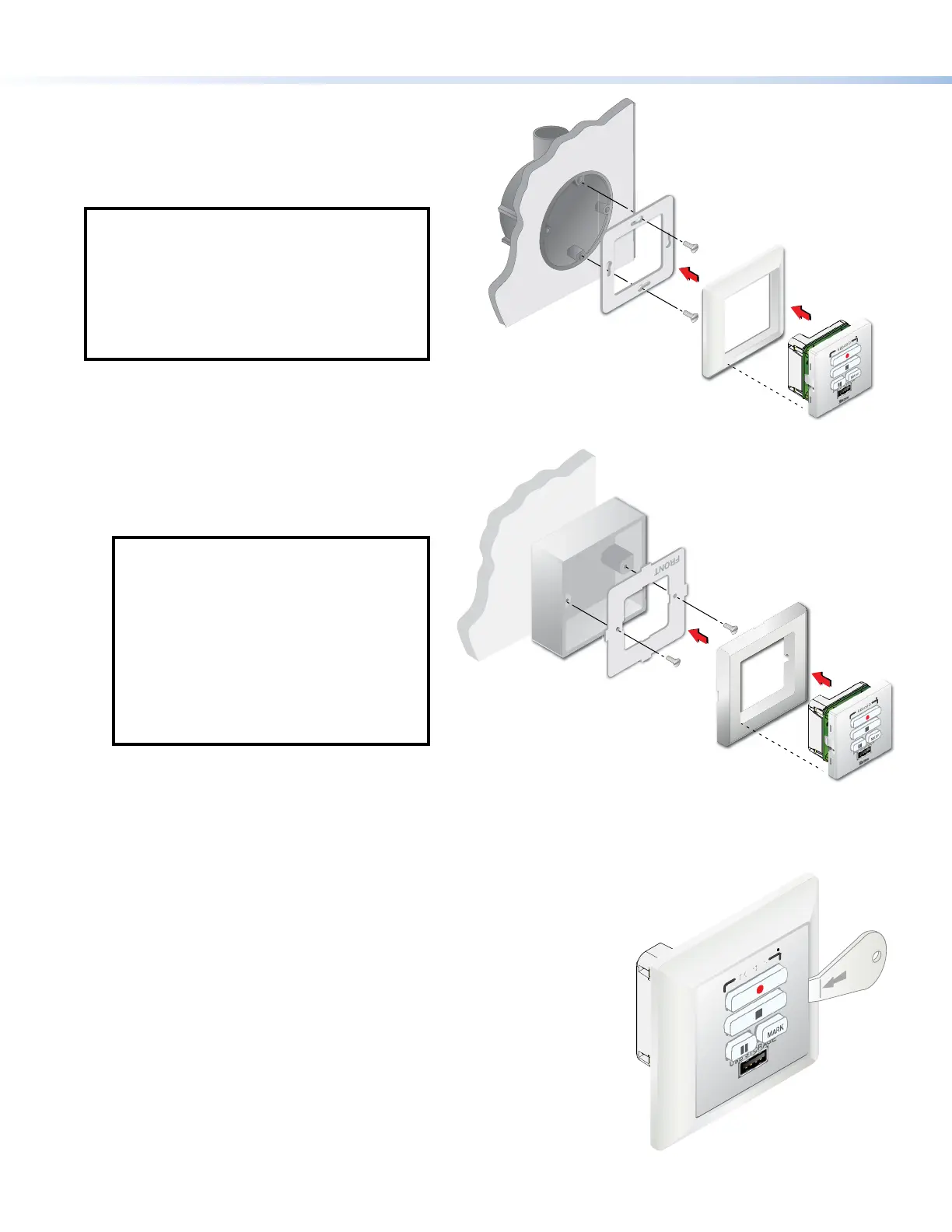

The RCP 101 EU (see gure 4) and RCP 101 MK (see
gure 5) are mounted as follows:
1. Decide where the panel will be located. Take
into consideration the position of wall studs and
windows that could obstruct cable runs.
2. Install the electrical wall box (
1
) by following the
instructions provided by the manufacturer.
3. Attach the provided metal mounting bracket (
2
)
using the two provided screws.
NOTES:
• The metal brackets provided with the
EU and MK models are different and
are not interchangeable.
• Ensure the bracket is in the correct
orientation (with the side marked
“Front” facing away from the wall).
• The EU model is attached with screws
at the top and bottom.
• The MK model is attached with screws
on both the sides.
4. Disconnect power from all devices at the source
and run cables through the hole in the wall. Pass
them through the metal mounting bracket and
wallplate and connect them to the rear panel
captive screw connectors (see RCP 101 Rear
Panel Features on page 2).
5. Insert the RCP 101 into the wallplate (
3
) and
press the entire assembly into the metal mounting
bracket (
2
). The RCP 101 is secured to the metal
bracket by two catches (one on each side) and
holds the wallplate in place.
Wa
ll Box
Wallplate
RCP 101 EU
Metal
Mounting Bracket
USB STORAGE
MARK
Extron
Extron
Extron
Ext
ron
RECORD
1
1
1
2
2
2
3
3
3
Figure 4. Mounting the RCP 101 EU
RCP 101 MK
Wall Box
Metal
Mounting Bracket
Wallplate
USB STORAGE
MARK
Extron
Extron
Extron
Extron
RECORD
1
1
1
2
2
2
3
3
3
Figure 5. Mounting the RCP 101 MK
Removing the RCP 101
To remove the RCP 101 EU or MK from the wall, follow these steps:
1. Disconnect the RCP 101 from the power source.
2. Use the Extron removal tool to release the catches on either side of the control
plate (see gure 6, on the right).
You may need to release both catches individually.
When the control plate is released, the wallplate comes away at the same time.
3. Remove the power cable (figure 2,
A
, on page 2) and the USB cable (
B
).
If necessary, cut the zip tie securing the USB cable to the cable anchor (
C
).
4. If required, undo the two screws securing the metal mounting bracket to the
wall box (gure 4,
2
, above).
USB STORAGE
MARK
Extron
Extron
Extron
Extron
RECORD
Extron
Extron
Extron
Extron
Insert
to line.
Figure 6. Removing the RCP 101
