NAV SD 121 Scaling Decoder and NAV D 121 Decoder • Installation and Basic Operation 5
D
Digital I/O port — Connect one or two devices (see Digital I/O connector) that you want to:
DIGITAL I/O
12G
• Monitor events
• Trigger events on (such as toggling relays, issuing commands, sending e-mails) once configured
• Power LEDs or other devices that accept TTL signal functions
E
RESET button and LED — The Reset button initiates three levels of decoder reset. For the
RESET
different reset levels, press and hold the button while the decoder is running or while you power up
the decoder (see Reset Operations for details).
F
Power connector — If desired, plug an optional external 12 VDC power supply into this
POWER
2-pole connector.
ATTENTION:
• Do not connect power to the decoder until you have read the CAUTION and ATTENTION
notices.
• Ne connectez pas l’alimentation à l’encodeur avant d’avoir lu les rubriques « ATTENTION ».
Connector and Cable Details
TP cable termination and recommendations
It is vital that your Ethernet cable be the correct cable type and that it be properly terminated with the correct
pinout. Ethernet links use Category (CAT) 5e or CAT 6, unshielded twisted pair (UTP) or shielded twisted pair
(STP) cables, terminated with RJ-45 connectors. Ethernet cables are limited to a length of 328 feet (100 meters).
NOTES:
• A CAT 5e cabling infrastructure is the minimum acceptable to support a NAV system. Anything less is
insufficient.
• Do not stretch or bend cables. Transmission errors can occur.
The Ethernet cable must be terminated as a patch (straight-through) cable and must be properly terminated in
accordance with the TIA/EIA T568-B wiring standard (see figure 3).
5
Pin
1
2
3
6
7
8
4
Wire color
White-green
Green
White-orange
White-blue
Orange
White-brown
Brown
Blue
TIA/EIA T
568B
TP Wires
12345678
Pins:

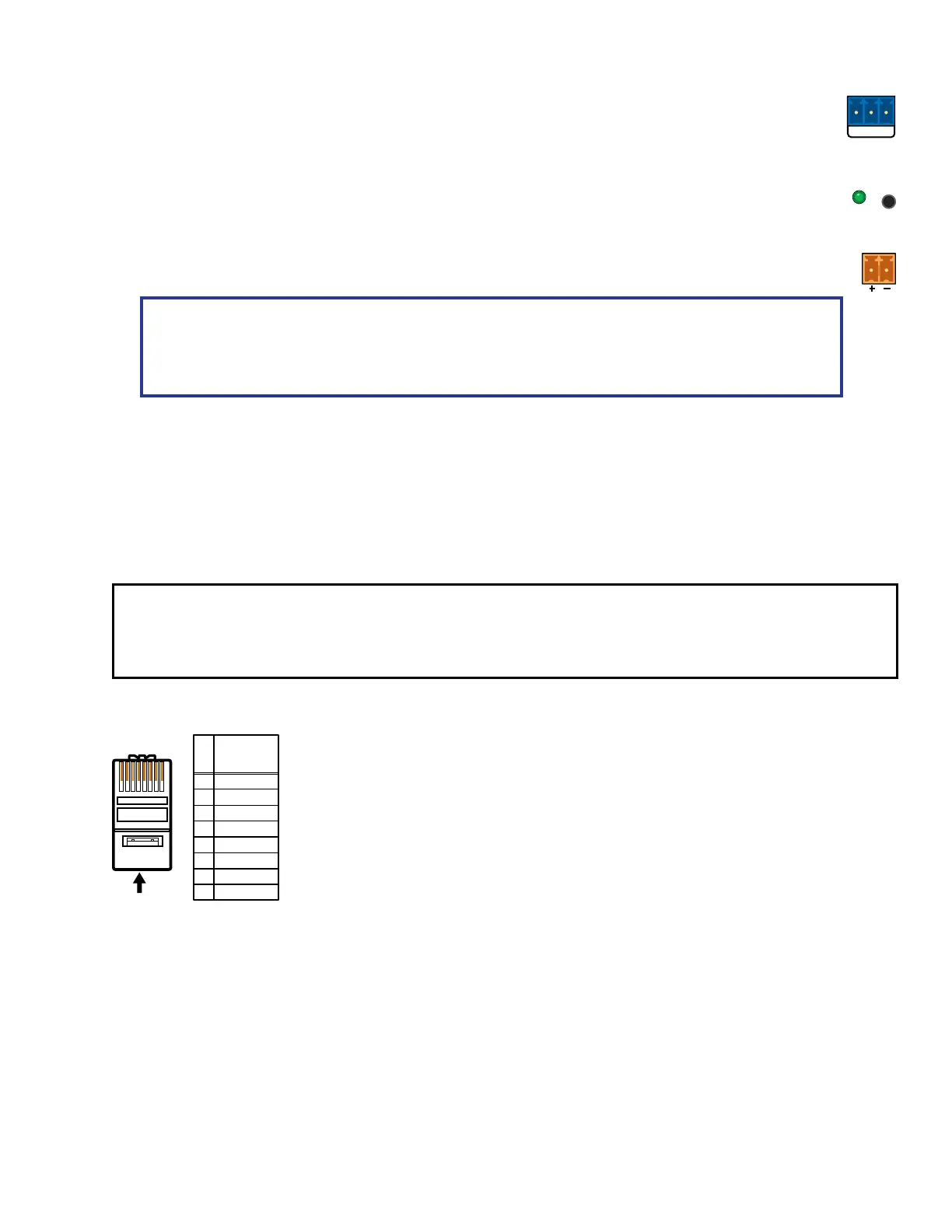

Figure 3. RJ-45 Connector and Pinout Table
