NAV SD 121 Scaling Decoder and NAV D 121 Decoder • Installation and Basic Operation 4
Installation and Basic Operation
This section describes the installation and the basic operation of the NAV SD 121 scaling decoder and NAV D 121
decoder, including:
• Mounting
• Rear Panel Connections and Features
• Front Panel Connection and Indicators
• Startup and Basic Operation
Mounting
If desired, mount the decoder in a rack (see Mounting the Decoder).
Rear Panel Connections and Features
NAV SD 121
POWER
HDMI
RS-232IR
DIGITAL I/O
RESET
12G
NAV 1G/PoE
+
Tx Rx SGG
OUTPUT
EEE
BBB CCC DDD AAAFFF

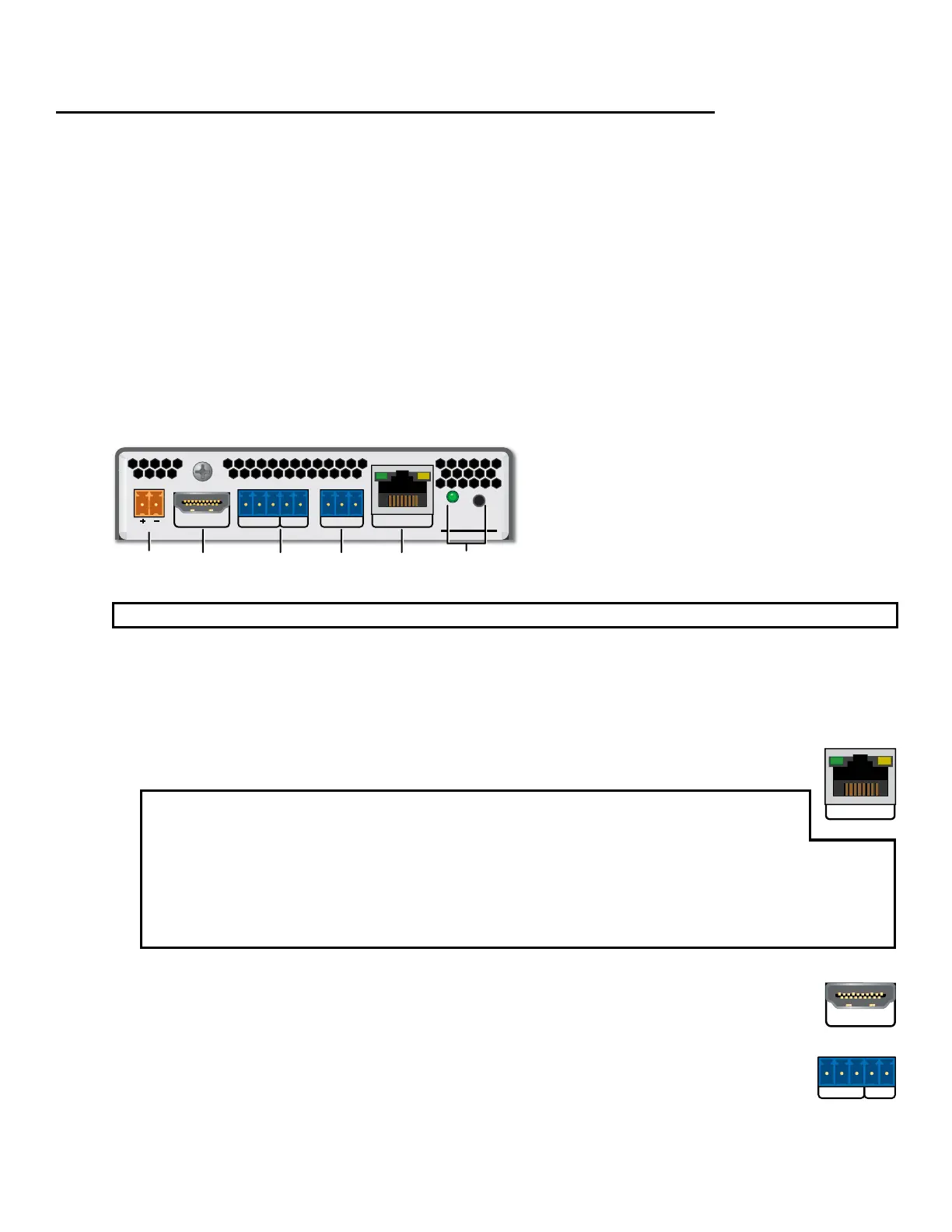

Figure 2. NAV SD 121 Rear Panel Connectors
NOTE: Figure 2 shows the NAV SD 121. The NAV D 121 is identical with the exception of the silkscreening.
A
NAV 1G/PoE+ port
D
Digital I/O port
B
HDMI output port
E
RESET button and LED
C
Control port
F
Power connector
A
NAV 1G/PoE+ port (see figure 2) — Connect to an Ethernet LAN on which one or more
NAV 1G/PoE
+
encoders also reside for streaming, control, and PoE+.
NOTES:
• See TP cable termination to properly wire the RJ-45 connector (
A
).
• RJ-45 port LEDs indicate as follows:
• Act (amber) LED — Indicates transmission of data packets on the RJ-45 connector. This LED
blinks as the decoder communicates.
• Link (green) LED — Indicates that the decoder is properly connected to an Ethernet LAN. This
LED lights steadily.
B
HDMI output port — Connect an HDMI cable between this port and an HDMI display
HDMI
OUTPUT
(see LockIt Lacing Brackets to use the LockIt HDMI Cable Lacing Bracket to secure the
connector to the decoder).
C
Control (RS-232/IR port) — Connect a 3.5 mm, 5-pole captive screw connector for bidirectional
RS-232IR
Tx Rx
SG
G
RS-232 and IR communication (see Control connector wiring to wire the connector).
