MLC Plus 84 Series • Hardware Features and Installation 23
D
Volume control port — To provide volume control for some Extron audio amplifiers,
connect this port (see figure 18,
D
on page18) to the volume remote control port
on the amplifier as shown below. Configure the maximum and minimum voltage limits.
Set Soft Start mode off or on (default). Soft Start mode allows volume to gradually
increase from mute to the previous level after muting or power-on to prevent loud audio
bursts (see Soft Start mode on page34).
GCV
GCV
G
S
VOL
IR
G
I
N
D
IN
10V 50mA
GCV
REMOTE
10V 50mA
GCV
10V
REMOTE
VOL/MUTE
REMOTE
VOL/MUTE
10V 50mA
G
STANDBY
10V 50mA
GCV
GCV
VOL
GCV
VOL
G
S
IR
G
IN
D IN
GCV
VOL
Ground (Gnd)
Reference voltage input (from amplier) – This allows the MLC Plus 84 to detect when
the amp is present.
C
G
Control voltage (variable output to amp from MLC Plus) – This signal controls amp volume.
V
Ground
Reference voltage
C
G
Control voltage
V
D
Model
Rear
Panel
or
or
EU or MK Model
Rear Panel
Control voltage output:
0 - 10 VDC
Reference
voltage: ≤10 VDC
NOTE:
Use shielded cable and
place the MLC Plus 84 as close
as possible to the amplier to
avoid picking up background
noise via the cable. Ideal cable
length is six feet or less.
NOTE: When audio
mute is active, the
MLC Plus 84 sets
control voltage
output to
0 VDC,
even if the voltage
range (minimum
and maximum
voltage limits) have
been set to levels
above zero, such
as 2 V to 8 V.
Volume Control
This port can be used to control the volume and mute or unmute the audio for some
Extron audio ampliers with remote volume capability.
• Connect to an Extron audio ampier to
permit volume control via the MLC
Plus 84,
including via
macros, or schedules.
• Do not exceed 10 VDC input voltage.
Settings to configure via software:
• Maximum and minimum voltage
limits
• Soft Start mode: off or on (default) − to allow
volume to gradually increase from mute to
the previous level after muting or power-on
to prevent loud audio bursts
Example:
Connecting to
Extron Amplifiers
MLC Plus 84 D
Rear Panel
MLC Plus 84 EU or
MLC Plus 84 MK
Rear Panel
C or
VOL/MUTE
V or 10V G or
MPA 401 Series
MPA 181T,
MP 101 Series
MPA 152MPA 152 Plus
XPA 1002

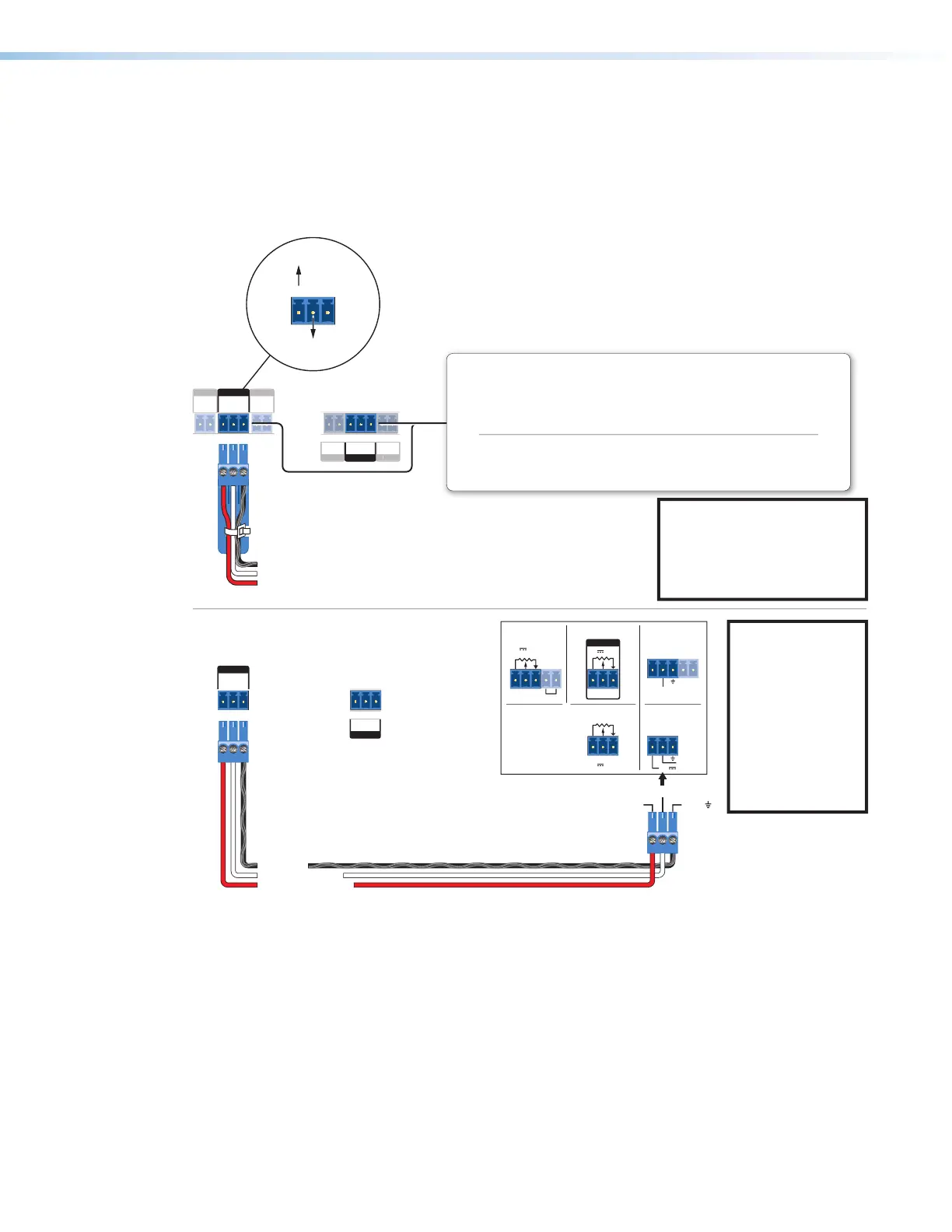

Figure 23. Volume Control Port Wiring Examples
