MLC Plus 84 Series • Hardware Features and Installation 14
3. Remove any buttons to be replaced as follows:
a. Press the button or button pair from the front of the faceplate out through the back
of its faceplate opening. If necessary, pull the buttons out gently from the back.
NOTE: The smaller buttons are arranged in pairs connected by a rubbery
membrane.
b. If you are replacing the faceplate, repeat step 3a until all buttons are removed.
c. Set the removed buttons aside for later use.
4. Insert a button or button pair as follows:
a. Insert a new button or button pair from the back into the appropriate opening in the
faceplate.
b. Align the two pegs in the upper left and lower right corners of the
button or button pair with the corresponding holes in the faceplate.
Press the button or buttons into the faceplate so the buttons and
pegs are seated into the holes and faceplate opening.
c. Repeat steps 4a and 4b for any additional buttons to be replaced or
installed.
5. Reattach the original faceplate or attach the replacement faceplate to the controller as
follows:
a. Align the tabs (at top and
bottom) and pegs (at
upper left and lower
right corners) on the
back of the faceplate
with the slots and
holes on front of the
circuit board.
b. Gently but firmly press
the faceplate against
the circuit board until
the tabs and pegs are
inserted into the slots
and holes, and the
tabs click into place.
OFF
ON
Pegs (2)
LAPTOP
DOC CAM
PC
DVD
AUX VIDEO
VGA
HDMI
DOC CAM
LAPTOP
PC
DISPLAY
VOLUME
AUTO IMAGE
AV MUTE
OFF
ON
Peg
Ta
b
Insert tab on
faceplate into slot.
Insert peg
on faceplate
into hole.

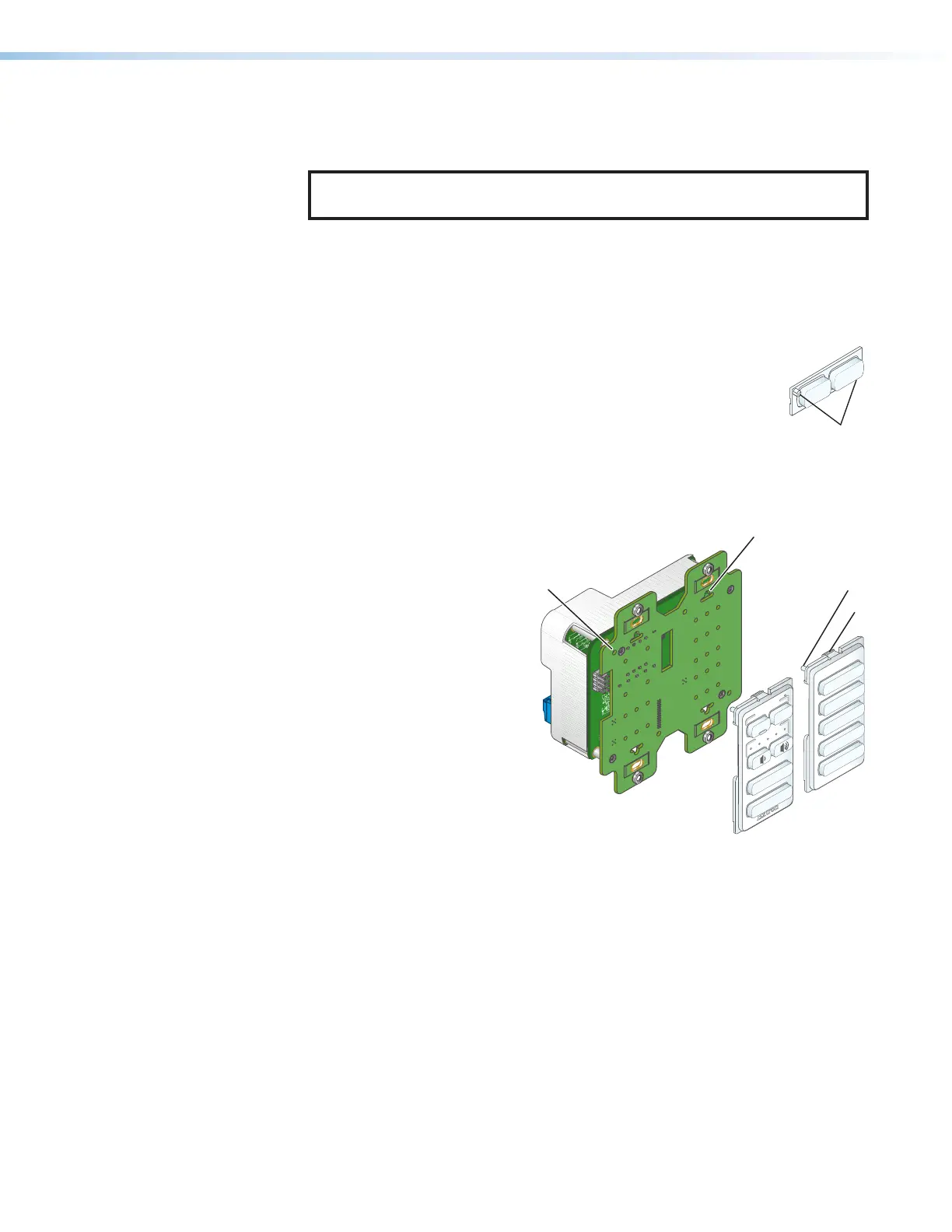

Figure 13. Aligning and Reattaching the Faceplate
