IPL EXP I/O Series • Hardware Features and Installation 12

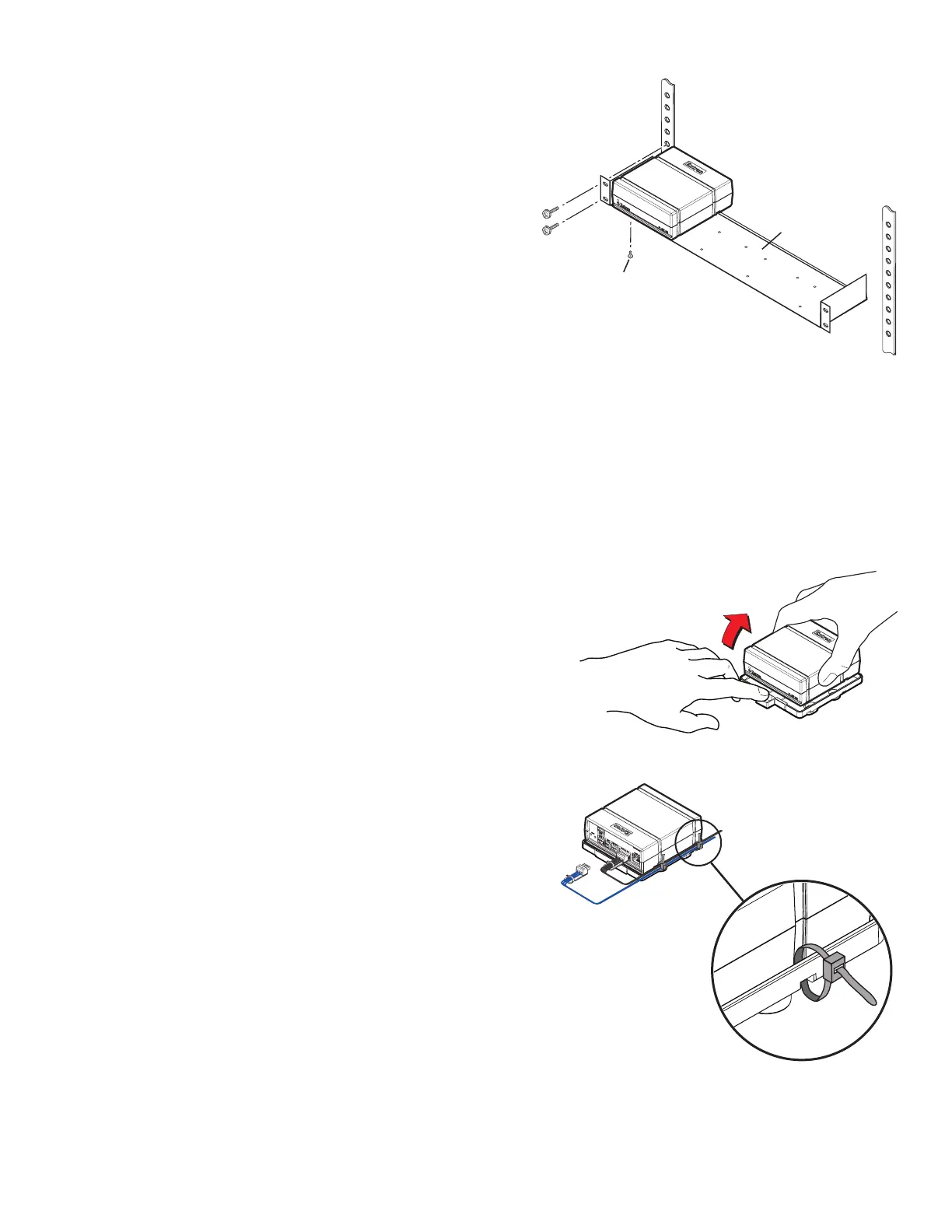

Rack Mounting
The IPL EXP units are one quarter rack wide.
Up to four IPL units can be mounted side by side directly
onto a rack shelf.
1. Align the threaded holes in the bottom of the
IPL EXP with the holes in an Extron rack shelf and
fasten the unit to the shelf with two
4-40 x 3/16 inch screws (see
1
at right).
2. Bolt the rack shelf to the rack (see
2
).
Mounting an IPL EXP Expansion Interface With a ZipClip 200
These instructions apply to the IPL EXP 200, S5, and S2 models.
Using the ZipClip 200
Attaching and removing the clip and IPL EXP
To attach the EXP to the ZipClip 200 mounting clip:
1. Insert the bottom of the EXP down into the clip, starting with one end.
2. Pivot the other end down and press until the clip snaps into place.
To remove the EXP from the ZipClip:
1. Press the tab on the ZipClip (see
1
at right).
2. Pivot the EXP and lift it out of the ZipClip (see
2
).
Using tie wraps for cable strain relief
1. Attach the EXP to the ZipClip 200 mounting clip as
described previously.
2. Fasten the cables to the ZipClip base.
a. Insert tie wraps (also called “zip ties”) along the
notches on the side of the EXP and through the tie
wrap anchor points on the ZipClip, then around the
cables.
b. Connect and pull the tie wraps until they are secure.
Do not over-tighten.
(2) 4-40 x 3/16"
Screws
RSB 123
Rack Shelf
On a Rack Shelf
2
1
2
1
Tie Wrap
1
1
2
2
3
3
G
G
4
4
