IPCP Pro Series • Hardware Features and Installation
25
C
Switched 12 VDC power output ports — These ports (see figure 16,
C
on page 20) provide
12 VDC output. For the IPCP Pro 550 and IPCP Pro 555, the four ports provide up to a combined maximum
of 40 watts. Once configured, each port can be separately turned on or off. These ports are monitored
continuously for total power usage (draw).
21
LIMIT
SWITCHED
12 VDC
OVER
43
12 VDC
SWITCHED 12 VDC
40W MAX TOTAL
3 4
1 2
Lights if total power drawn
is 41-46 watts.
Lights if total power drawn
exceeds 47 watts.
Power output shuts off
until the user corrects the
overload.
Switched 12 VDC
Power Output
• Total output for all four ports
combined:
12 VDC, 40 watts (max.)
• Corresponding front panel
green LEDs ( ) light when
power is available at each port.
3/16"
(5 mm)
Max.
Rear
Panel
Front
Panel
Tie Wrap

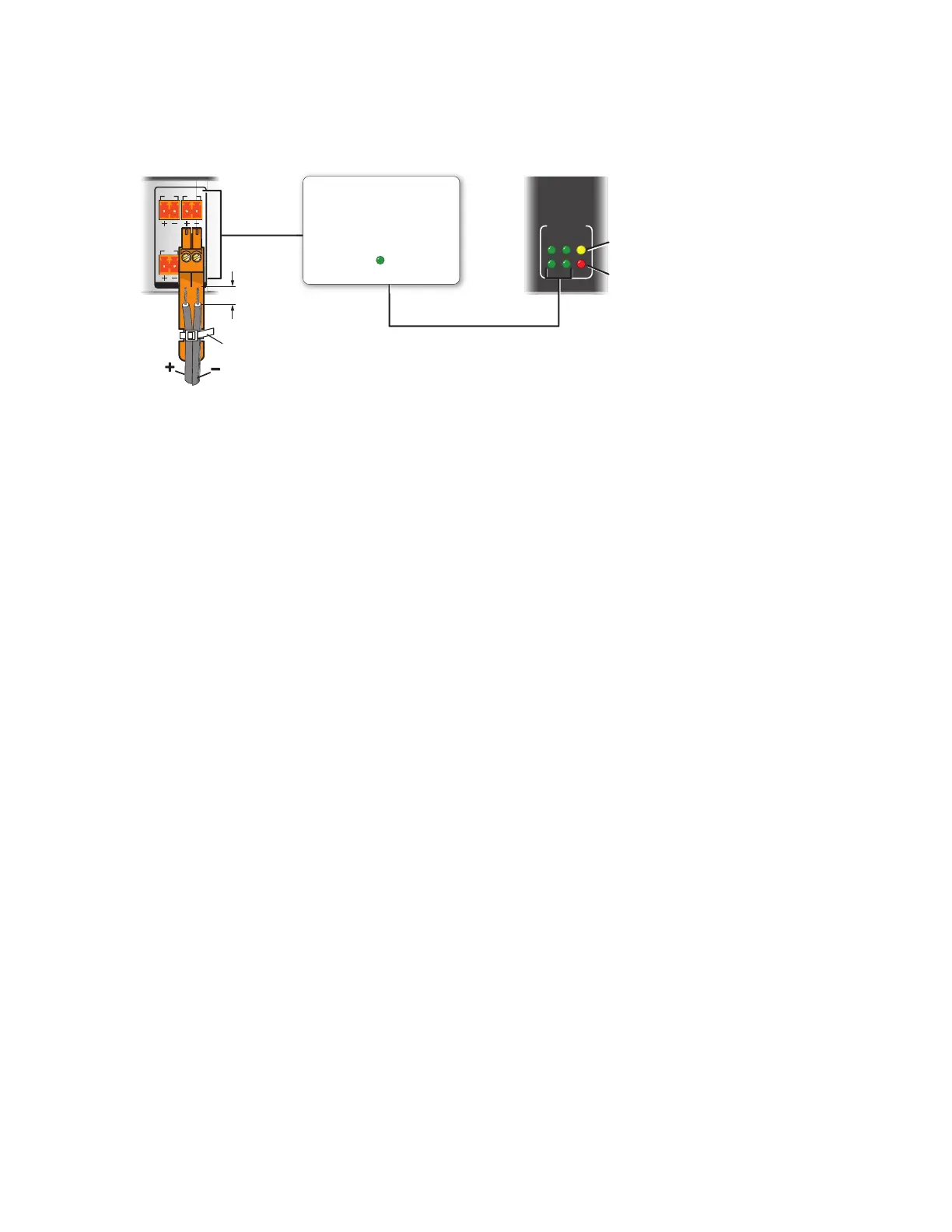

Figure 22. Switched DC Power Output Ports and LEDs
• When the total power usage exceeds a threshold of 41 watts but is still below 47 watts,
the IPCP enters the limit mode, during which the yellow front panel Limit LED lights.
If you have configured the unit to do so, the IPCP can issue a power overcurrent notice.
• If power usage exceeds a second, higher threshold (47 watts), the IPCP enters overcurrent mode.
It turns these ports off, and the red front panel Over LED lights.
If the ports are disabled, the user must disconnect or fix the attached devices to correct the problem.
If the power draw is still excessive, the ports remain off.
