HC 402 • Setup Guide (Continued)
Installation and Configuration
ATTENTION:
• Installation and service must be performed by experienced personnel.
• L’installation et l’entretien doivent être effectués par du personnel expérimenté.
Step 1 — Get Ready
1. Familiarize yourself with the features of the transmitter and receiver (see Front Panel Features and Rear and Side Panel
Features on page3).
2. Download and install the latest version of the following:
• PCS Product Configuration Software — for detecting and configuring the AV settings for the transmitter-receiver pair
• Toolbelt software — for discovering the HCR102 receiver and other control products on the network, for managing
core settings, and for upgrading firmware if the need arises
• Global Configurator
®
(GC) software — for setting up and configuring the control system. GCProfessional and GCPlus
modes include a link to the Toolbelt software.
• IPLink
®
Pro device drivers — for use with GC, to make control of other AV devices possible
All are avail able from www.extron.com (see Locating Software, Firmware, and Driver Files on the Extron Website on page16).
3. Obtain network information for the unit from the network administrator. You will need the following details for each HCR102
receiver and for any other Extron Pro control product that is part of the system:
DHCP setting (on or off) Subnet mask Username
Device (HCR102) LAN IPaddress Gateway IP address Passwords
4. Write down the MAC address of each HCR102 (see figure 3,
O
on the previous page) or other IPLinkPro device to be used.
5. Obtain model names and setup information for devices the HCR102 will control.
Step 2 — Mount the Receiver, Prepare the Installation Site for
the HCT101D
Turn off or disconnect all equipment power sources and mount the
transmitter and receiver as required.
Mounting the HCR102
The HCR102 receiver ships with mounting brackets attached
for mounting to furniture or a wall.
NOTE: The receiver is designed so that its vents face
away from the wall or furniture when mounted in order to
achieve optimal air circulation and cooling.
Each receiver is 1 inch high, one half rack wide, and can
be rack mounted. The product page on www.extron.com
includes links to recommended optional rack shelves or rack
mounting kits. Alternatively, you can remove the pre-installed
furniture mounting brackets and attach four rubber feet at the
corners of each unit and place it on a table or desk.
Observe local and UL safety guidelines for mounting devices
to equipment racks. See the HC400 Series User Guide for UL
rack mounting guidelines.
Prepare the Installation Site for the HCT101D
ATTENTION:
• Installation and service must be performed by authorized personnel only.
• L’installation et l’entretien doivent être effectués uniquement par un technicien qualifié.
• Extron recommends installing the HCT101D into a grounded, ULListed electrical junction box.
• Extron recommande d’installer le HCT101D dans une boîte de dérivation électrique mise à la terre, certifiée UL.
1. and of any TouchLinkPro touchpanels that will be part of the system
POWER
12V
--A MAX
INPUTS
OUTPUTS
1
TP
HDMI
L R
AUDIO
HDMI/CEC
SIG
LINK
COM IR DIGITAL I/O
1 2
S GTx Rx G
G 3 4 G
HCR 10 2
LAN
IN

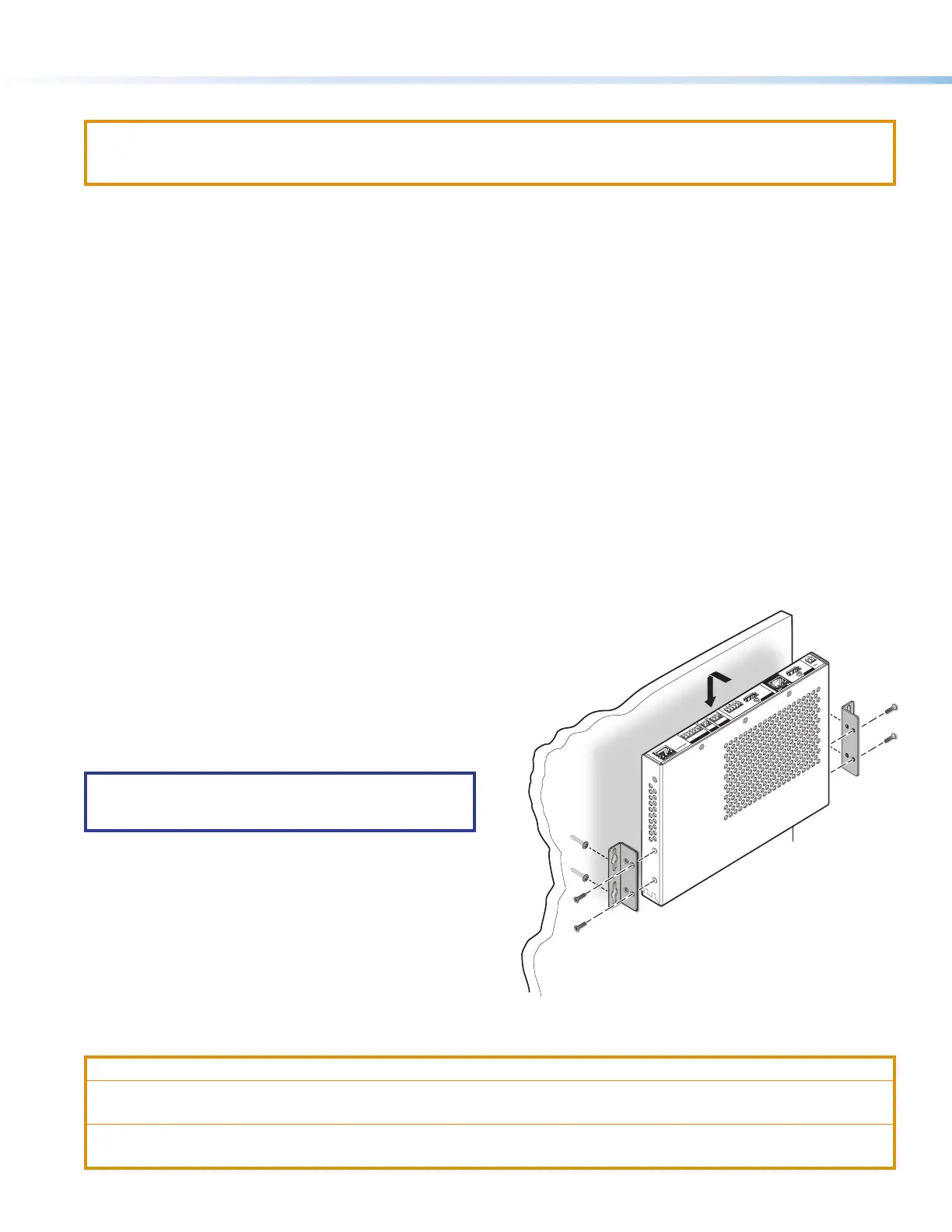

Figure 5. Mounting the Receiver
Rev. B: Changed
French text in the
second Attention
per Christele.
