FOX3SR 301 and FOX3SR311 Scaling Receivers • Configuration Software 37

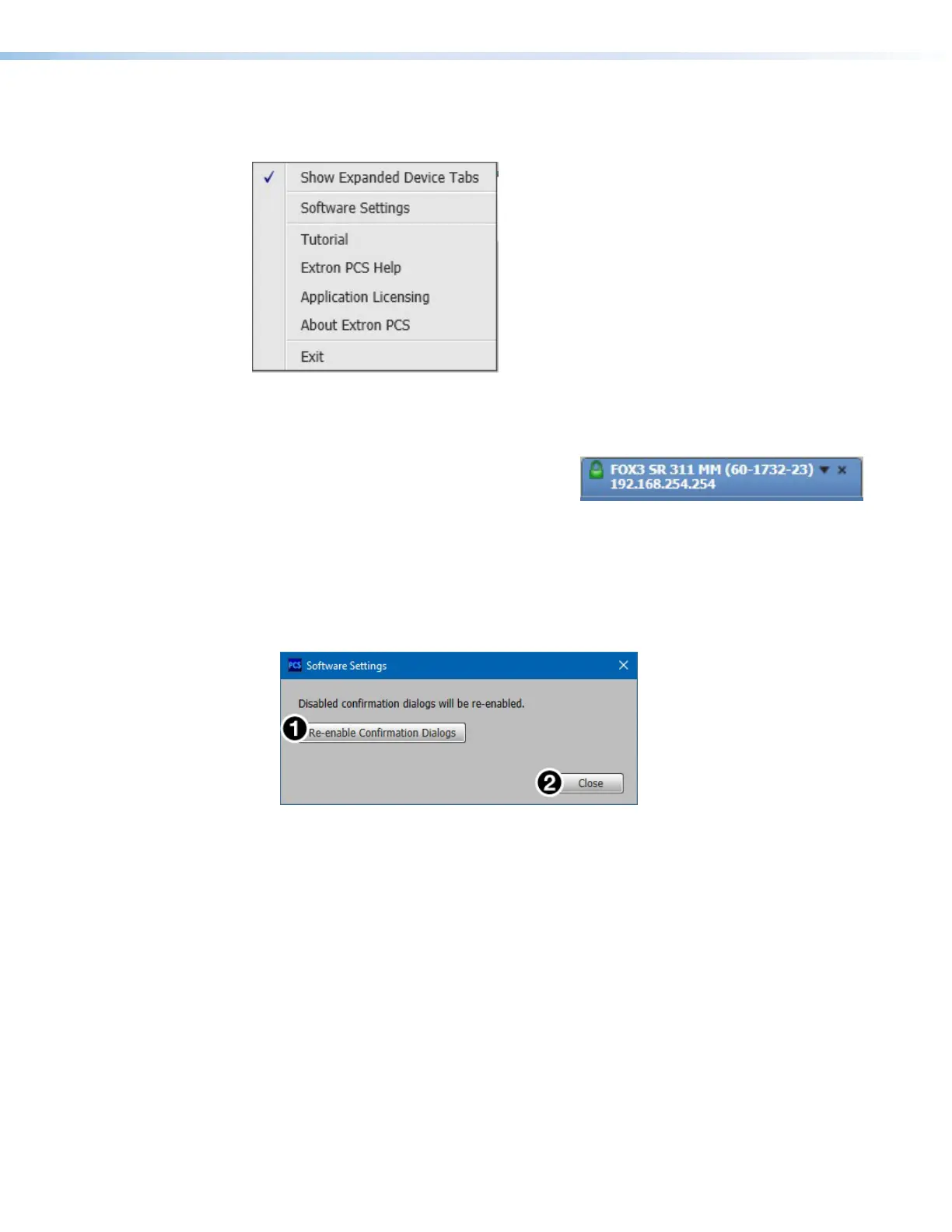

Software Menu
The Software menu (see figure27) contains options pertaining to PCS settings.
Figure 27. PCS Software Menu
Show Expanded Device Tabs
Selecting Show Expanded Device Tabs from
the Software menu displays the device IP
address or connection method in the Device
tab.
Figure 28. Expanded Device Tab
Software Settings
This option resets all disabled confirmation dialogs to the default settings.
1. From the Software menu, select Software Settings. The Software Settings
dialog box opens.
Figure 29. Software Settings Dialog Box
2. Click the Re-enable Confirmation Dialogs button (see figure29,
1
). The dialog
box closes and the reset is complete.
Alternatively, click the Close button (
2
) to close the dialog box without re-enabling the
confirmation dialogs.
Tutorial
Display a general overview of where to find features in the PCS framework.
1. From the Software menu, select Tutorial. The Tutorial dialog box opens.
2. Click the I Get It! button to close the dialog box.
Extron PCS Help
Open the PCS help file for general PCS operations.
From the Software menu, select Extron PCS Help.
27
28
29
