FOX3SR 301 and FOX3SR311 Scaling Receivers • Operation 16
• HDMI Format — After selecting HDMI Format, press the or buttons to select the
output format.
The format choices include:
• Auto (based on the EDID of the sink) (default)
• DVI RGB 444 (no audio, no Infoframe)
• HDMI RGB 444 Full
• HDMI RGB 444 Limited
• HDMI YUV 444 Full
• HDMI YUV 444 Limited
• HDMI YUV 422 Full
• HDMI YUV 422 Limited
• Test Pattern — Press the navigation buttons to select an available test pattern
to display or turn a test pattern off. The options are Crop, Alternating Pixels,
Crosshatch, Color Bars, and Grayscale 32 Level. The default setting is Off.
NOTE: When a test pattern is activated, the test pattern image overrides the input
video signal. However, the input video signal is still visible when the crop pattern is
selected.

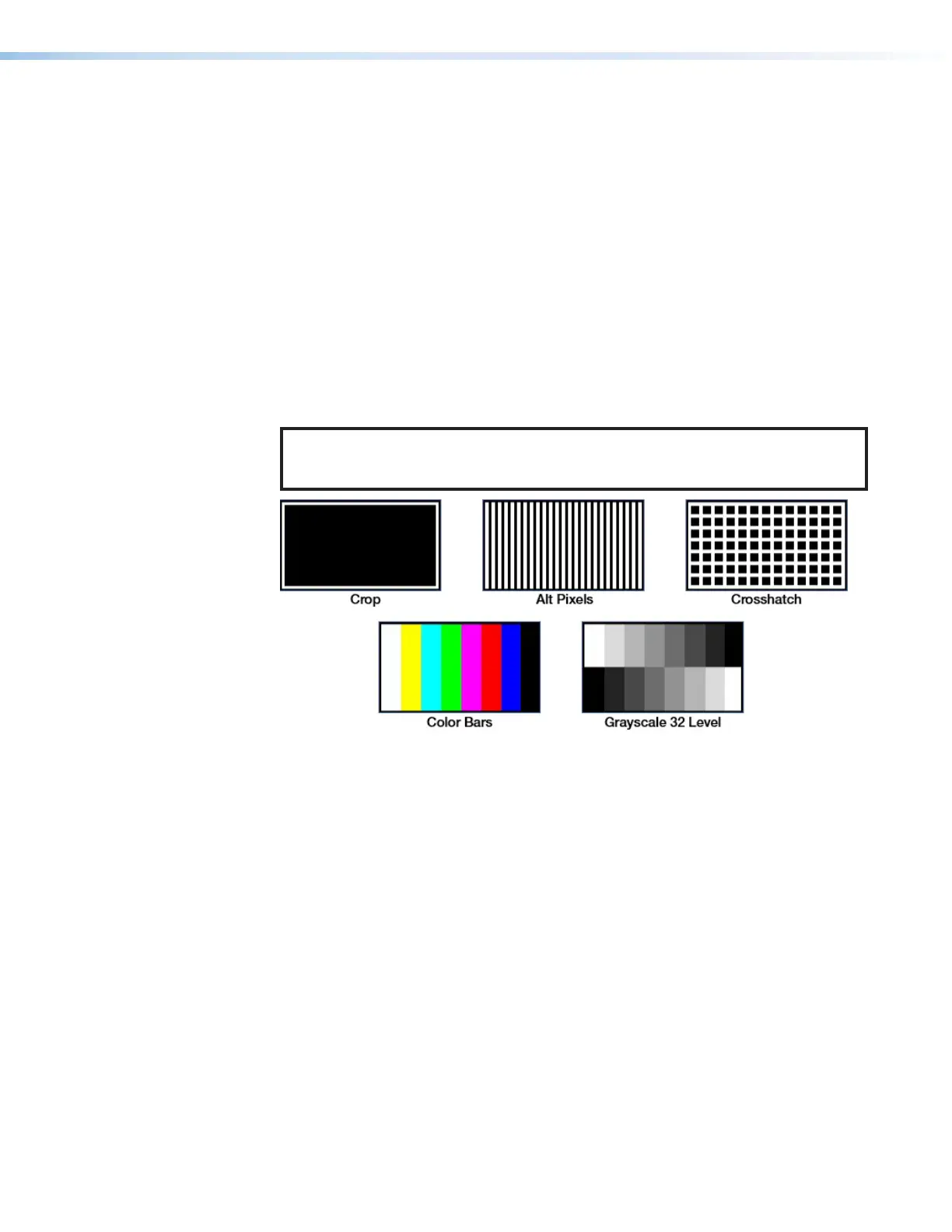

Figure 14. Test Patterns
• Factory Reset — Resets the unit to its factory default values (removing any user-
specified values) while retaining all TCP/IP settings.
To reset using the OSD menu, press and hold the ENTER button until Factory Reset is
displayed (approximately 5seconds). The message remains for approximately 1minute
after the reset is complete to allow time for the display device to sync with the FOX3
output.
14
