The Communication Setup window closes and the FOX Extender Windows
Control Program window opens (see figure 13 below).

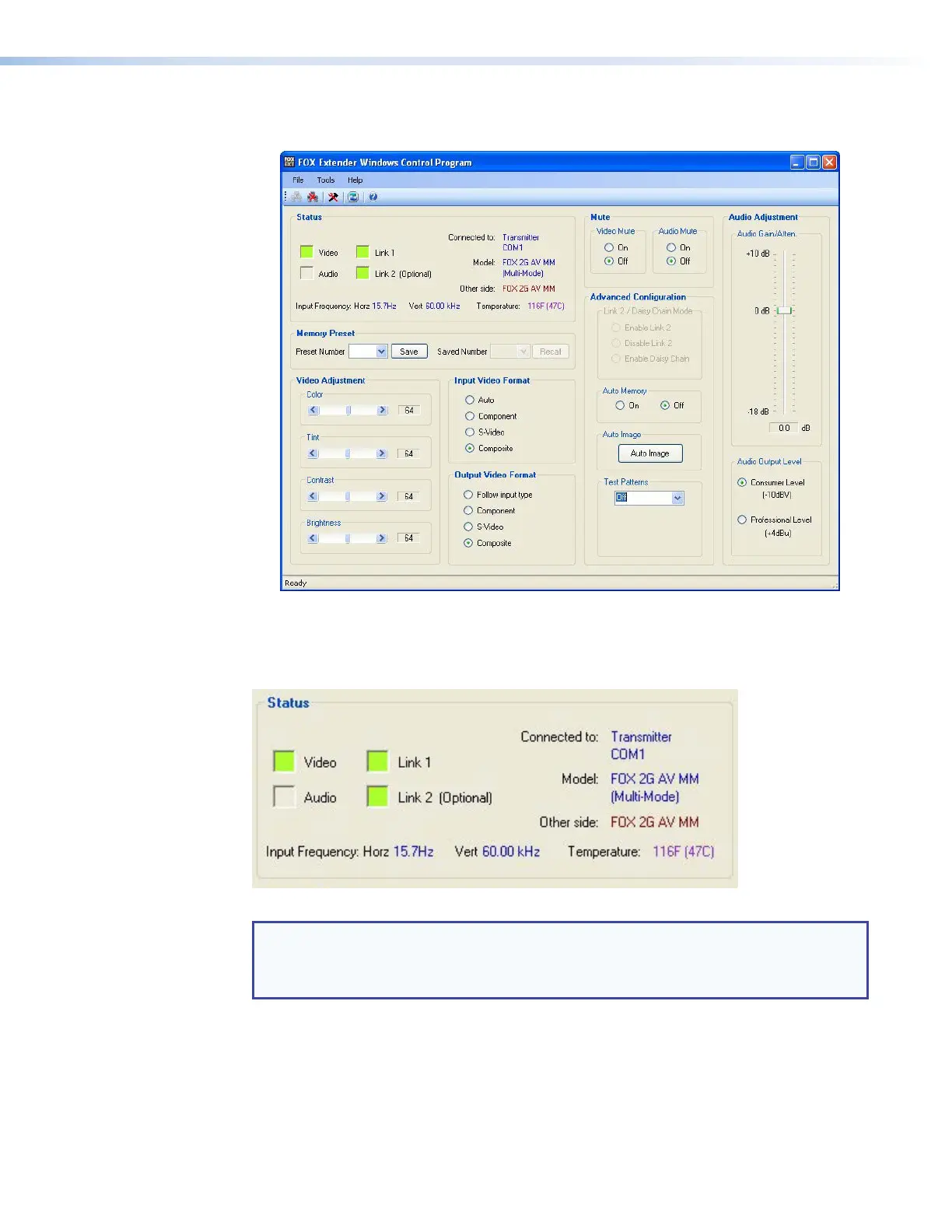

Figure 13. FOX Extender Windows Control Program Window
Status area
The Status area provides visual indications of the connection status:
Figure 14. Status Area
NOTE: Only link 1, connecting the Tx port of the transmitter to the Rx port of the receiver, is
required for video, audio, and serial command transmission. Link 2 is not required but, if
it is not enabled, the ability to configure the system is limited by a lack of communication
from the receiver to the transmitter.
Video present indicator — shows green to indicate the presence of composite, S-video, or
component video signals.
Audio present indicator — shows green when the transmitter detects an audio signal at
or more than 35 dB below the nominal level. Stays on until the signal falls below this threshold
continuously for 10 seconds.
Loop-out indicator — only visible if the computer is connected to the receiver.
FOX Tx/Rx AV • Configuration 21
