As an alternative to the front panel TRS port, the RS-232 Remote port, on the rear panel, uses
three connectors in a 5-pole captive screw connector.
FunctionPin
Tx
Rx
Gnd
Transmit data
Receive data
Signal ground
Controlling
Device
Ground ( )
Receive (Rx)
Transmit (Tx)
Bidirectional
REMOTE
Tx Rx
Do not tin the wires!
O
VER FIBER
Ground ( )
Receive (Rx)
Transmit (Tx)
Tx Rx
RS-232

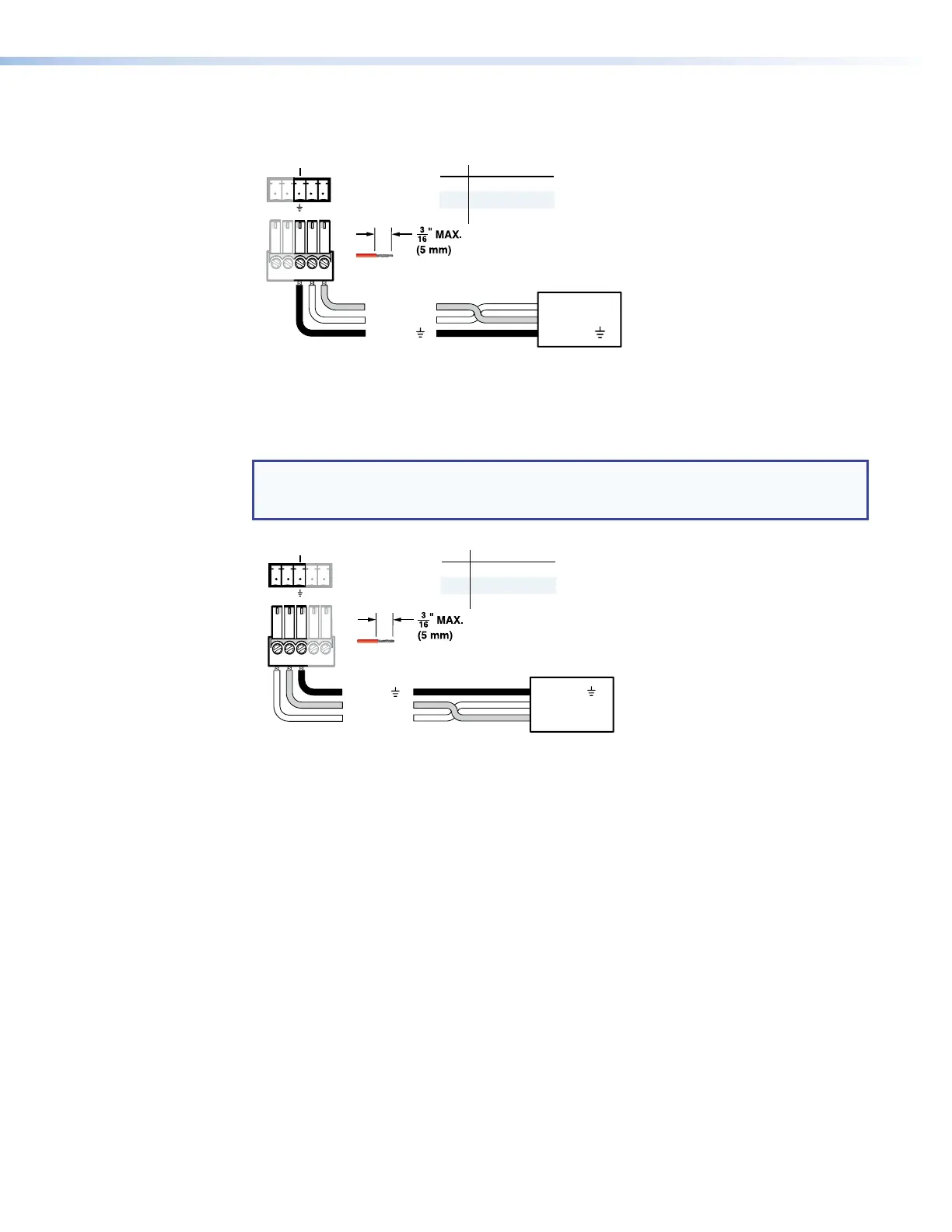

Figure 8. Rear Panel RS-232 Remote Port
In addition, on the rear panel, the units have RS-232 Over Fiber pass-through ports. These ports
allow RS-232 commands to be passed from the control device to remote devices over the fiber
optic cable with speeds up to 115 kbps.
NOTE: The FOX Tx/Rx AV does not respond to, or generate a response to, any commands
passed through the “RS-232 Over Fiber” ports. Refer to the user guide of the device being
controlled for the appropriate SIS commands.
FunctionPin
Tx
Rx
Gnd
Transmit data
Receive data
Signal ground
Ground ( )
Receive (Rx)
Transmit (Tx)
Bidirectional
Tx Rx
Do not tin the wires!
Tx Rx
REMOTE
O
VER FIBER
Controlling
Device
Receive (Rx)
Transmit (Tx)
Ground ( )
RS-232
Figure 9. Captive Screw Connection for Rear Panel RS-232 Over Fiber Port
FOX Tx/Rx AV • Configuration 12
