Panel Features
and Connections
This section of the user guide describes:
• FOX Tx/Rx AV Front Panel Features
• FOX Tx/Rx AV Rear Panel Connections
FOX Tx/Rx AV Front Panel Features
Figure 2 shows the front panel features of the FOX Rx AV. The FOX Tx AV is identical except that
the Follow LED is replaced by Auto (
B
) and it does not have a Loop-out LED (
D
).
AABBCCDDEE
FOX Rx AV
VIDEO FIBER OPTIC RECEIVER
COMPOSITE
FORMAT
S-VIDEO
COMPONENT
AUDIO
LOOP-OUT
FOLLOW
CONFIG

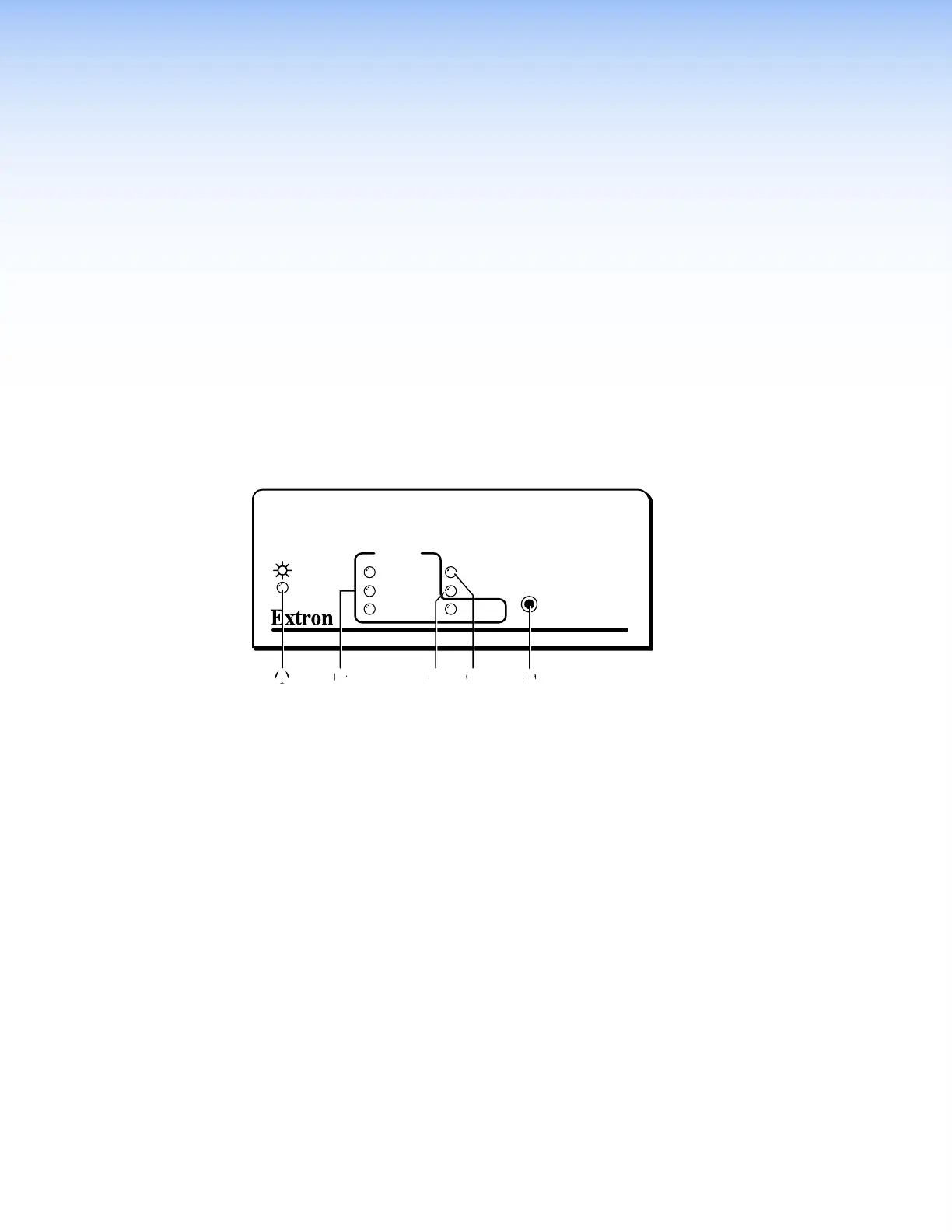

Figure 2. FOX Rx AV Front Panel Features
A
Power LED — lights green when the unit is receiving power.
B
Video Format LEDs — these LEDs show signal presence and type. The receiver LEDs are
Composite, S-Video, Component, and Follow. The transmitter LEDs are Composite,
S-Video, Component, and Auto.
C
Audio LED — lights when the transmitter detects an audio signal at or above 35dB below
the nominal level. It stays on until the signal falls below this threshold continuously for 10
seconds.
D
Loop-Out LED — this LED is only on the receiver and indicates that the unit is in the Daisy
Chain mode.
E
Config Port — this 2.5 mm mini jack connector is an alternative to the rear panel RS-232
connections for configuring the units, using SIS Commands (see page 14) or the FOX
Extender Control Program (see page 20).
FOX Tx/Rx AV • Panel Features and Connections 4
