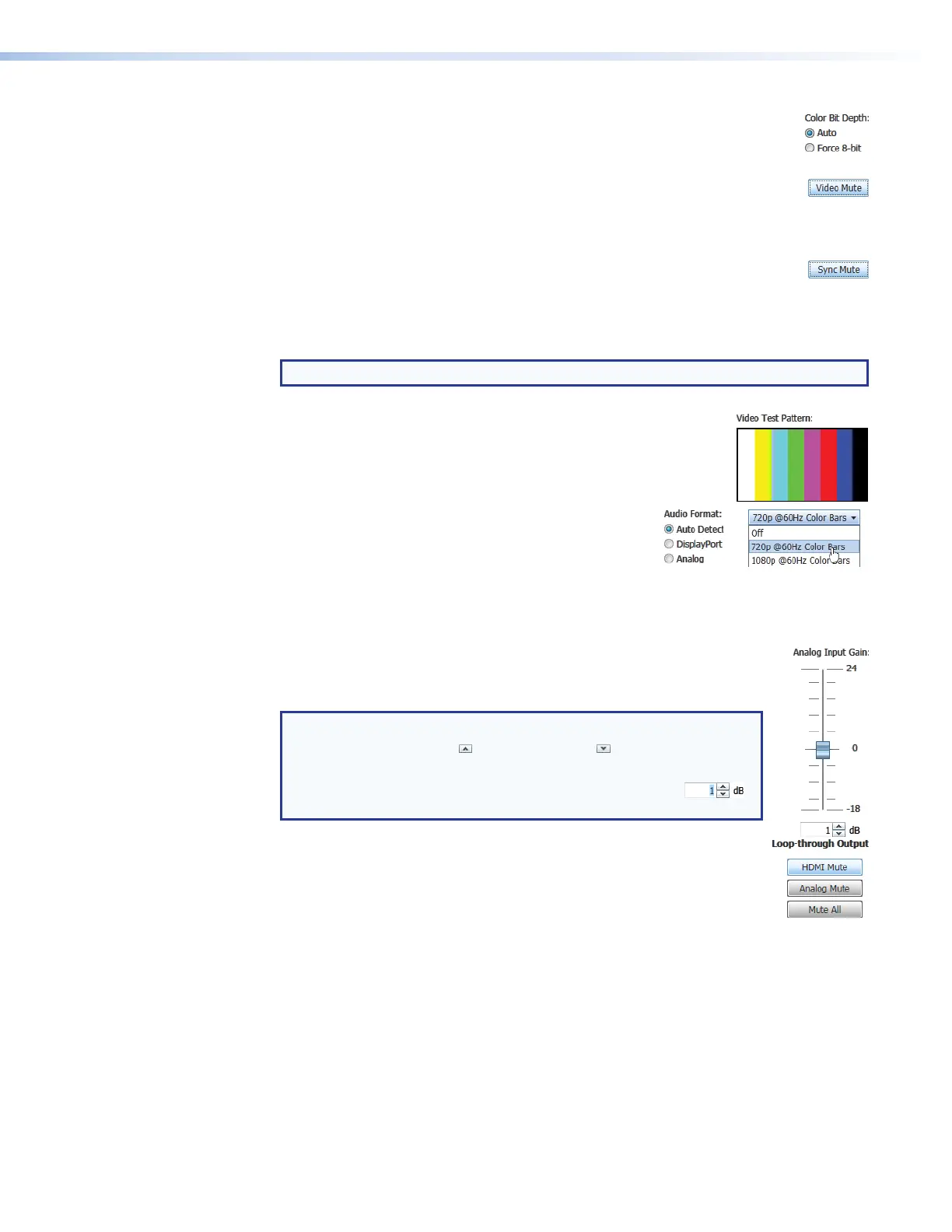

FOX II T HD 4K Transmitter • Remote Control 26
4
Color Bit Depth radio buttons (see figure 16 on the previous page) —
Select the Auto radio button for the transmitter to automatically follow the
input bit depth. Select Force 8-bit to constrain the bit depth.
5
Video Mute button — Click this button to toggle the video mute on and off
for the transmitter Loop-through output port. Video mute sends black video
while maintaining sync timings from the input video signal. Embedded audio continues
to be output.
6
Sync Mute button — Click this button to toggle the video mute on and off
for the transmitter Loop-through output port. Sync mute disables the sync
output, allowing the display to go blank and, eventually (depending on the timeout
parameters set in the connected display) go into standby or sleep mode. Embedded
audio is also muted.
NOTE: Video Mute cancels Sync Mute and Sync Mute cancels Video Mute.
7
Video Test Pattern drop-down list — Click the Video Test
Pattern drop-down list to select among 720p and 1080p color
bars for the transmitter to send to the receiver on the fiber cable.
Or select Off to transmit the digital video that is input on the HDMI
input port.
8
Audio Format radio buttons —
Auto Detect radio button — Transmit the embedded
digital audio if detected, otherwise transmit analog
audio.
HDMI radio button — Transmit the embedded digital audio.
Analog radio button — Transmit the analog audio.
9
Analog Input Gain slide control — Click and slide the Analog Input
Gain slide control to vary the input audio gain or attenuation value on the
analog input only, from -18 dB to +10 dB in 1 dB increments.
NOTE: As an alternative, you can also either:
• Click the up arrow ( ) and down arrow ( ) buttons to step the
level up and down.
• Click and highlight the value displayed in the dB field ( )
and type in the desired numeric level.
¢
Loop-through Output Mute buttons — Click the Mute buttons to
toggle the following mute functions on and off:
HDMI Mute — Mute the signal on the Loop-through HDMI Output port.
Analog Mute — Mute the signals on both Loop-through
analog audio output ports.
Mute All — Mute the signals on the Loop-through HDMI Output port and both analog
audio output ports.
