FOX II T HD 4K Transmitter • Installation and Operation 11
Alarm connection
ALARM
Tx Rx 1 2
Pin 1 and pin 2 are
shorted together when
no light is detected.
Do not tin the wires!
RS-232
OVER FIBER

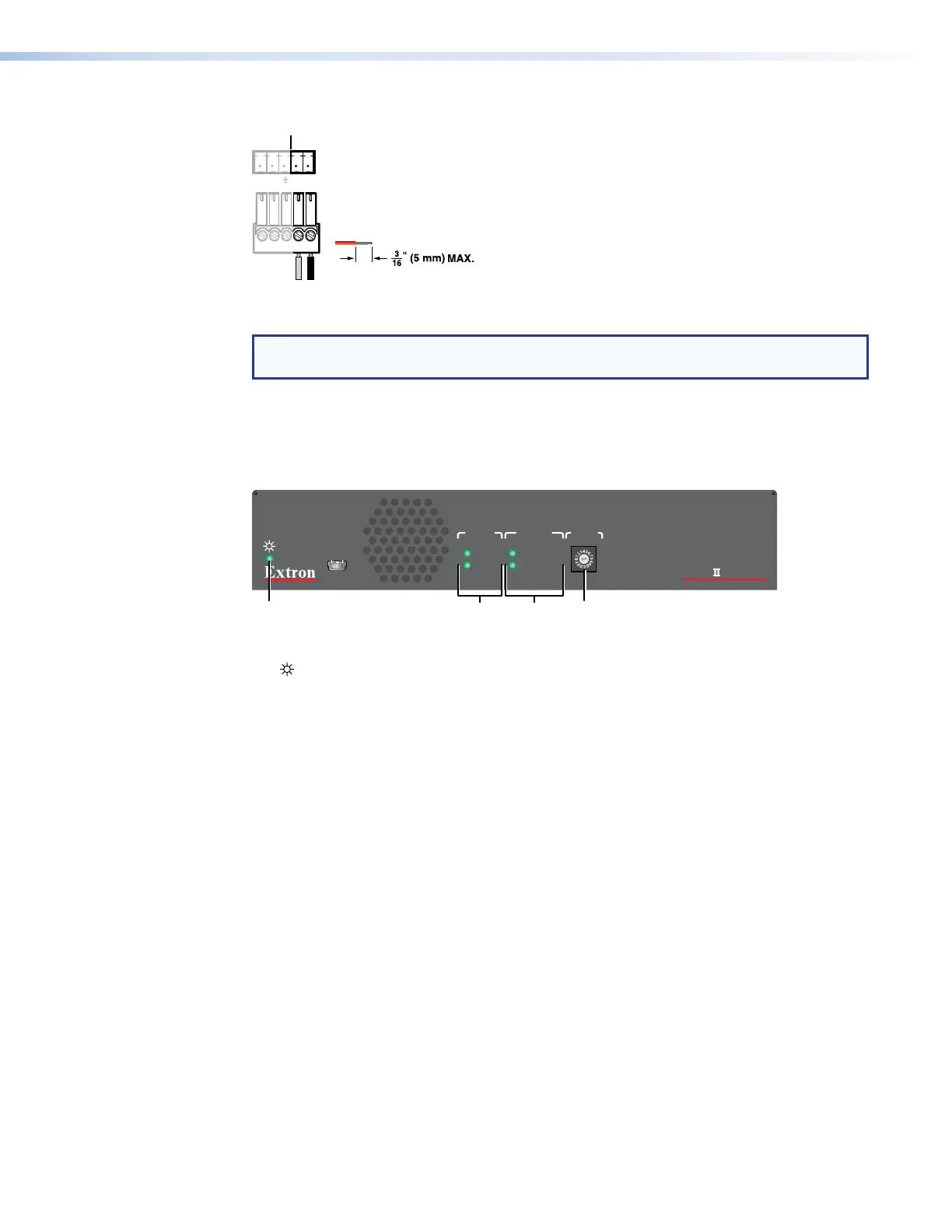

Figure 8. Alarm Connector
NOTE: The length of exposed wires is important (see the RS-232 and IR connector
NOTES on page 9 for more information).
Indications and Operation
Front Panel Features
CONFIG
SELECT
SIGNAL
VIDEO
HDMI FIBER OPTIC TRANSMITTER
AUDIOEDID
HDCP
INPUT
RETURN OUT
FOX T HD 4K
AA DDBB CC
Figure 9. FOX II T HD 4K Front Panel Features
A
(power) indicator — Indicates that power is applied to the unit.
B
Video LEDs —
Signal LED — Lights when the transmitter detects an active signal on its video input.
HDCP LED — Lights when the input signal is HDCP encrypted.
C
Audio LEDs —
Input LED — Lights when an analog audio or PCM digital audio signal remains above
-35 dBV. The LED goes dark if the audio signal level drops below the threshold for 10
seconds or longer.
Return Out LED — Lights when analog audio is present on the Audio Return Output
connector.
