FOX II T HD 4K Transmitter • Installation and Operation 5
Installation and
Operation
This section details the installation of the FOX II T HD 4K transmitter, including:
• Installation Overview
• Connections
• Indications and Operation
Installation Overview
Follow these steps to install and set up an Extron FOX II T HD 4K transmitter for operation:
c Turn off all of the equipment. Ensure that the video sources and the output display are
all turned off and disconnected from the power source.
c Mount the transmitter (see Mounting the Unit on page 32).
c Connect the cables and configure the units (see “Connections”).
c Plug in the power supplies, then turn on the display and the input.
Connections
Rear Panel
100-240V ~ 0.5A MAX
50-60 Hz
HDMI LOOP THRU
LR
RS-232
OPTICAL
Tx
RESET
LINK
LINK
Rx
RS-232 IR
ALARM
Tx Rx G1 2
LR
Tx Rx Tx RxG
AUDIO
INPUTS
AUDIO
RETURN OUT
OVER
FIBER
REMOTE
FOX T HD 4K
II AA HH
EE
GGFFDDBB CC

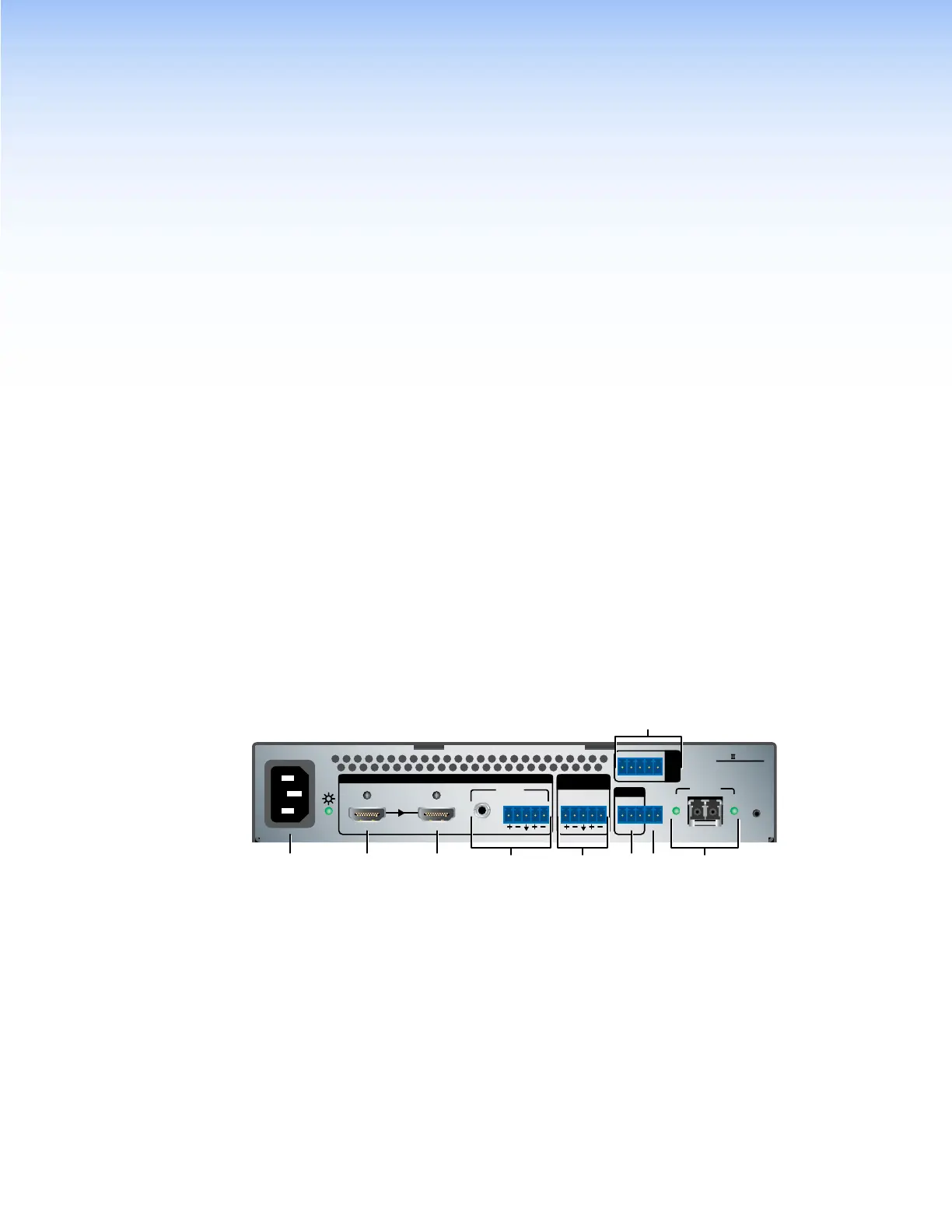

Figure 2. FOX II T HD 4K Transmitter Rear Panel Connectors
A
HDMI input port (see page 6)
F
Remote RS-232 port (see page 6)
B
Loop-Thru port (see page 6)
G
Alarm port (see page 6)
C
Analog Audio input ports (see page 6)
H
Optical port and LEDs (see page 7)
D
Audio Return Out port (see page 6)
I
Power connector (see page 7)
E
Over Fiber port (see page 6)
