Installation
Step 1 — Installing the Junction Boxes
ATTENTION:
• Installation and service must be performed by authorized personnel only.
• L’installation et l’entretien doivent être effectués uniquement par le personnel autorisé.
• Extron recommends installing the ECM S10 into a grounded, UL Listed electrical junction box.
• Extron recommande d’installer le ECM S10 dans un boîtier d’encastrement électrique mis à la terre, certié UL.
• Follow all national and local building and electrical codes that apply to the installation site.
• Respectez tous les codes électriques et du bâtiment, nationaux et locaux, qui s’appliquent au site de l’installation.
Once the precise locations for the transmitter and receiver have been determined (see Considerations for Placing the ECM S10
on the previous page), install two 1-gang junction boxes (US, EU, or MK) in the ceiling. One junction box is for the receiver and
one is for the transmitter (see gure 6).
The junction boxes must be aligned so that the tops and bottoms face each other, on either side of the room partition. Ensure the
junction boxes are aligned so that, when the partition is open, the signal from the transmitter can be detected by the receiver.
The distance between the two boxes must not exceed 10 feet (3 meters).
Maximum distance
10 feet (3 meters)
Junction box
Short ends facing each other
Junction boxes are aligned
Partition
TOP VIEW
PARTITION PATH
CEILING
Maximum distance
10 feet (3 meters)
Junction box
Short ends facing each other
Junction boxes are NOT aligned
Long ends facing each other

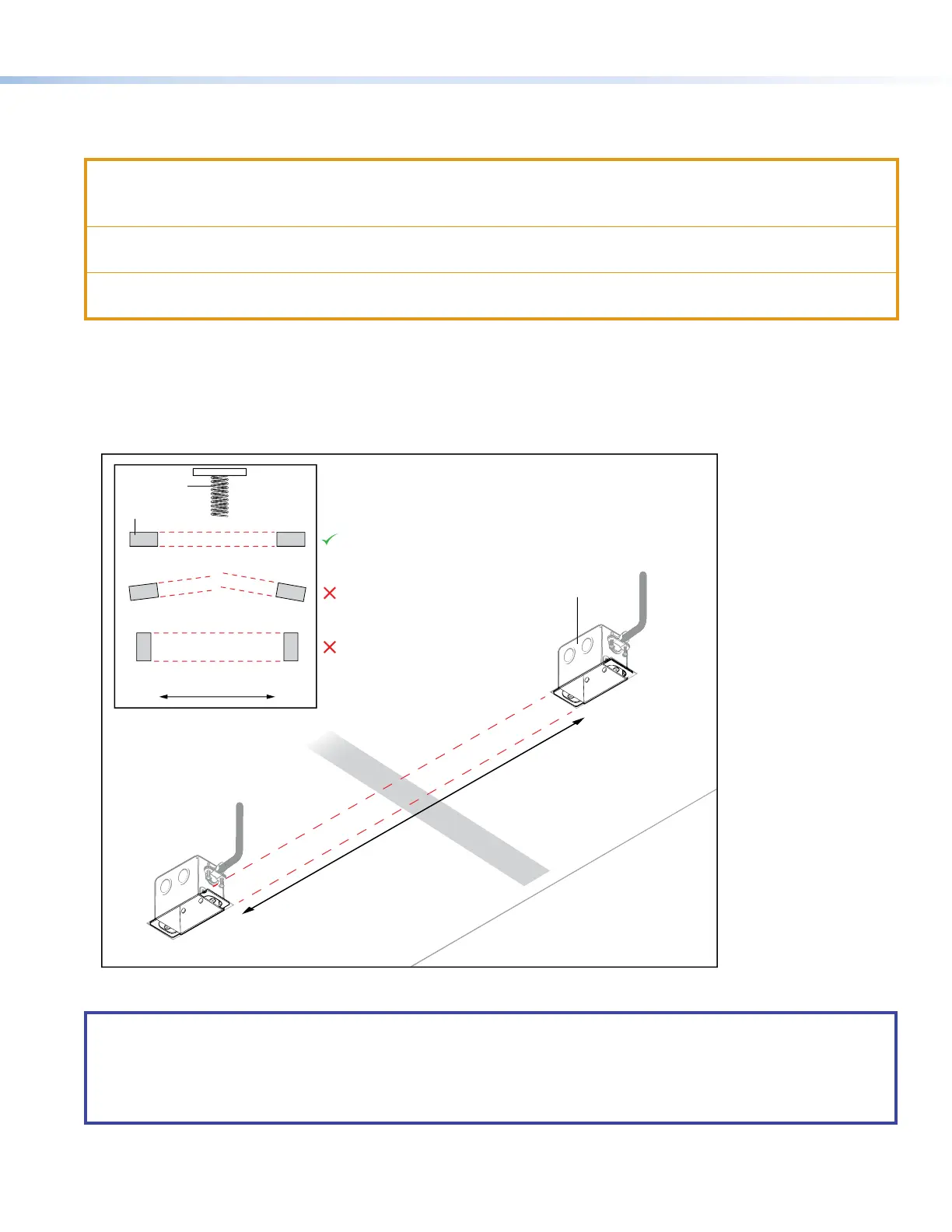

Figure 6. Installing the Junction Boxes
NOTES:
• For the installation to meet UL requirements and to comply with National Electrical Code (NEC), the ECM S10 must be
installed in a UL Listed junction box (not included with the ECM S10).
• The junction boxes must be purchased separately by the end user or installer.
• The junction boxes must be installed by following the instructions provided by the manufacturer.
The transmitter and receiver should be connected, using a plenum-rated serial control cable. If the cable is not plenum-rated, it
must be contained within a conduit run between the two junction boxes.
