DTP T USW 333 • Introduction 1
Introduction
• About this Guide
• About the DTP T USW 333 Switcher
• Features
About this Guide
This guide describes the Extron DTP T USW 333 switcher with an integrated DTP transmitter. The switcher
outputs a signal to a compatible DTP receiver. This guide describes how to install, operate, and configure the
switcher.
NOTE: In this guide, the DTP T USW 333 is commonly referred to as a “switcher” or a “switching
transmitter.”
About the DTP T USW 333 Switcher
The DTP T USW 333 is a 3 input VGA and HDMI switcher with a DTP transmitter output
(see figure 1). It switches among one analog VGA and two HDMI inputs, including embedded audio (or DVI
video with the appropriate adapters). The switcher converts the selected input, an optional analog audio input,
and bidirectional RS-232 and infrared (IR) control signals to a proprietary digital signal. It outputs the signal to
a compatible DTP receiver. The switcher and receiver extend the usable distance of video, audio, and control
signals up to 330 feet (100 meters) over a single shielded twisted pair cable (STP).
AUTO SW
CONFIG
IR OUT
HDMI IN
AUDIO IN
S
G
HDCP
1
HDMI IN
AUDIO IN
HDCP
1
2
TLP 1000
TV
IPCP 505
IN1608
DTP HDMI 230 Rx
Projector
100-240V ~ -- A MAX
1
2
CONFIGURABLE
HDMI
HDMI
5
7
8
C
RS-232 IR
RS-232IR
Tx Rx Tx RxG
Tx Rx Tx RxG
Tx Rx Tx RxG
HDMI
A
B
3
INPUTS
OUTPUTS
Tx Rx
RS-232
G
LAN
2x25W(8Ω)/2x50W(4Ω)
RESET
AUDIO INPUTS
OUTPUTS
REMOTE
LL1R R
L2
R
L
3
R
CLASS 2 WIRING
L4
R
L5R
+48V
+48V
12
LR
VARIABLE
IN1608 SA
2
MIC/LINE
L6
R
SIG LINK
DTP IN
SIG LINK
DTP IN
SIG LINK
DTP OUT
50/60 Hz
RS-232IR
OVER DTP
OVER DTP
OVER DTP
AMPLIFIED OUTPUT
VOLUME
SCALING PRESENTATION SWITCHER
IN1608
INPUTS
1
HDCP
SIGNAL
OUTPUTS
ENTER
MENU
Extron
2 3 4 5 6 7 8 A B C
INPUTS
1 2 3 4 5 6 7 8
CONFIG
Extron
DTP T USW 333
Transmitter
Extron
DTP T HWP 232 D Tx
Transmitter
Ethernet
Network
LR
POWER
12V
0.7A MAX
AUDIO
SIG LINK
DTP IN
OUTPUTS
XTP DTP 24 Cable
230'
230'
230'
HDMI
12345678
100
LINK
ACT
COM
IR/S
TX
RX
TX
RX
RTS
CTS
R
5
1
6
2
7
3
8
4
RELAY
FLEX
I/O
5
1
6
2
3
1
4
2
eBUS
ACT LIMIT
OVER
SWITCHED
12VDC
3
1
4
OVER
2
LIMIT
IR
7
3
8
4
IPCP 505
I
N1
608
Tx
Rx
G
DTPIN
5
0
/
60 H
z
E
xtron
D
TP T U
S
W 333
T
ransmitter
XTPDTP 24 Cabl
e
2
230
'
AUTO
SWITCH
DTP T USW 333
1
2 3
CONFIG
231
STATUS
SIGNAL
HDCP

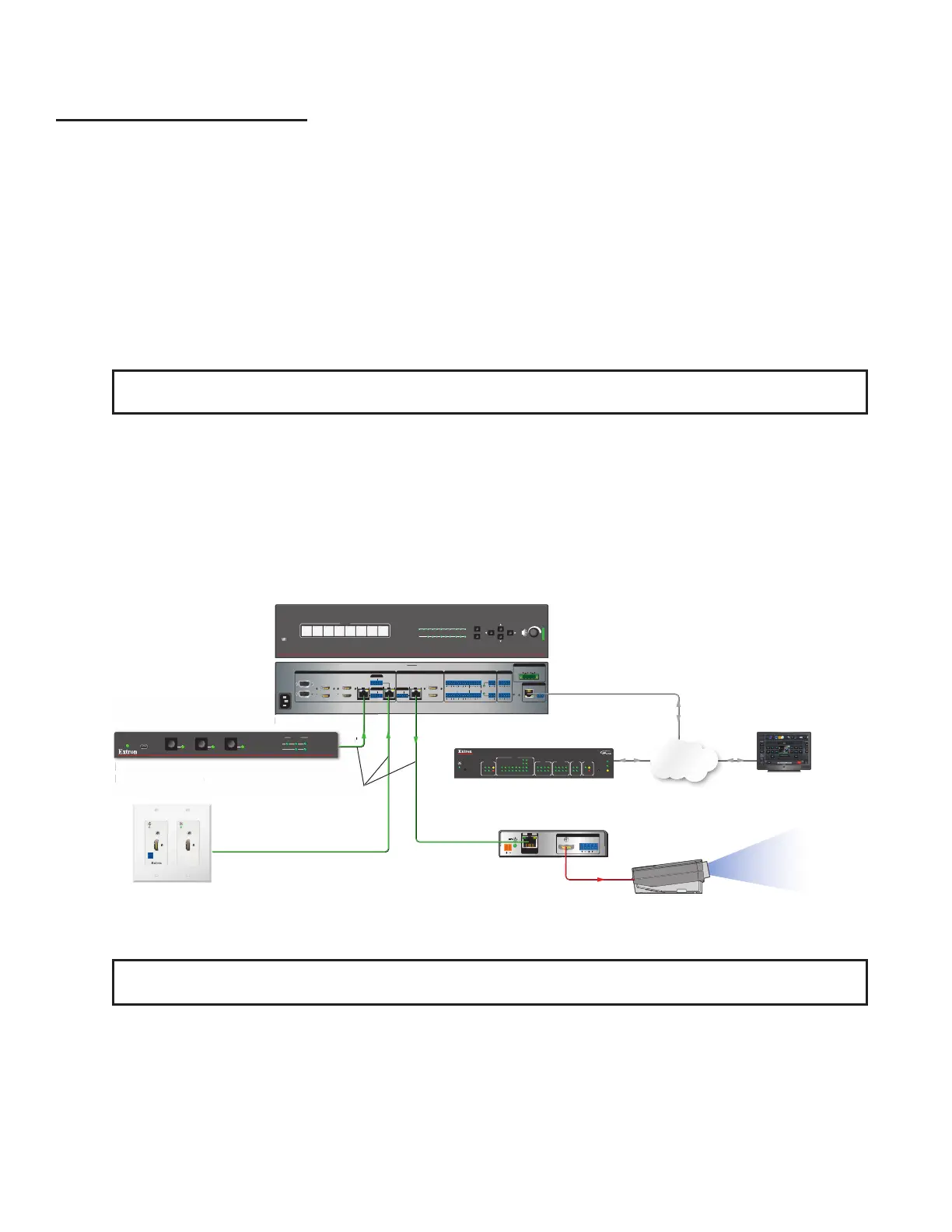

Figure 1. Typical Switching Transmitter Application
NOTE: In figure 1, the effective range between the DTP T USW 333 and the IN1608 is 230 feet
(70 meters). This is the range limitation of the IN1608, not the DTP T USW 333.
The DTP T USW 333 is housed in a half rack width metal enclosure. It can be set on a tabletop, mounted in a
rack, or mounted under or through furniture.
The included external desktop 12 VDC power supply accepts 100 to 240 VAC, 50-60 Hz. A single power
supply connected to either unit can power both units through the STP cable.
1
