Symbols Used in this Guide
When programming in the field, certain characters are most conveniently represented by
their hexadecimal rather than their ASCII values. The table below shows the hexadecimal
equivalent of each ASCII character:
ASCII to Hex Conversion Table
•
Space

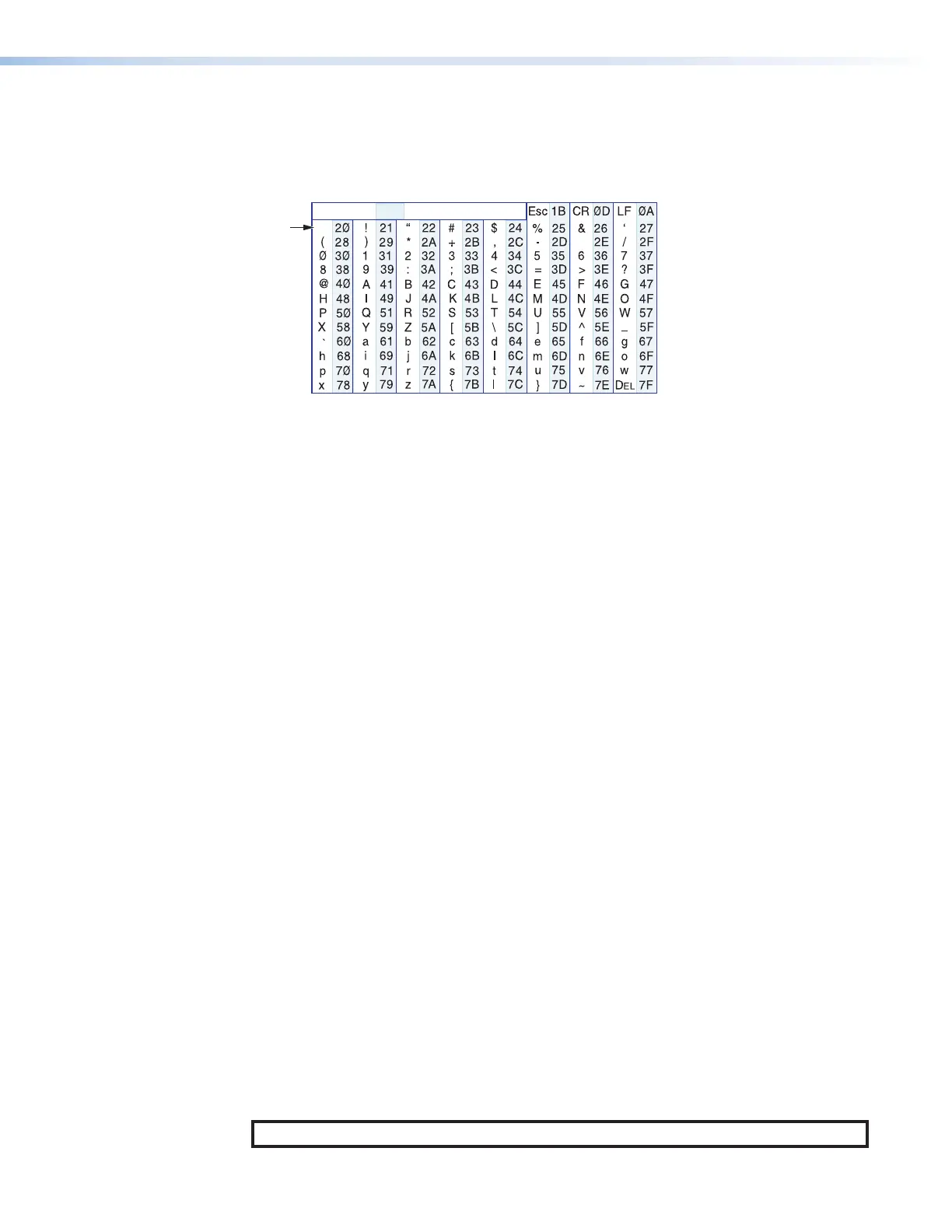

Figure 4. ASCII to HEX Conversion Table
] — Carriage return with line feed (hex 0D 0A)
| or } — Pipe character or carriage return (no line feed) can be used interchangeably
(hex 0D)
• — Space character (hex 20)
W or E — Upper case W or Escape key can be used interchangeably (hex 1B)
X! — Input 1
X@ — Outputs 1 through 4
X# — Status
0 = Disabled, off, or undetected
1 = Enabled, on, or detected
X$ — Output reclocking data rate
0 = Automatic mode (default)
1 = 270 Mbps
2 = 1.485 Gbps
3 = 2.970 Gbps
4 = 5.94 Gbps
5 = 11.88 Gbps
X% — Data rate status
0 = 270 Mbps
1 = 1.485 Gbps
2 = 2.970 Gbps
3 = 5.94 Gbps
4 = 11.88 Gbps
5 = Other
X^ — Device Name. Text string of up to 24 characters (default = DA4‑12G‑HD‑SDI).
Alphanumeric characters and hyphens only. No distinction between upper and lower case.
No spaces. First character must be a letter and the last character cannot be a hyphen.
X& — Verbose mode
0 = Clear/none
1 = Verbose mode (default)
2 = Tagged responses for queries
3 = Verbose mode and tagged responses for queries
NOTE: Commands are not case sensitive.
4
DA4 12G HD-SDI • SIS Commands 8
