B
SDI input — Connect the input source to the rear panel female BNC connector (see
figure2 on page3).
The input conforms to SMPTE ST‑2082, supporting data rates up to 12G‑SDI. The
DA412GHD‑SDI equalizes the input signal data rate up to the following distances:
• Up to 70 meters (230 feet) at 11.88 Gbps
• Up to 90 meters (295 feet) at 5.94 Gbps
• Up to 180 meters (590 feet) at 2.970 Gbps
• Up to 240 meters (787 feet) at 1.485 Gbps
• Up to 300 meters (984 feet) at 270 Mbps
NOTE: Transmission distances will vary depending on the signal resolution, type of
cable, source, and display used in the system.
C
SDI output — Use a BNC connector to connect up to four output displays to the
female SDI sockets on the rear panel.
Video outputs are buffered and reclocked. If the input format is unrecognized, the DA
bypasses the reclocking stage automatically and the outputs will be the same rate as
the input.
Reclocking can be bypassed completely via SIS Commands (see Reclocking on
page9).
Operations
Front Panel Features
This section describes the front panel features of the DA412GHD‑SDI.
e
CONFIG
DA4 12G HD-SDI
INPUT
270 Mbps
5.94 Gbps
1.485 Gbps
11.8 Gbps
2.97 Gbps
OTHER
B
B
B C
C
CA
A
A

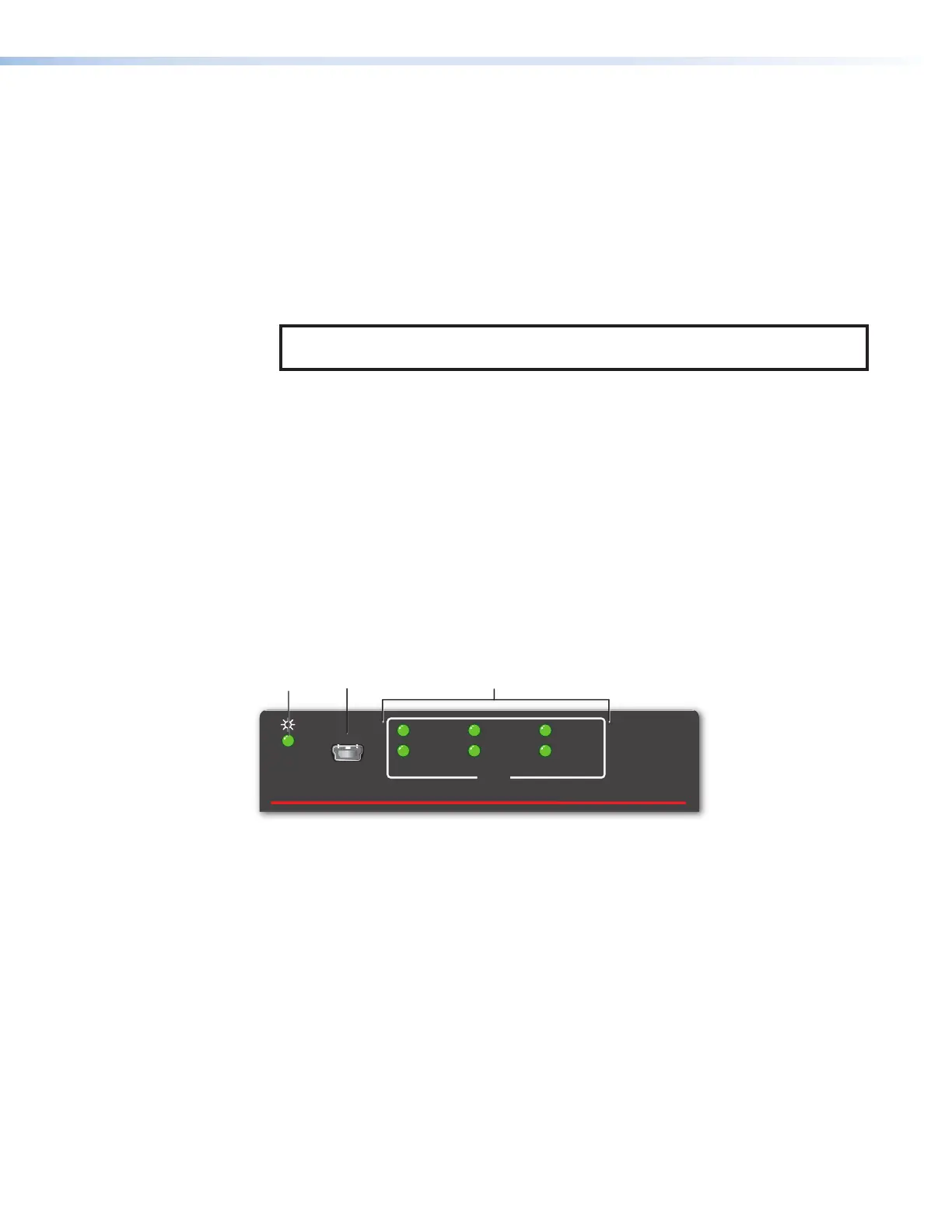

Figure 3. Front Panel Features
A
Power status LED — Lights green when power is applied to the unit.
B
USB Config port — Connect a USBA to mini‑B cable between your computer and
this female USB mini‑B port to configure and control the distribution amplifier via SIS
commands and to update the firmware.
When the USB Config Port is connected to the distribution amplifier for the first time, the
Found New Hardware Wizard opens to install the correct device driver.
C
Input data rate LEDs — Light green to indicate the data rate of the input signal. If the
input data rate is not recognized, the Input data rate LED for OTHER lights.
3
DA4 12G HD-SDI • Installation 6
