3
5. To remove a button, press a button backward through its slot in the
button plate until the membrane containing the button is free (see
1
in
the gure to the right).
6. To replace a button, align the two pegs in the button membrane with the
holes located at opposite corners of the empty slot on the back of the
button faceplate and push the button forward so it ts in the desired slot
(see
2
in the gure to the right). Ensure the button text orientation is
correct.
7. Repeat steps 5 and 6 to replace any other buttons.
8. Align the button plate with the metal mounting plate using the pegs on
the rear of the button plate as guides.
9. Snap the button plate into place.
10. Reattach the plastic faceplate using the two screws removed in step 1.
22
11
X
Step 4: Set Bus ID Addresses
+V
G
+S
-S
+V
G
+S
-
S
ACP
PWR LOAD = 1.5W
STATUS
GREEN
AMBER
RED
LINK
COM ERROR
ID ERROR
+
V
+
S G
–
S
ACP port on a
DMP Plus, or on
another ACP
endpoint
ACP Ports
• Connect up to eight (8) ACP endpoint devices per
DMP Plus.
• Wire the connectors the same at both ends.
• These ports are identical. You can connect devices
interchangeablly to either port.
• Do not exceed a total of 1000 feet (305meters) of cable for
connections between the DMP Plus and all of the ACP
panels.
• Power is provided by the IPCP Pro, a PS 1220EB power
inserter, or an Extron 12 VDC power supply.
010010
ON
123456
000001
1
ON
123456
18
Unit address
DIP switches
Binary address
Bus ID Address DIP Switches
• Use these DIP switches to set the six-bit, binary
bus address for the ACP 106 D.
• Each ACP connected to the same DMP Plus
must have a unique address.
• Switch 1 (on the left) is the highest value (32, the
the most signicant bit [labeled “MSB”]).
• Switch 6 (on the right) is the lowest (1, the least
signicant bit [labeled “LSB”]).
• Up = on = 1, Down = off = 0
Examples:

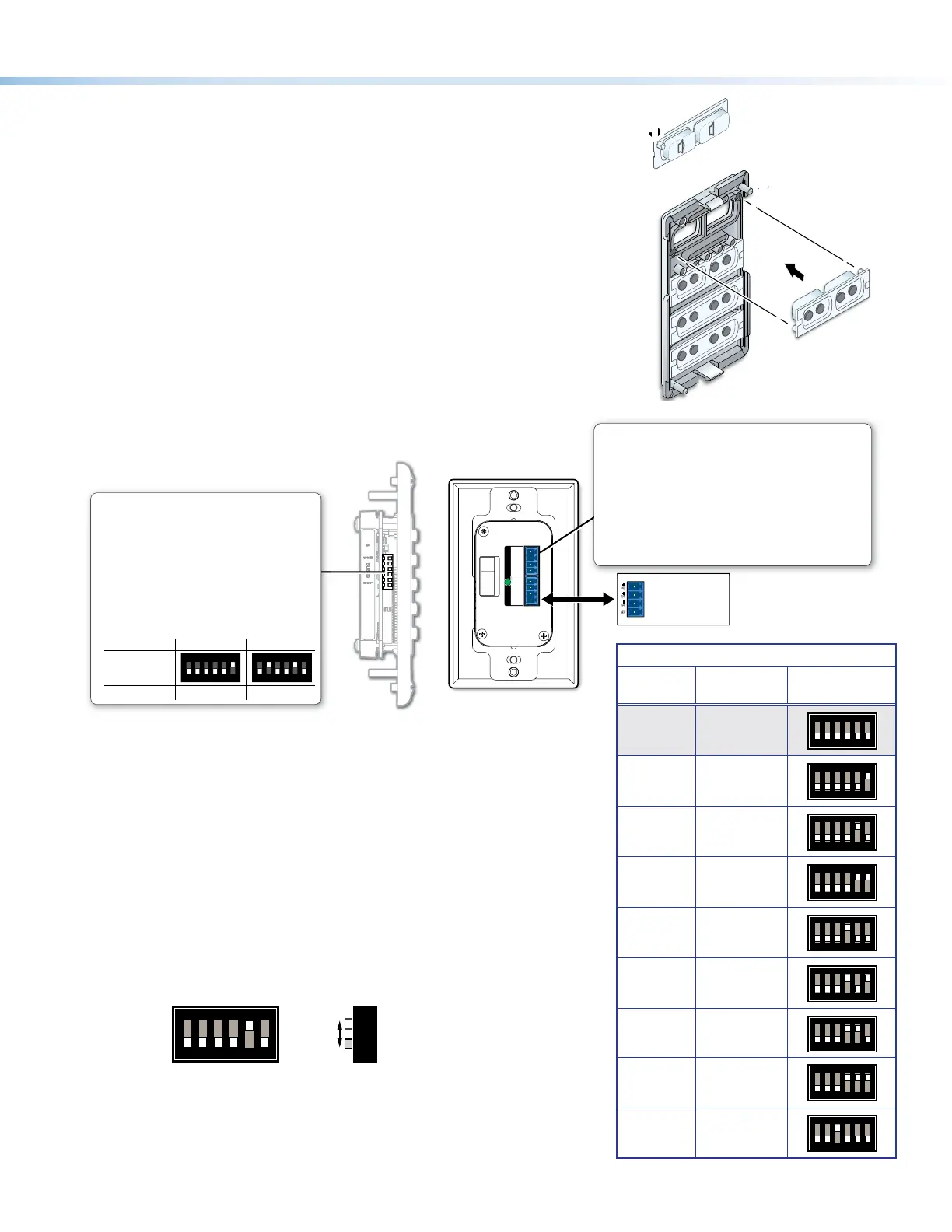

Figure 3. ACP 106 D Rear Panel and Side Bus ID DIP Switch Assembly
Set the bus identication (bus ID) DIP switches for the ACP 106 D
and any other ACP panels being connected to the system. Each ACP
device must have a unique bus ID. If multiple panels have the same bus
ID, address conicts may cause one or more of the panels to not be
recognized in DSP Congurator or by the host device. Up to eight ACP
devices can be connected in the same system.
Each ACP device in a system must have a unique six-digit binary bus ID.
ACP bus IDs are set using the DIP switch assembly on the left side of the
ACP 106 D (see gure 3).
Switch 1 on the left sets the most signicant bit (highest number, 32)
while switch 6 on the right sets the least signicant bit (the lowest
number, 1). See the example addresses to the right.
Slide
1 2
3
4
56
ON
M
S
B
L
S
B
BUS ID
Example Addresses
Bus ID
(Decimal)
Binary
Address
DIP Switch
Setting
0 000000*
1 2
3
4
56
ON
M
S
B
L
S
B
1 000001
1 2
3
4
56
ON
M
S
B
L
S
B
2 000010
1 2
3
4
56
ON
M
S
B
L
S
B
3 000011
1 2
3
4
56
ON
M
S
B
L
S
B
4 000100
1 2
3
4
56
ON
M
S
B
L
S
B
5 000101
1 2
3
4
56
ON
M
S
B
L
S
B
6 000110
1 2
3
4
56
ON
M
S
B
L
S
B
7 000111
1 2
3
4
56
ON
M
S
B
L
S
B
8 001000
1 2
3
4
56
ON
M
S
B
L
S
B
*Address 000000 is reserved for the control processor and cannot be used by any ACP devices.
