4
Deutsch Seriell RS-422/485 PCI Karte

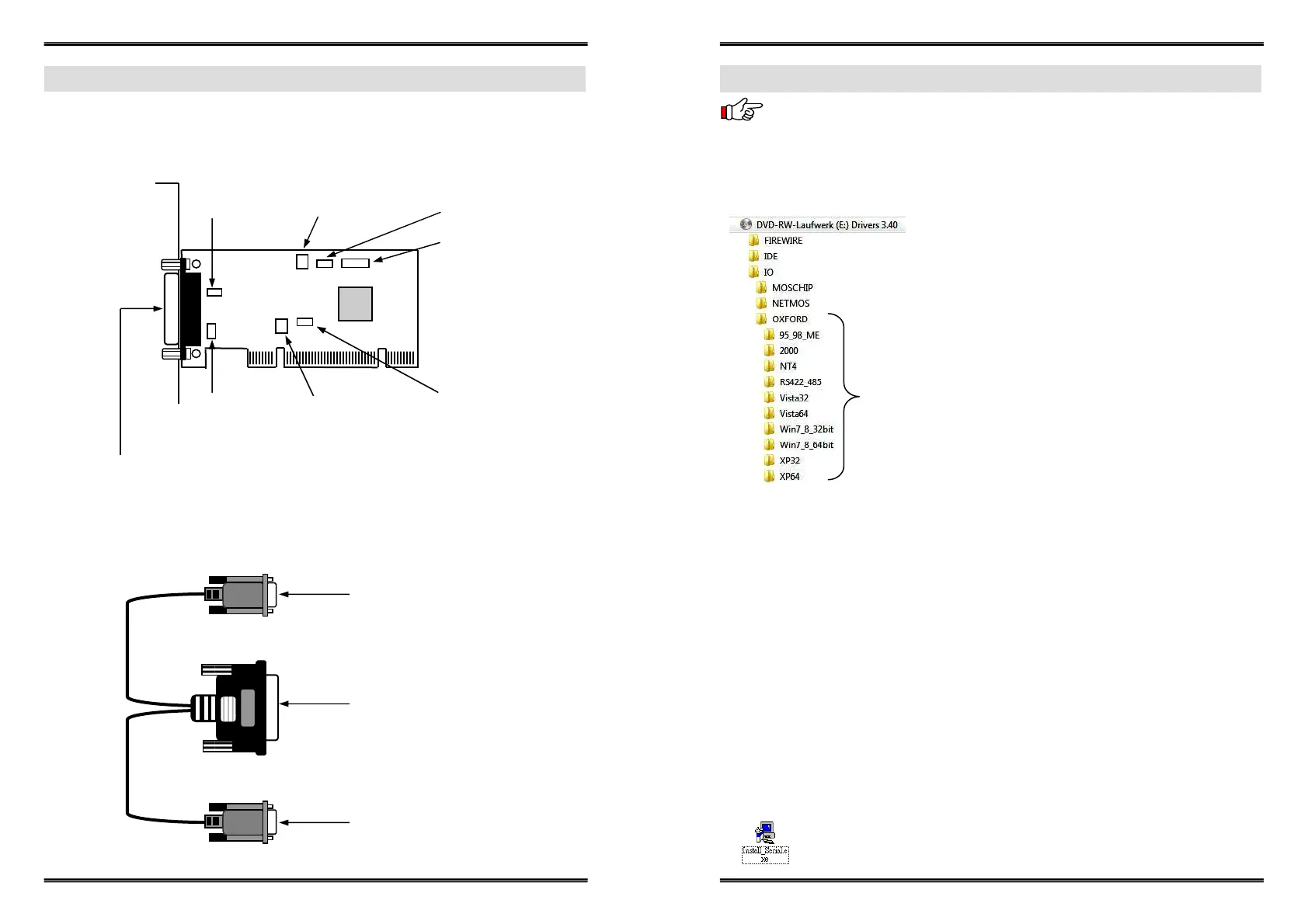

3. Layout und Jumpereinstellungen
JP7:
S1 Abschlusswiderstand
Ein/Ausschalten
S1
JP5: RS-422/485
Mode Einstellung
J2: DB25 Stecker für Octopus-Kabel 2 x 9 Pin
3.1 Layout
JP8:
S2 Abschlusswiderstand
Ein/Ausschalten
S1:
JP1 RS-485TXD Control
JP3 Echo
J1:
Nur für Testzwecke
im Werk
S2:
JP2 RS-485TXD Control
JP4 Echo
S2
JP6: RS-422/485
Mode Einstellung
3.2 Octopus Kabel (DB25 Buchse zu 2 x DB9 Stecker)
P1
P2
Port 1 (DB 9 Pin Stecker)
Port 2 (DB 9 Pin Stecker)
Zur J2 Buchse DB 25 Stecker
13
Seriell RS-422/485 PCI Board English
5. Driver Installation
PLEASE DO NOT LET WINDOWS AUTO SEARCH THE DRIVERS ON THE CD, it
will cause problems because the INF files will be conflict in this case. Instead, please
browse to the correct location (folder) manually to make sure the correct drivers are
chosen and installed correctly.
Note:
1. When the system is powered, Windows will invoke Windows’ New Hardware
Wizard. Click〝 Next 〞to continue, select〝 Install from a list or specific loca-
tion（
（（
（Advanced）
））
） 〞and click〝 Next 〞.
2. Select〝 Include this location in the search 〞then click〝
Browse 〞to speci-
fy the driver’s location for your OS (for example, XP is E:\IO\OXFORD\XP32)
and click〝 Next 〞to continue.
3. Click〝 Next 〞to continue, and click〝
Finish 〞to complete the installation.
4. To check the Installation, right click on〝My Computer〞and choose
〝Manage〞. Choose〝 Device Manager 〞and double click〝 Ports 〞.
5.1 Windows 98, ME, 2000, XP, Vista, 7, 8 and
Server 2003 / 2008
To install the Windows NT driver, please go into WinNT4 sub-directory and run
(double click) Install_Serial.exe to install all Serial Port Drivers.
Windows NT 4.0 start the Setup Program and install the driver. Restart
Windows NT again.
5.2 Windows NT 4.0
Drivers are in each corresponding folder
