Preparing the appliance for installation
Page 25 of 38

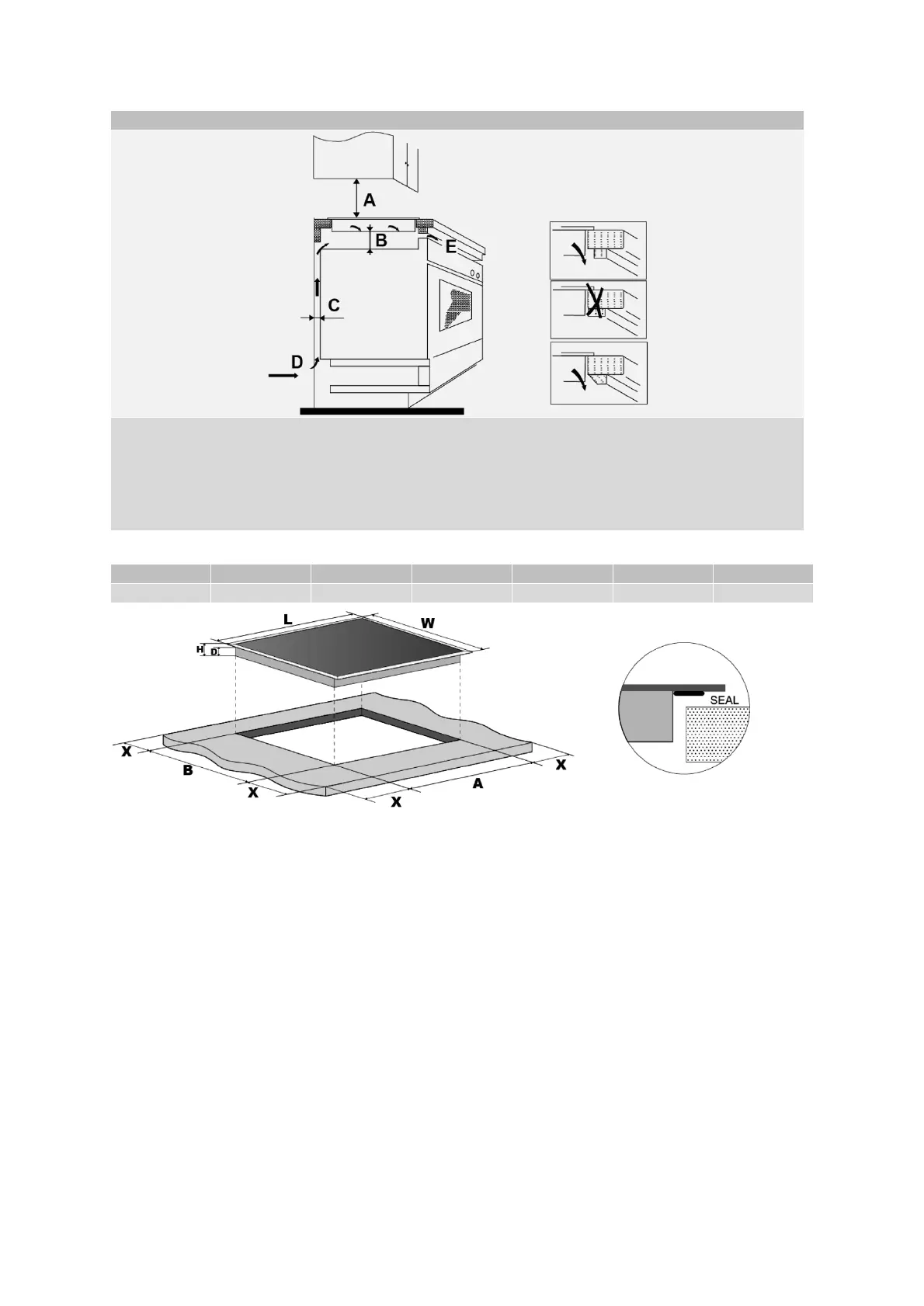

Graph I: Installation distances B1= with and without heat source
A) 760 mm
B) 50 mm
C) 20mm
D) Air inlet
E) Air outlet min. 5 m
Installation dimensions mm
L
W
H
D
A
B
X
770
520
60
56
745
495
50
Observe the following when installing the induction hob.
• Check the dimensions of the cut-out in the worktop again.
• Keep the edges of the cut-out clean and free from grease.
• Position the induction hob over the cut-out in the worktop with the residual heat
indicator facing forwards.
• The front edge of the glass ceramic hob must run parallel to the front edge of the
worktop.
• Place the hob in the prepared cut-out with the cables first
• Slowly lower the glass induction hob into the cut-out until it is lying flat on the
worktop.
• Press down the edge of the induction hob all round.
• Secure the hob to the worktop from below with:
→ 4 pcs. Retaining clamps
→ 4 pcs. screws.
• If the appliance base is accessible after installation in the base unit, you must
install a partition. Partition wall installation in compliance with the prescribed
clearances.
• However, if the installation is carried out above an oven, a partition is not
necessary. (for further instructions, see separate installation instructions)
