ASSEMBLY
HOT AIR EVACUATION TUBE
When set to air-conditioning mode, the appliance must be placed close to a window or another opening for the hot air to be
evacuated outside.
First,placetheunitontoalevelareaofoorandmakesurethatthereisadistanceofatleast45cmallthewayaroundthe
unit as well as a power socket nearby.

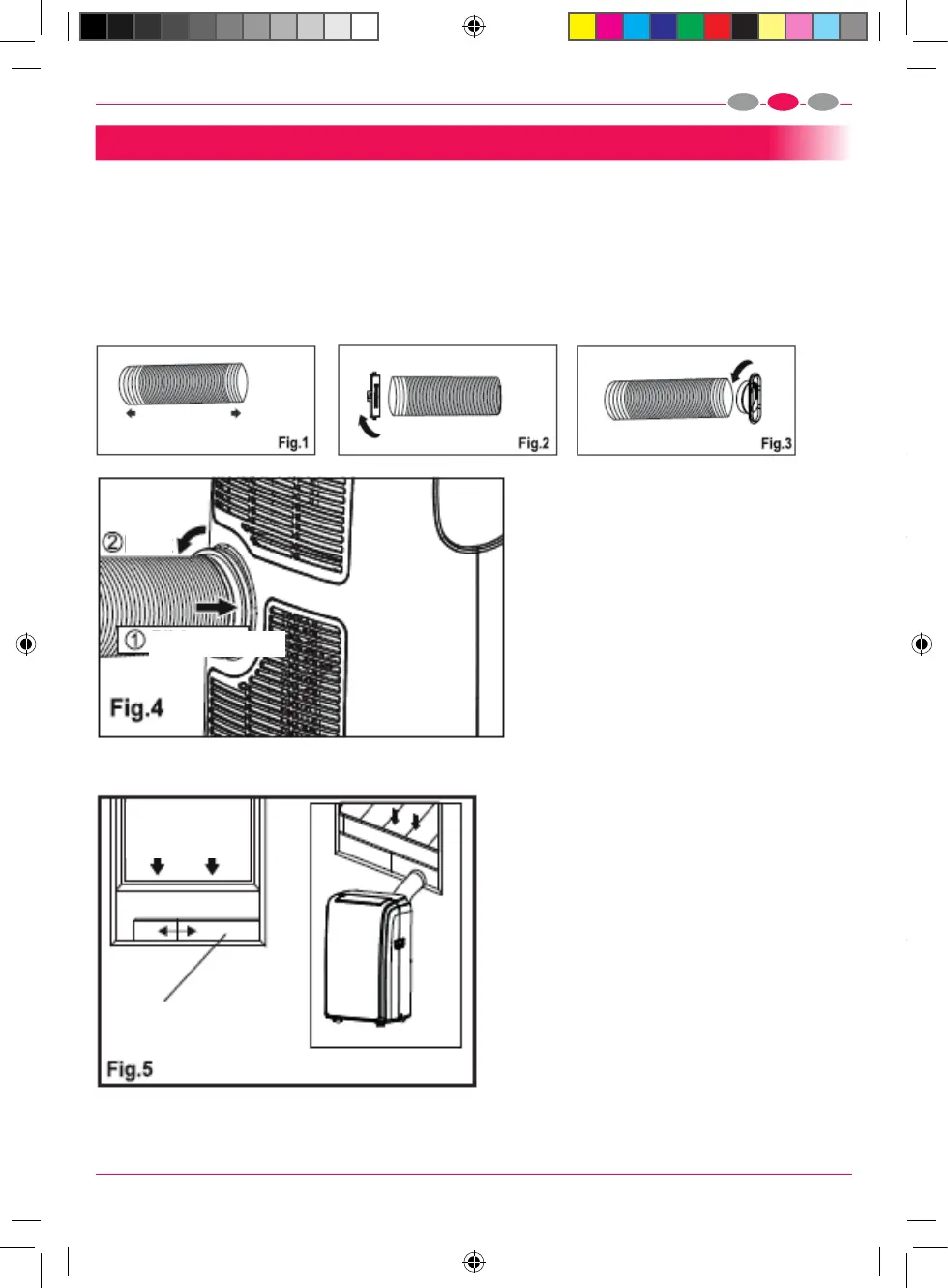

1 Unfold one end of the tube (Fig. 1) and screw it onto the tube input section (Fig. 2).
2 Unfold the other end of the tube and screw it onto the tube outlet section (Fig. 3).
3 Fit the tube input section onto the unit (Fig. 4).
Extendthesideofhose
Lock
Slide in
4 Attachthetubeexitsectiontotheslidingwindowkitandsealit(Fig.5and6).
Vertical window
Lock in place
Sliding section
Horizontal
window
Yoursliding
necessary
screws.
NOTE: If the window you are using is shorter/narrower than the minimum length of the sliding window kit, you can cut it on
theside
INSTALLATION OF SLIDING WINDOW KIT
1. Assembly:
Slide panel A into panel B and adjust to the width of the window. Window sizes vary. When adjusting the width, ensure that
there are no gaps in the sliding window kit as you are taking measurements.
Manual_Snowair7C-9C-9CP-12C-12CP_2021.indd 32Manual_Snowair7C-9C-9CP-12C-12CP_2021.indd 32 25/01/21 11:3325/01/21 11:33
